Запчасти Case 475 (106) - R24324 HYDROSTATIC PUMP, VIBRATOR DRIVE (21) - TRANSMISSION

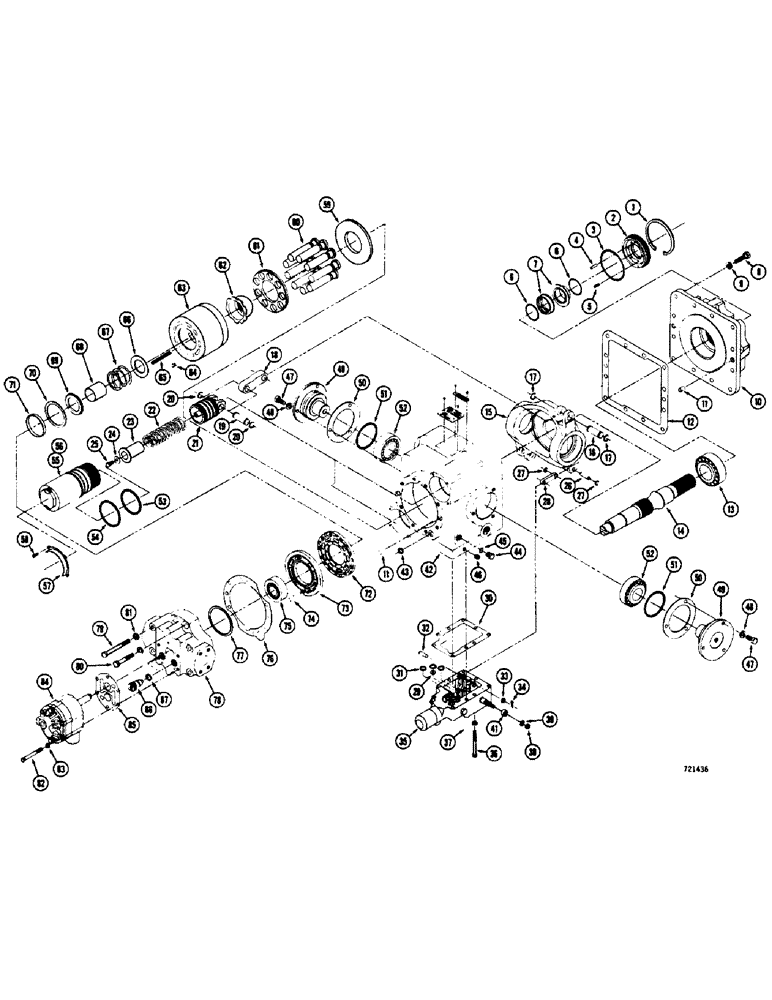

Схема запчастей Case 475 - (106) - R24324 HYDROSTATIC PUMP, VIBRATOR DRIVE (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

R24324

PUMP

- hydrostatic, variable displacement (Sundstrand #20-2021)

1шт.

R29533

SEAL KIT

KIT - seal

1шт.

1

F23160

RING

- retaining

1шт.

2

F23159

RETAINER

- seal

1шт.

3

F23158

O-RING

SEAL - "O" ring

1шт.

4

F23157

AXLE PIN

PIN - grooved

1шт.

5

F23156

SPRING

- seal retaining

6шт.

6

R26322

O-RING

SEAL - "O" ring

2шт.

7

F89258

SEAL

KIT

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

11шт.

9

F23114

WASHER

- special

11шт.

10

R26308

COVER - front

1шт.

11

F23124

AXLE PIN

PIN - dowel

4шт.

12

R26309

GASKET

- front cover

1шт.

13

R26254

BEARING

ASSEMBLY - rear

1шт.

14

R26290

SHAFT

- pump

1шт.

15

R26288

PLATE - swing, variable

1шт.

16

R30954

PIN

-, Serial Range: plate-link

2шт.

17

R29526

RING

- retaining

4шт.

R29530

PISTON ASSY.

KIT - piston, servo

1шт.

18

R26295

LINK, Serial Range: --piston

2шт.

19

R26317

PIN

-, Serial Range: link-piston

2шт.

20

R29526

RING

- retaining

4шт.

21

R29546

PISTON

- servo

2шт.

22

R26282

SPRING

- servo piston

2шт.

23

R26283

GUIDE

- spring

2шт.

24

R26319

WASHER - special

2шт.

25

166-3

12 PT SCREW,Flg, 1/4" - 20 x 5/8", Gr 8

SCREW - flanged, socket head (1/4" - 20 NC x 5/8")

2шт.

26

F23149

AXLE PIN

PIN -, Serial Range: link-plate

1шт.

27

R26314

SNAP RING,#25, Ext, E-Type

Ring, Retaining, #25, Ext, E-Type

2шт.

28

R26259

LINK

-, Serial Range: plate-valve

1шт.

29

F23134

PLUG

- valve

1шт.

R29534

KIT

- control valve

1шт.

30

R26263

GASKET

- valve

1шт.

31

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring

3шт.

32

F23135

PIN

-, Serial Range: link-valve

1шт.

33

A22354

WASHER

- plain

1шт.

34

132-4

PIN - cotter, 1/16" x 7/16"

1шт.

35

R29528

CONTROL VALVE

VALVE ASSEMBLY - control

1шт.

36

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

9шт.

37

A22354

WASHER

- special

9шт.

38

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., 1/4" - 20 NC

1шт.

39

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

40

RESERVED

1шт.

41

F23132

SPACER

- lever

1шт.

42

R26302

HOUSING - pump

1шт.

43

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

44

9672438

PLUG,7/16" - 20 ORB

- hex., head (1/8" NPT)

1шт.

45

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

46

F23137

PLUG

- special

1шт.

47

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

48

F23187

WASHER

- special

6шт.

49

R26256

BEARING

TRUNNION - bearing retaining

2шт.

50

R26307

GASKET

SET - trunnion

2шт.

51

R26311

O-RING

SEAL - "O" ring

2шт.

52

R26255

BEARING

ASSEMBLY - trunnion

2шт.

R29535

KIT

- servo sleeve

1шт.

53

R26323

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

54

R26324

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

55

F23215

PLUG

- cylinder end

4шт.

56

26325

SLEEVE - cylinder, servo

2шт.

57

R26297

RETAINER

- sleeve

2шт.

58

R26316

SCREW

- special

4шт.

59

R29527

PLATE

- thrust

1шт.

R30955

KIT

- block, cylinder

1шт.

60

R30959

PISTON

9шт.

61

R26300

RETAINER - piston

1шт.

62

R26299

GUIDE

- retainer

1шт.

63

R26292

CYLINDER BLOCK

1шт.

64

F23203

PIN

- guide

1шт.

65

R26304

SPRING

- retaining

9шт.

66

R26305

SEAT - spring

1шт.

67

R30958

SPRING

- cylinder blank

1шт.

68

R26306

GUIDE

- spring

1шт.

69

R26291

RETAINER - spring

1шт.

70

R26320

RING - retaining

1шт.

71

R26303

PILOT - bearing plate

1шт.

72

R26289

PLATE

- bearing support, front

1шт.

73

R26296

PLATE

- bearing support, rear

1шт.

74

R26312

PIN - alignment

1шт.

75

R26253

BEARING

ASSEMBLY - front

1шт.

76

R26298

GASKET

- end cap

1шт.

77

R26293

SHIM

1шт.

78

R26270

CAP - pump mounting

1шт.

79

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

80

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

81

F23114

WASHER

- special

7шт.

R29532

KIT

- pump. charging

1шт.

82

R26321

BOLT - special

4шт.

83

A22354

WASHER

- special

4шт.

84

R26310

PUMP, HYDRAULIC

PUMP ASSEMBLY - charging

1шт.

85

R26262

GASKET

- pump

1шт.

86

F89256

VALVE, CHECK

VALVE - check

2шт.

87

F23111

O-RING

SEAL - "O" ring

2шт.

Выбрано товаров: 94
