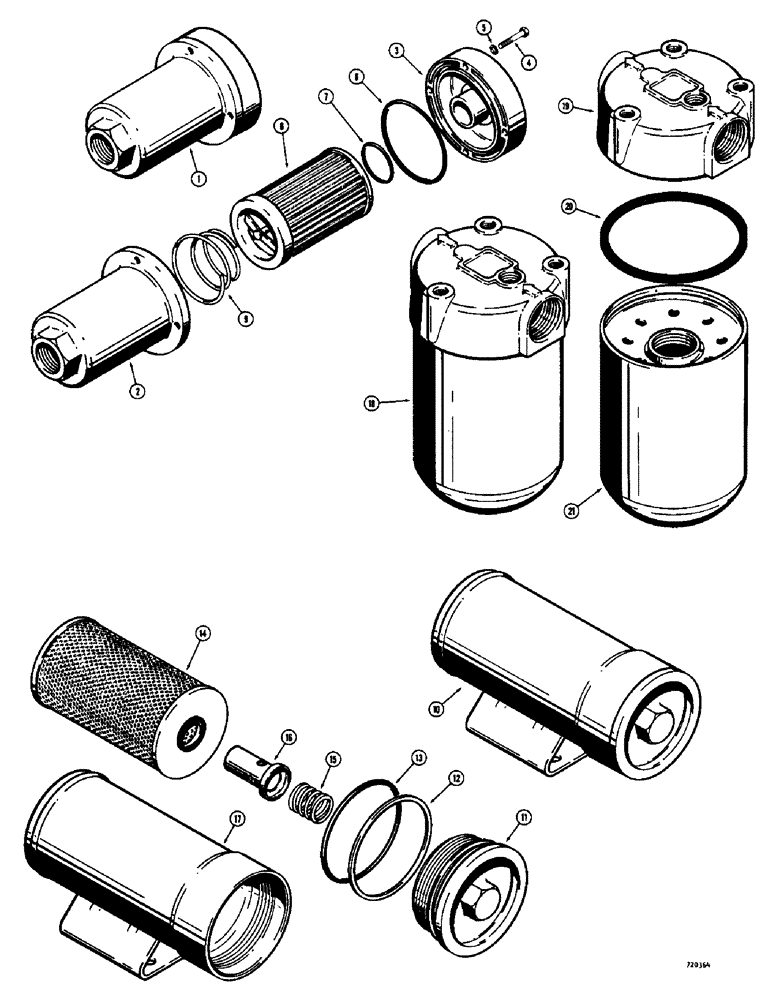

Запчасти Case 475 (104) - D35144 TRANSMISSION OIL FILTER, (SUCTION LINE) (21) - TRANSMISSION

1

D35144

FILTER

FILTER - transmission oil

1шт.

2

D37033

HOUSING

- filter

1шт.

3

D37034

HEAD

- filter

1шт.

4

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

SEAL - "O" ring, housing

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring, element

1шт.

8

D37035

FILTER, ELEMENT

ELEMENT - filter

1шт.

9

D37036

SPRING

- element

1шт.

10

D46132

FILTER

- transmission oil, D46132 (pressure line)

1шт.

11

D31214

CAP

- filter, D46132 transmission oil (pressure line)

1шт.

A62871

ELEMENT

KIT - filter, D46132 transmission oil (pressure line)

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D46132 Transmission oil filter (Pressure line)

1шт.

13

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, D46132 transmission oil filter (pressure line)

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - filter (Order A62871 kit for service), D46132 transmission oil (pressure line)

1шт.

15

D31212

SPRING

- retaining, D46132 transmission oil filter (pressure line)

1шт.

16

D37207

VALVE

- relief, D46132 transmission oil filter (pressure line)

1шт.

17

D46130

HOUSING

BODY - filter, D46132 transmission oil (pressure line)

1шт.

18

R25511

FILTER CARTRIDGE

FILTER ASSEMBLY - hydraulic, R25511 Hydraulic oil

2шт.

19

R25511

FILTER CARTRIDGE

CAP - filter (Replaces R29825), R25511 Hydraulic oil

1шт.

R25844

FILTER

ELEMENT ASSEMBLY - filter, R25511 Hydraulic oil

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - square, R25511 Hydraulic oil filter

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - filter, R25511 Hydraulic oil

1шт.
