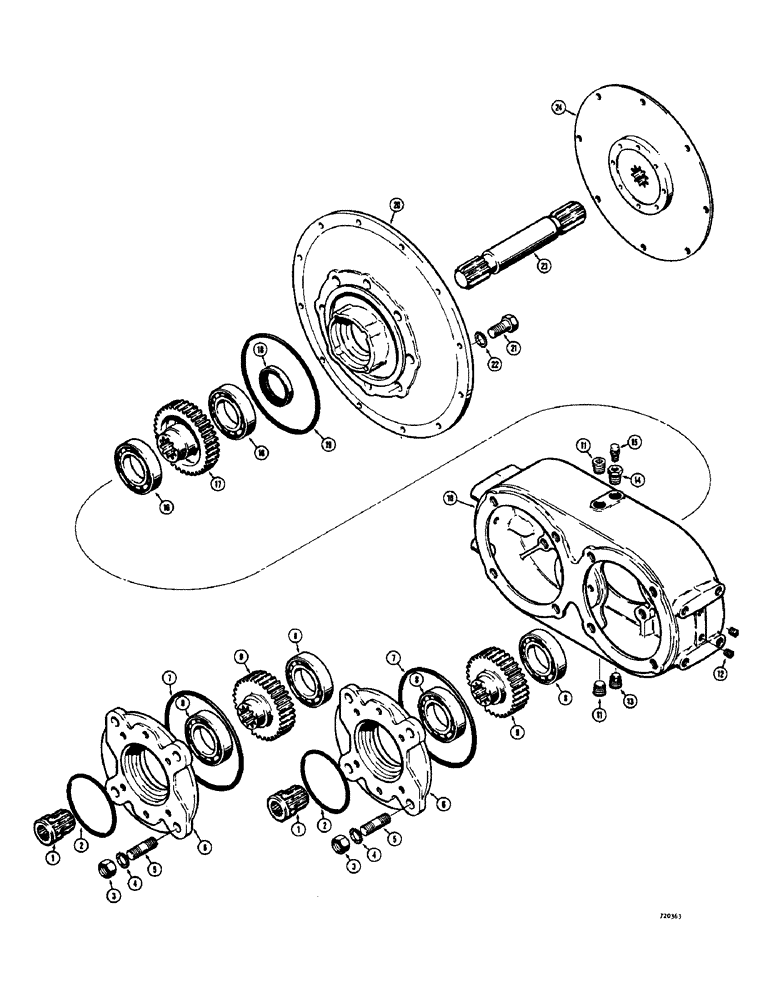

Запчасти Case 475 (100) - R24321 DOUBLE PUMP DRIVE, (SPLITTER BOX) (21) - TRANSMISSION

R24321

DRIVE ASSY.

BOX - double pump drive

1шт.

1

R26087

SLEEVE

- adapter

2шт.

2

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

SEAL - "O" ring, pump

2шт.

3

25-1012

NUT,3/4"-10, G5

8шт.

4

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

8шт.

5

R26096

STUD - 3/4" - 10 NC x 2-1/4"

8шт.

6

W13504

PLATE

ADAPTER - hydrostatic pump

2шт.

7

R26093

O-RING

SEAL - "O" ring, adapter

2шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING ASSEMBLY - ball

4шт.

9

R26094

GEAR

- driven, pump

2шт.

10

R26089

CASE

HOUSING - pump drive

1шт.

11

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - sq. socket head (1/2" NPT)

7шт.

12

221-841

PLUG

- hex. socket head (1/4" NPT)

4шт.

13

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic Hex Soc, 1/2" NPT

1шт.

14

221-54

BUSHING

- reducing (1/2" NPT - 1/8" NPT)

1шт.

15

D40582

X

VALVE - breather

1шт.

16

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING ASSEMBLY - bail

2шт.

17

R26088

PINION

GEAR - drive, pinion

1шт.

18

VT2090

OIL SEAL

- oil

1шт.

19

R26093

O-RING

SEAL - "O" ring, flywheel cover

1шт.

20

R26092

COVER ASSY

COVER - flywheel

1шт.

21

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

22

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

23

R26091

SHAFT

- drive, gear

1шт.

24

R26090

PLATE

-, Serial Range: drive,-flywheel

1шт.

Ref. 24 use P/N 121-205 Bolt to attach the Flywheel.

1шт.
