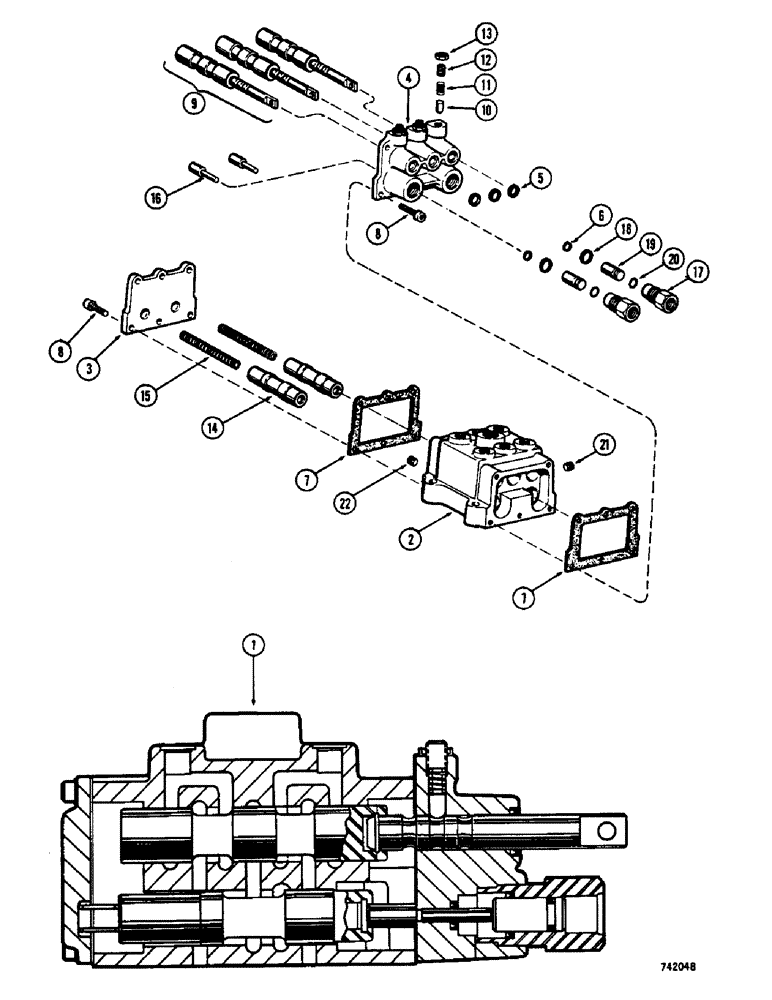

Запчасти Case 475 (098) - R20724 TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

1

R20724

VALVE

ASSY. - control (3 spool)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve (Order R20724)

1шт.

3

R21384

COVER

- valve, rear

1шт.

4

R13941

COVER ASSY

. - valve, front

1шт.

5

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft, 5/8 x 13/16 x 3/32"

3шт.

6

51200266

SEAL

- shaft, 1/4 x 1/2 x 1/8"

2шт.

7

35665

GASKET

- cover, front & rear

2шт.

8

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - 1/4 x 2-5/8" N.F. Sems

11шт.

9

G107659

ROD

SPOOL ASSY. - valve shift

3шт.

10

71120

VALVE

DETENT - valve shift

3шт.

11

71119

SPRING

- detent

3шт.

12

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, 3/8 x 1/2" N.C., hex. sckt. headless

3шт.

13

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

14

74916

SPOOL

ASSY. - brake valve

2шт.

15

71125

SPRING

- brake valve

2шт.

16

71141

ROD

- push, brake valve

2шт.

17

A50455

HOUSING

ASSY. - brake valve piston

2шт.

18

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing, 5/8 x 13/16 x 3/32"

1шт.

19

A50457

PISTON

- brake valve

2шт.

20

51200265

RING

- quad, 27/64 x 5/8 x 7/64"

2шт.

21

221-1849

PLUG

- 1/8" P.T., hex. sckt. hd.

2шт.

22

221-42

X,Sltd, 1/4" NPT

PLUG - 1/4" P.T. sltd., headless

1шт.
