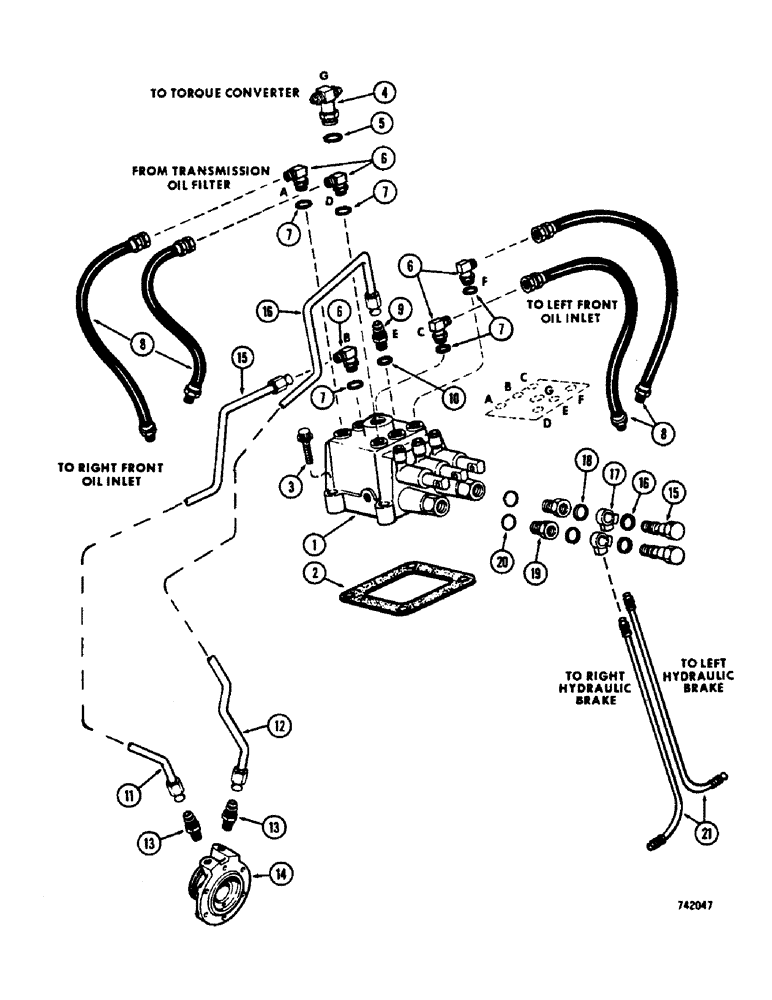

Запчасти Case 475 (096) - TRANSMISSION HYDRAULICS (21) - TRANSMISSION

1

R20724

VALVE

ASSEMBLY - control (Parts list Fig. 98)

1шт.

2

A50113

GASKET

- valve to transmission case

2шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SCREW - 12 pt. socket head, 3/8" - 16 NC x 2"

4шт.

4

A50356

FITTING

TEE ASSEMBLY - valve inlet

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" RING, 3/4" x 1-1/8" x 3/32"

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees, adjustable

5шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

- Valve, Front (19-1/2" long)

4шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

11

A54112

TUBE

- valve elbow to cover (Forward)

1шт.

12

A50471

TUBE

- valve connector to cover (Reverse)

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - tubes to cover (1/4" NPT)

2шт.

14

A50578

COVER

- forward/reverse & PTO shaft

1шт.

15

A12864

BOLT

- brake tube connection

2шт.

16

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer (39/64" I.D. x 13/16" O.D.)

2шт.

17

51200243

FITTING

FITITNG - brake line hydraulics

2шт.

18

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner (33/64" I.D. x 13/16" O.D.)

2шт.

19

72125

ADAPTER

- straight

2шт.

21

A50358

TUBE

- valve to L.H. and R.H. brake cylinders

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, 41/64" x 5/64" x 5/64"

2шт.
