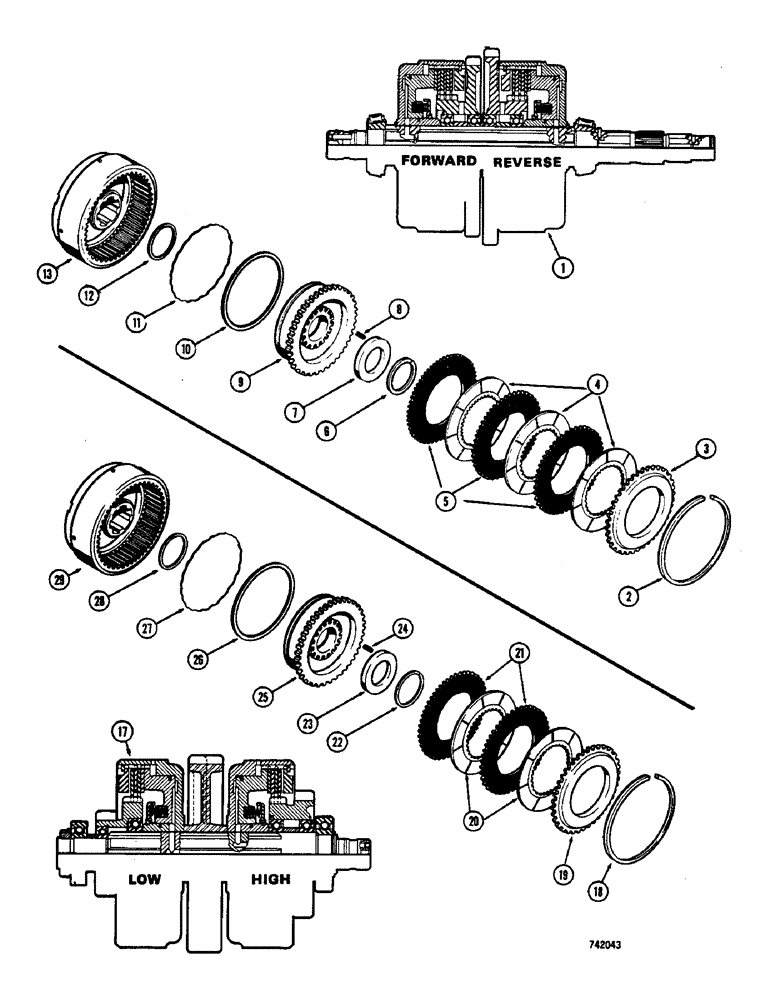

Запчасти Case 475 (088) - TRANSMISSION FORWARD AND REVERSE CLUTCH (21) - TRANSMISSION

1

A50411

CLUTCH

ASSEMBLY

2шт.

2

30785

RING

- snap, backing plate retaining

1шт.

3

A50030

PLATE

- clutch backing

1шт.

4

A50029

PLATE

DISC - clutch (Sintered) (Internal teeth)

3шт.

5

A50028

PLATE

DISC - clutch (Steel) (External teeth)

3шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

A51825

SPRING

- clutch

18шт.

9

A50571

PISTON

- clutch

1шт.

10

A50414

SEALING RING

RING - sealing, piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, drum hub

1шт.

13

A50290

DRUM

- clutch

1шт.

14

RESERVED

1шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

17

A50412

CLUTCH

ASSEMBLY, transmission high and low

4шт.

18

30785

RING

- snap, backing plate retaining, transmission high and low clutch

1шт.

19

A50030

PLATE

- clutch backing, transmission high and low

1шт.

20

A50029

PLATE

DISC - clutch (Sintered) (Internal teeth), transmission high and low

2шт.

21

A50028

PLATE

DISC - clutch (Steel) (External teeth), transmission high and low

2шт.

22

A27233

RING

- snap, spring retainer, transmission high and low clutch

1шт.

23

R11016

RETAINER

- clutch spring, transmission high and low

1шт.

24

A51825

SPRING

- clutch, transmission high and low

18шт.

25

A50571

PISTON

- clutch, transmission high and low

1шт.

26

A50414

SEALING RING

RING - sealing, piston, transmission high and low clutch

1шт.

27

A50416

SPRING

EXPANDER - piston ring, transmission high and low clutch

1шт.

28

A50415

SEAL

RING - sealing, drum hub, transmission high and low clutch

1шт.

29

A50288

DRUM

- clutch, transmission high and low

1шт.
