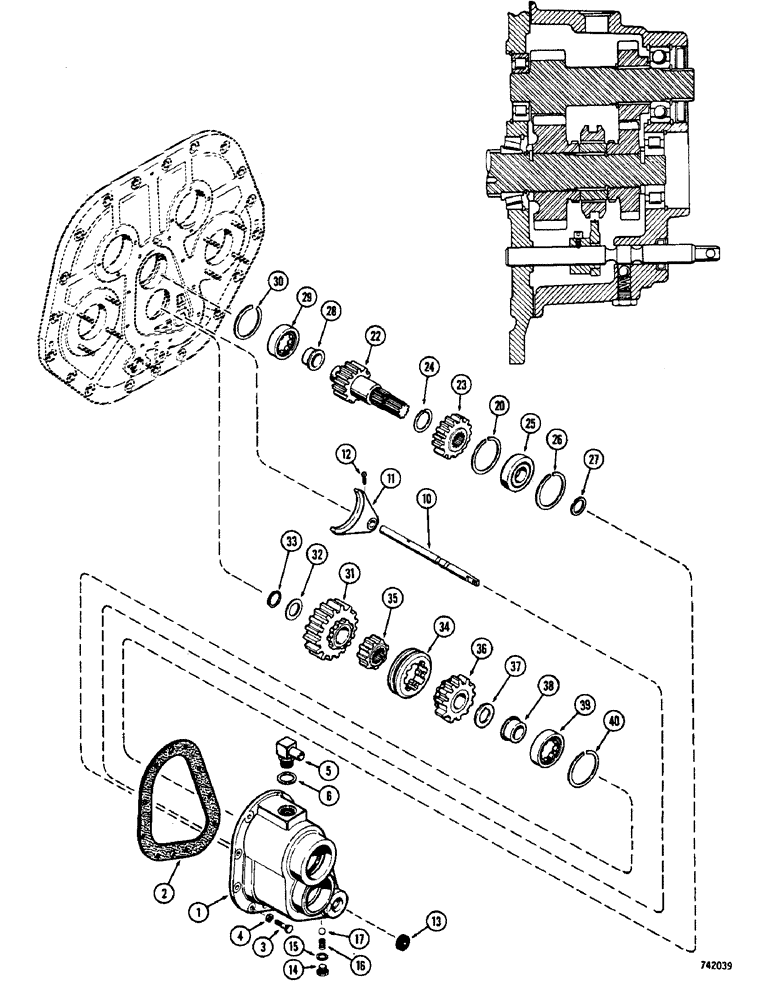

Запчасти Case 475 (082) - TRANSMISSION MECHANICAL RANGE SHIFT (21) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (See Fig. 78 for service)

1шт.

2

A50269

GASKET

- shift housing to front cover

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - 3/8" x 1-1/4" NC, 12 pt, ferry head (3/8" - 16 NC x 1-1/4")

9шт.

4

A22317

WASHER

- 25/64 x 11/16 x 3/64" copper

9шт.

5

A50357

ELBOW

ASSY. oil return, 90 degrees

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 59/64" x 3/4" x 7/64"

1шт.

7

RESERVED

1шт.

8

RESERVED

1шт.

9

R10831

ELECTRICAL WIRE

WIRE - tie (Not shown)

1шт.

10

A51886

SHAFT

- range selector

1шт.

REF: #10 - A51886 - shaft - this shaft is no longer available. order G107672 shaft and fork.

1шт.

11

A51469

FORK

- range selector (Replaces A50080)

1шт.

REF: #11 - A51469 - fork - this fork is no longer available. order G107672 shaft and fork.

1шт.

12

A7044

SET SCREW,3/8" - 16 x 7/8"

-, Serial Range: fork-shaft

1шт.

13

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector shaft (3/4 x 1-1/4 x 1/4")

1шт.

14

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - range selector detent cap

1шт.

15

A50093

SEALING WASHER

WASHER - detent cap screw

1шт.

16

A50092

SPRING

- selector detent

1шт.

17

211-13

BALL,1/2" Dia

- detent 1/2" Dia

1шт.

18

RESERVED

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

A54119

SHAFT

- range drive gear

1шт.

23

A50515

GEAR

- driver, input shaft

1шт.

24

A37626

SNAP RING,#137, 1.291", Ext

RING - snap, driver gear retaining

1шт.

25

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, drive shaft, front

1шт.

26

R13804

RING

- snap, bearing retaining, large

2шт.

27

A37626

SNAP RING,#137, 1.291", Ext

RING - snap, bearing retaining, inner

1шт.

28

A50077

BEARING CONE,1.1811" ID x 0.748"

RING - roller bearing (Inner)

1шт.

29

A50025

SEAL

BEARING - roller (Outer ring & rollers)

1шт.

30

A27417

RING

- snap, roller bearing retaining

1шт.

31

A50517

GEAR

- driven, rear (20 & 39 teeth)

1шт.

32

A50071

WASHER

- thrust, rear driven gear

1шт.

33

A26946

RING

- snap, rear driven gear retaining

1шт.

34

A51806

COLLAR

SLEEVE - range selector

1шт.

35

A50502

COLLAR

- range selector sleeve

1шт.

36

A50516

GEAR WHEEL

GEAR - driven, front

1шт.

37

A50333

WASHER

- thrust, front driven gear

1шт.

38

A50332

BEARING CONE,1.25" ID x 0.8268"

RING - roller bearing (Inner)

1шт.

39

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

BEARING - roller (Outer ring & rollers)

1шт.

40

R13804

RING

- snap, roller bearing retaining

1шт.
