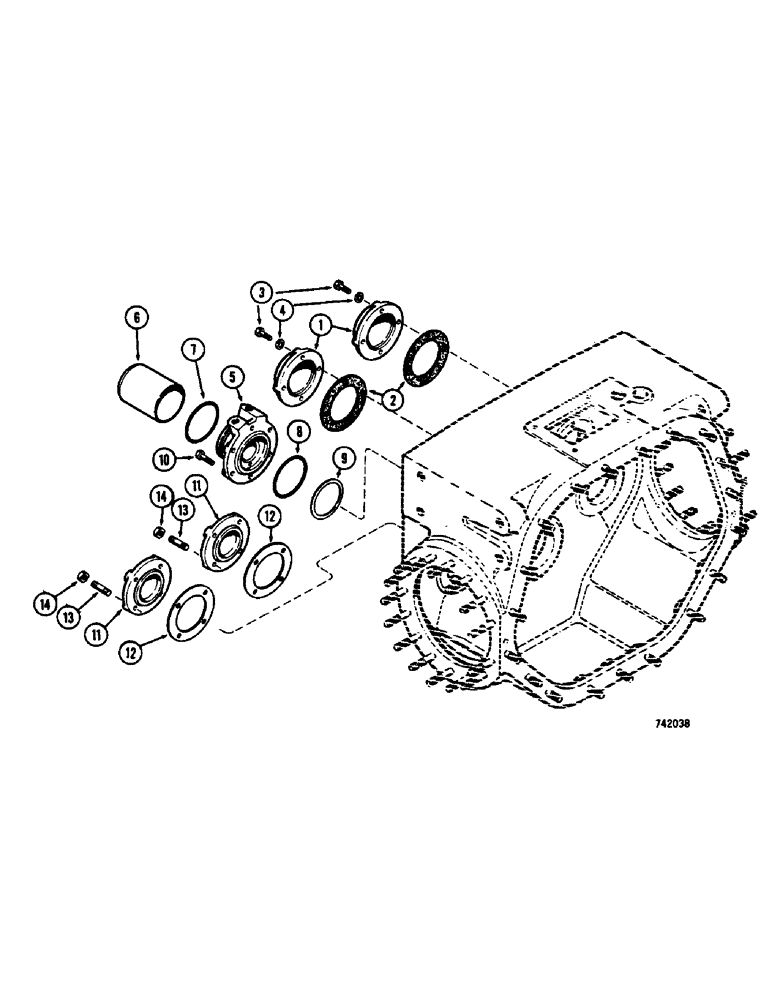

Запчасти Case 475 (080) - TRANSMISSION HOUSING REAR COVERS (21) - TRANSMISSION

1

A50060

COVER

- hi-low clutch shafts

2шт.

2

A50058

GASKET

- hi-low clutch covers

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

4

A22317

WASHER

- cover bolts (25/64" x 11/16" x 3/64" copper)

8шт.

5

A50578

COVER

- forward-reverse & P.T.O. shaft

1шт.

6

A54111

COVER

- P.T.O. shaft

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - 2-1/2" x 2-3/4" x 1/8"

1шт.

8

A50055

SEALING RING

RING - cover sealing (3-1/4" x 3-7/16" x 3/32" rubber)

1шт.

9

A50053

SHIM,.003" Thk

Cover .003" Thk

1шт.

9

40590

SHIM

- cover (.005")

1шт.

9

40591

SHIM

- cover (.010")

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

11

A51271

STUD

COVER - pinion shafts

2шт.

12

A50348

SHIM,.003" Thk

Cover .003" Thk

1шт.

12

A50272

SHIM,.005" Thk

Cover .005" Thk

1шт.

12

CASA50347

SHIM

- cover (.010")

1шт.

13

A50019

NO LONGER SERVICED

STUD - covers (3/8" - 16 NC x 1-1/2")

8шт.

14

25-106

NUT,3/8"-16, G5

- hex., 3/8" - NC

8шт.
