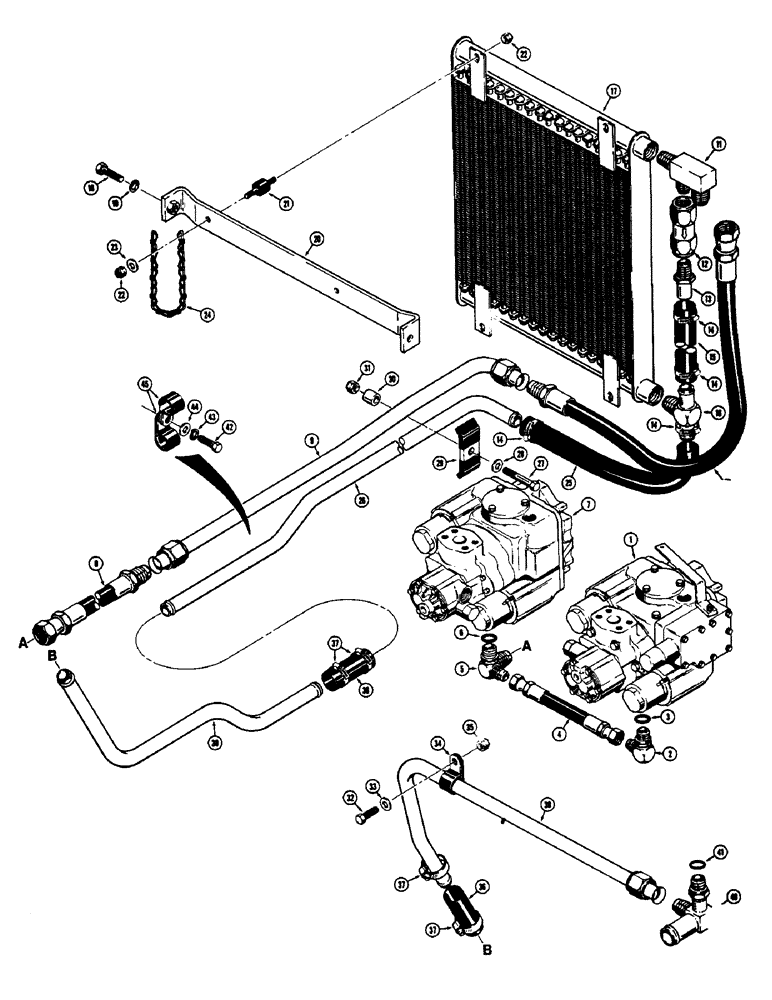

Запчасти Case 475 (076) - OIL COOLER HYDRAULICS (21) - TRANSMISSION

1

R24324

PUMP

- hydrostatic, cable plow (Parts list Fig. 106)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

R24246

HOSE ASSY.

HOSE - pump to pump (9" long)

1шт.

5

R24262

ELBOW UNION

TEE - special, adjustable

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

R25520

PUMP

- hydrostatic transmission (Part list Fig. 108)

1шт.

8

R24285

HOSE ASSY.

HOSE - at hydrostatic pump (24-1/64" long)

1шт.

9

R24283

TUBE -, Serial Range: hydraulic,-cooler

1шт.

10

R27701

HOSE ASSY.

HOSE - at cooler, 38" long

1шт.

11

R24280

MANIFOLD

- hydraulic oil

1шт.

12

R24281

LOCK VALVE

VALVE - bypass

1шт.

13

R14353

CONNECTOR, ELEC

STEM - hose, male

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, screw type

4шт.

15

D29446

HOSE ASSY.

HOSE - low pressure (1" I.D. x 14-1/2" long)

1шт.

16

R24282

TEE - special

1шт.

17

R24467

COOLER ASSY.

COOLER - hydraulic oil

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

R25574

BRACKET

- cooler mounting

2шт.

21

L11236

BOLT

BOLT - special, flex

4шт.

22

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

8шт.

23

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

24

35393

AXLE-SHAFT, ARTICULA

CHAIN - 12 gauge, 16" long

1шт.

25

D21237

LARGE HOSE

HOSE - low pressure (1" I.D. x 22" long)

1шт.

26

R24286

TUBE - to hydraulic tank

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

29

D40236

CLAMP

- tube

1шт.

30

D36524

BUSHING

SPACER - clamp

1шт.

31

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

34

R14668

CLAMP

- tube ("P" type)

1шт.

35

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

36

R12351

LARGE HOSE

HOSE - low pressure (1" I.D. x 4" long)

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, screw type

4шт.

38

R24287

TUBE - hydraulic

1шт.

39

R24288

TUBE - hydraulic, at valve (3 spool valve)

1шт.

39

R31506

TUBE - hydraulic, at valve (4 spool valve)

1шт.

40

R24275

ELBOW UNION

TEE - special (At control valve)

1шт.

41

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

1шт.

44

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

45

R14668

CLAMP

- tube ("P" type)

2шт.
