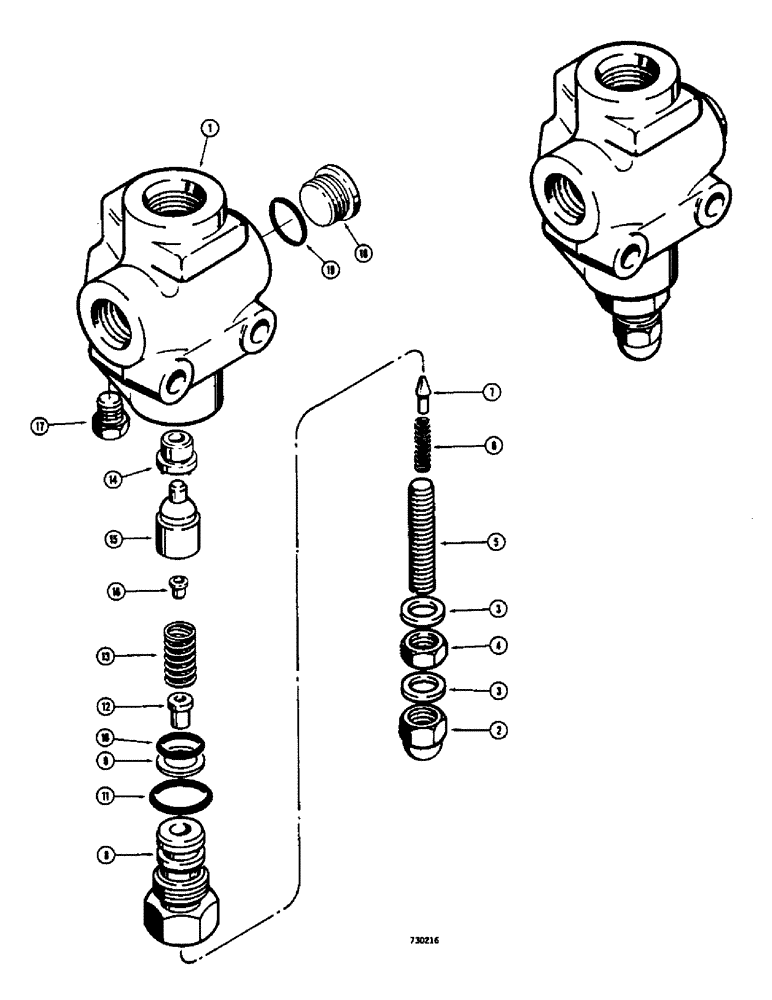

Запчасти Case 475 (075A) - VALVE (21) - TRANSMISSION

R24273

LOCK VALVE

VALVE - relief (Parker-Hannifin)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

195-514

NUT - acorn

1шт.

3

D26270

WASHER, SEALING

WASHER - special, stato-O-seal

2шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

5

R30257

SCREW - adjusting

1шт.

6

R30256

VALVE SPRING

SPRING - pilot

1шт.

7

R30254

PLUNGER - relief valve

1шт.

8

R30253

CAP - relier valve

1шт.

9

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

10

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O" ring, small

1шт.

12

D26266

SEAT

- plunger

1шт.

13

R30252

SPRING

- relief valve

1шт.

14

R30251

POPPET - relief valve

1шт.

15

D37063

SEAT

- poppet

1шт.

16

R30255

SLEEVE

1шт.

17

D52471

PLUG

- special

2шт.

18

86625138

PLUG,7/18" - 14

(5/8") Hex Soc, 7/8"-14 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.
