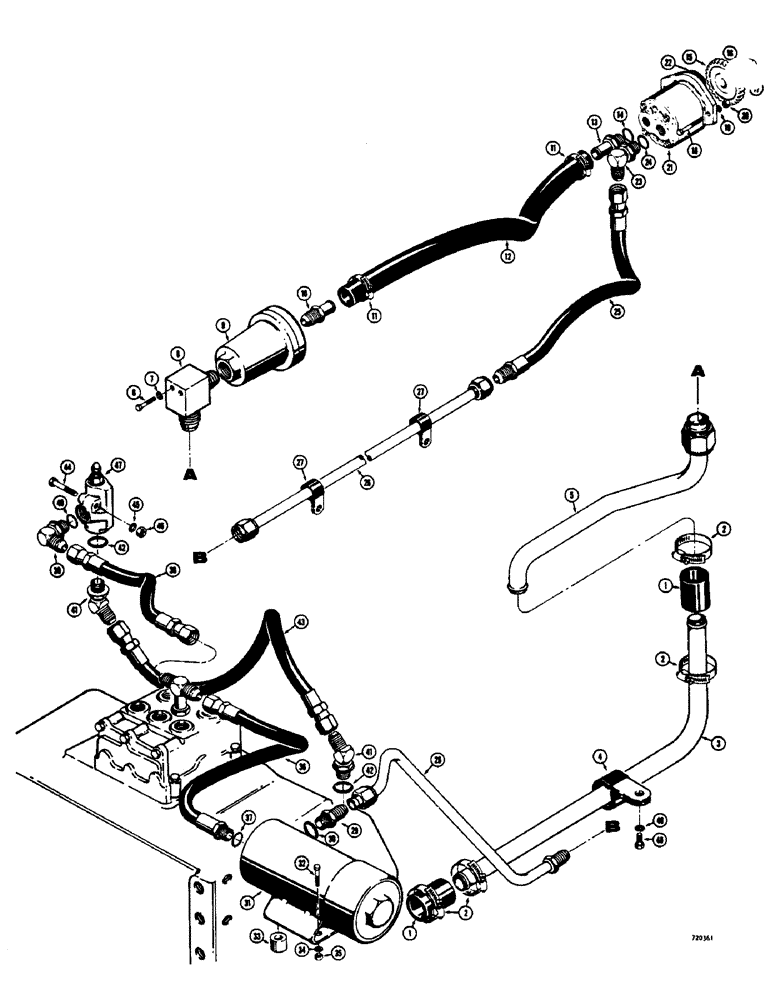

Запчасти Case 475 (074) - BASIC TRANSMISSION HYDRAULICS (21) - TRANSMISSION

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

screw type #24, 1.06/2.00 Type F Worm

4шт.

3

R24267

TUBE - hydraulic, at transmission

1шт.

4

D40471

CLAMP

- tube

1шт.

5

R24268

PIPE,1.25" OD

TUBE - hydraulic, at manifold

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

R24266

MANIFOLD - hydraulic

1шт.

9

D35144

FILTER

FILTER - transmission oil (Parts list Fig. 104)

1шт.

10

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM - hose, male

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, screw type

2шт.

12

R29835

HOSE

- low pressure (1" I.D. x 23-1/2" long)

1шт.

13

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

STEM - hose, male

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

L43703

GEAR

- pump drive

1шт.

16

L43842

KEY

- gear retaining

1шт.

17

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF)

1шт.

18

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

2шт.

19

195-25

WASHER,3/8"

- med. sect. lock () 3/8"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (3/8" - 16 NC)

2шт.

21

R25696

PUMP

- hydraulic, transmission charging (Parts list Fig. 102)

1шт.

22

A58617

GASKET

-, Serial Range: pump-motor

1шт.

23

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- adjustable, 90 degrees

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

37318

HOSE ASSY.

HOSE - pump to filter (16-1/2" long)

1шт.

26

R24270

TUBE

-, Serial Range: hydraulic,-filter

1шт.

27

49885

CLAMP

- tube

2шт.

28

R24842

TUBE

- hydraulic, at filter

1шт.

29

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male

1шт.

31

D46132

FILTER

- transmission oil (Parts list Fig. 104)

1шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

33

B18083

BUSHING

SPACER - filter mounting

4шт.

Another Spacer used, not a sub, P/N R32824 Spacers and P/N R32823 mounts.

1шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

36

D45617

HOSE

- filter to transmission valve (17" long)

1шт.

38

D25170

HOSE

- transmission valve to relief valve (11-3/4" long)

1шт.

39

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj. 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

R15843

HOSE ASSY.

HOSE - relief valve to hydrostatic valve (17" long)

1шт.

44

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

HHCS - 5/8" - 18 NC x 2-1/2"

2шт.

45

92-5

LOCK WASHER,5/16"

2шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/8" - 18 NC

2шт.

47

R24273

LOCK VALVE

VALVE - relief, parts list Fig. 75A

1шт.

48

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
