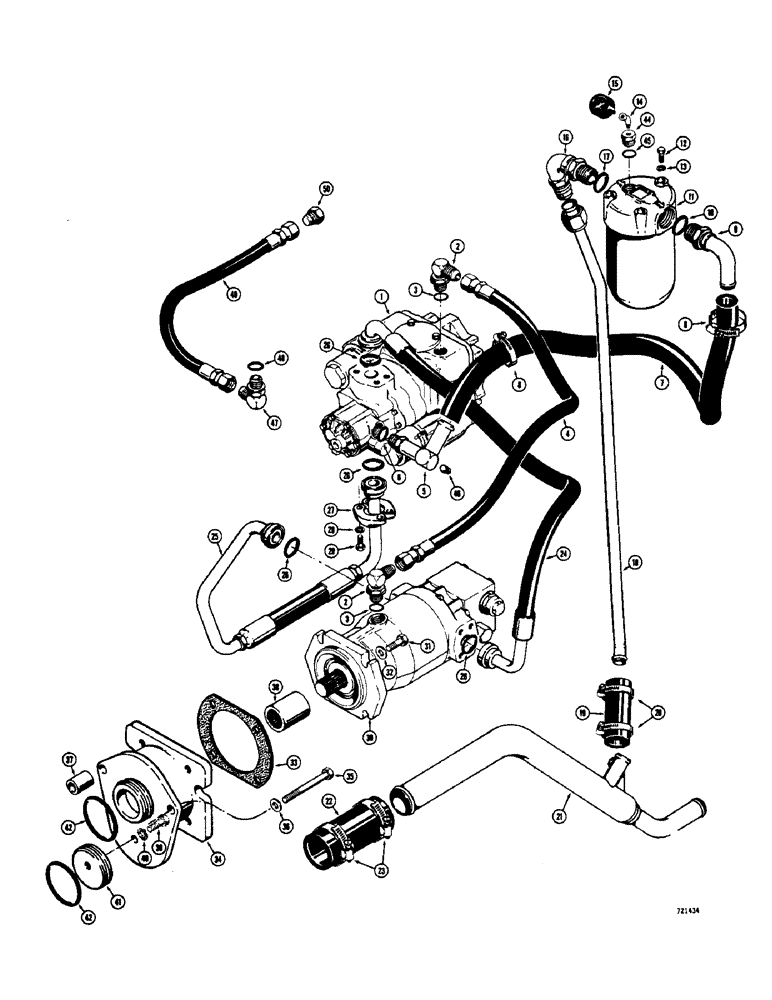

Запчасти Case 475 (072) - HYDROSTATIC HYDRAULICS AND MOTOR MOUNTING (21) - TRANSMISSION

1

R25520

PUMP

ASS'Y - hydrostatic (Parts list Fig. 108)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, adjustable

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

R24260

HOSE

- pump to motor, upper (21-1/2" long)

1шт.

5

R24253

ELBOW - 90 degrees, hose stem

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

R29836

FLEXIBLE HOSE

HOSE - low pressure (1" I.D. x 21-1/4" long)

1шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

screw type #28, 1.31/2.25 Type F Worm

2шт.

9

R25134

TUBE ASSY.

TUBE - at filter

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

11

R25511

FILTER CARTRIDGE

FILTER ASSEMBLY - hydraulic (Parts list Fig. 104)

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 45 degrees, street

1шт.

15

R29792

GAUGE ASSY.

GAUGE - oil pressure, filter

1шт.

16

R25137

TUBE ASSY.

TUBE - at filter

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

R24249

TUBE - filter to hydraulic tank

1шт.

19

D36798

HOSE

- low pressure (10-5/8" long x 1" I.D.)

1шт.

20

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

screw type #28, 1.31/2.25 Type F Worm

2шт.

21

R24254

MANIFOLD

- hydraulic oil

1шт.

22

R24841

HOSE ASSY.

HOSE - low pressure (6-1/2" long x 2" I.D.)

1шт.

23

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, screw type

2шт.

24

R24259

HOSE

ASSEMBLY - top of pump to R.H. side of motor

1шт.

25

R24801

HOSE

ASSEMBLY - bottom of pump to L.H. side of motor

1шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

27

NLS

NO LONGER SERVICED

FLANGE - split

8шт.

28

92-6

LOCK WASHER,3/8"

16шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

30

R25521

MOTOR, HYDRAULIC

MOTOR - hydrostatic, Sunstrand #22-3031 (Parts list Fig. 110)

1шт.

30

R33749

MOTOR, HYDRAULIC

MOTOR - hydrostatic, Sunstrand #23-3028 (Parts list Fig. 111C)

1шт.

31

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

32

R24323

WASHER

- special, hardened

4шт.

33

R24334

GASKET

-, Serial Range: pump-adapter

1шт.

34

R24326

ADAPTER -, Serial Range: pump-transmission

1шт.

35

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

36

92-8

LOCK WASHER,1/2"

2шт.

37

R24325

SPACER

- adapter

2шт.

38

R24333

COUPLING

-, Serial Range: pump-transmission

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-8

LOCK WASHER,1/2"

1шт.

41

R24332

HUB CAP

BOSS - adapter

1шт.

42

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

43

RESERVED

1шт.

44

R26251

ADAPTER - special

1шт.

46

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. head (1/8" NPT)

1шт.

47

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degrees, adjustable

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

D95111

HOSE

- flow test, 23" long

1шт.

50

218-772

PLUG,7/16"-20, 37 Degree

- hex. head (1/4")

1шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
