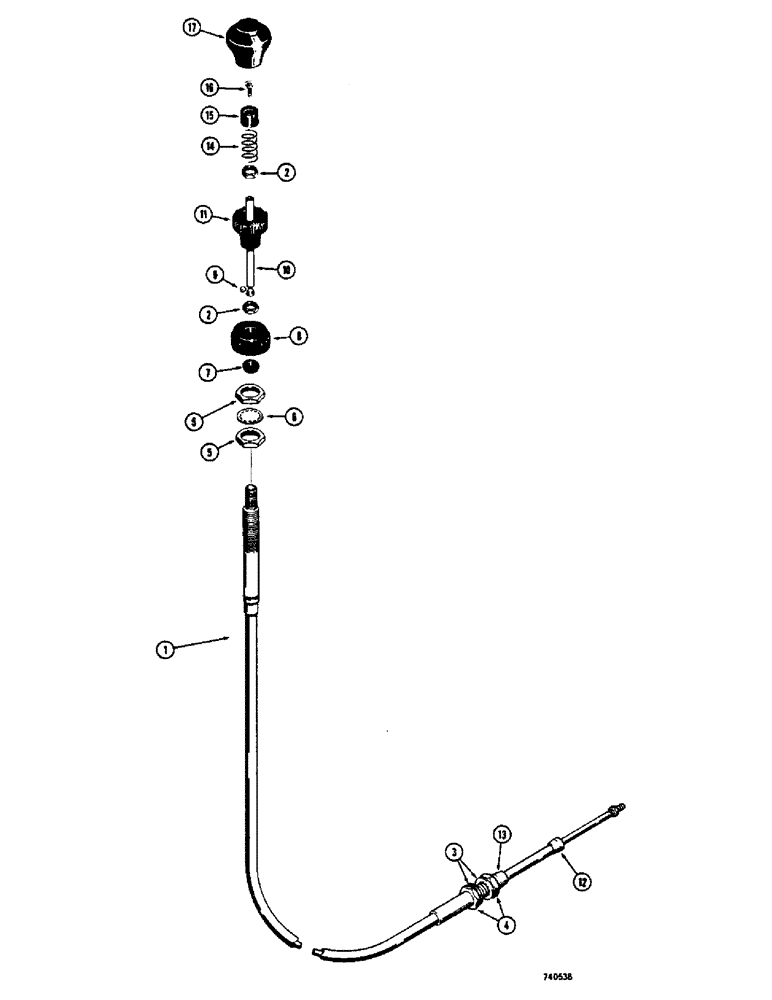

Запчасти Case 475 (071A) - R24416 TRANSMISSION PUMP CONTROL CABLE (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
R24416
CABLE PULLING GRIP
CABLE - transmission control, 82" long
1шт.
1
NSS
NOT SOLD SEPARAT
CABLE AND HOUSING
1шт.
2
129-661
NUT
- hex. (#10 - 32 NF)
2шт.
3
195-529
WASHER,7/16", SAE
- plain (7/16") Plated
2шт.
4
129-164
JAM NUT,Hex, 7/16" - 20, Gr 5
Jam, 7/16"- 20, G5
2шт.
5
129-168
JAM NUT,Jam, 3/4"-10, G5
- hex., jam (3/4" - 16 NF) Plated
2шт.
6
193-61
LOCK WASHER,Int Tooth, 3/4"
WASHER, LOCK, Int Tooth, 3/4"
1шт.
7
L32236
SEAL
- sleeve
1шт.
8
L32235
RETAINER
- seal
1шт.
9
211-4
BALL
- steel (5/32" dia.)
1шт.
10
L32239
ROD
- release
1шт.
11
NSS
NOT SOLD SEPARAT
KNOB - control
1шт.
12
L32691
SEAL - wiper
1шт.
13
L32690
SEAL
SEAL - sleeve
1шт.
14
L32234
SPRING
- release button
1шт.
15
L32233
BUTTON
- release
1шт.
16
171-245
SCREW,Cross Flat Hd, #8 - 32 x 1/2"
- Phillips head (#8 - 32 NC x 1/2") Plated
1шт.
17
L32232
BOOT
- rubber
1шт.
R24417
CABLE PULLING GRIP
CABLE - plow control, 74" long, R24417 pump control cable
1шт.
1
NSS
NOT SOLD SEPARAT
CABLE AND HOUSING, R24417 plow pump control cable
1шт.
2
129-661
NUT
- hex. (#10 - 32 NF), R24417 plow pump control cable
2шт.
3
195-529
WASHER,7/16", SAE
- plain (7/16") Plated, R24417 plow pump control cable
2шт.
4
129-164
JAM NUT,Hex, 7/16" - 20, Gr 5
Jam, 7/16"- 20, G5, R24417 Plow pump control cable
2шт.
5
129-168
JAM NUT,Jam, 3/4"-10, G5
- hex., jam (3/4" - 16 NF) Plated, R24417 plow pump control cable
2шт.
6
193-61
LOCK WASHER,Int Tooth, 3/4"
WASHER, LOCK, , R24417 plow pump control cable Int Tooth, 3/4"
1шт.
7
L32236
SEAL
- sleeve, R24417 plow pump control cable
1шт.
8
L32235
RETAINER
- seal, R24417 plow pump control cable
1шт.
9
211-4
BALL
- steel (5/32" dia.), R24417 plow pump control cable
1шт.
10
L32239
ROD
- release, R24417 plow pump control cable
1шт.
11
NSS
NOT SOLD SEPARAT
KNOB - control, R24417 plow pump control cable
1шт.
12
L32691
SEAL - wiper, R24417 plow pump control cable
1шт.
13
L32690
SEAL
SEAL - sleeve, R24417 plow pump control cable
1шт.
14
L32234
SPRING
- release button, R24417 plow pump control cable
1шт.
15
L32233
BUTTON
- release, R24417 plow pump control cable
1шт.
16
171-245
SCREW,Cross Flat Hd, #8 - 32 x 1/2"
- Phillips head (#8 - 32 NC x 1/2") Plated, R24417 plow pump control cable
1шт.
17
L32232
BOOT
- rubber, R24417 plow pump control cable
1шт.
Выбрано товаров: 36
