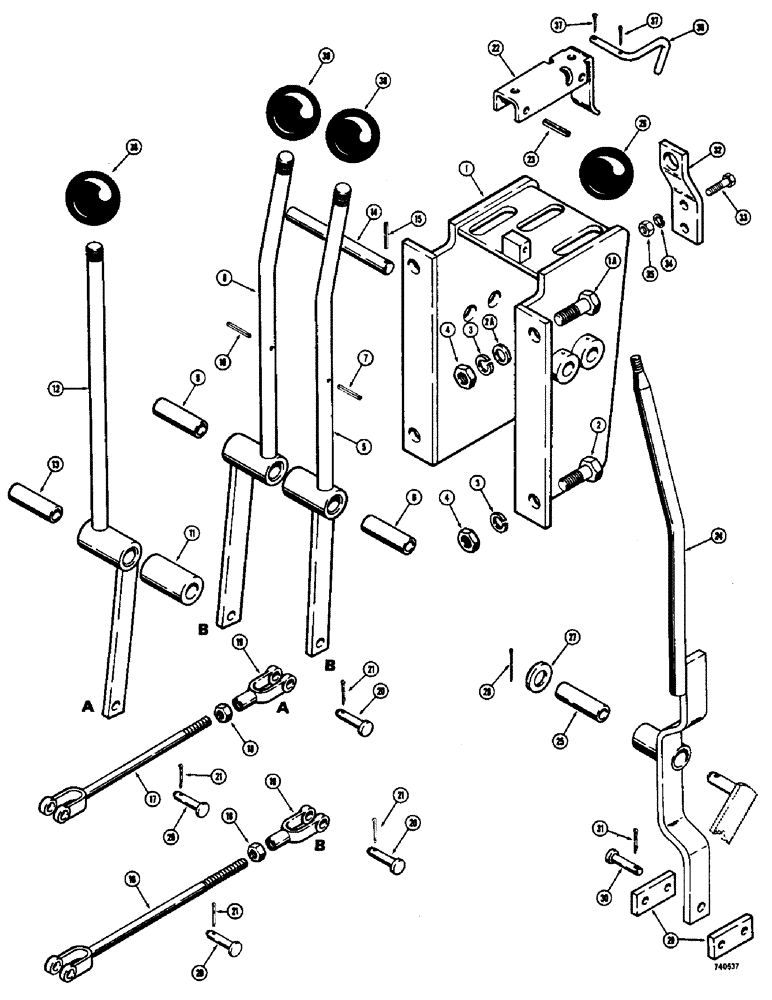

Запчасти Case 475 (069A) - TRANSMISSION CONTROL TOWER, LATE PRODUCTION, HAS HORIZONTAL MOUNTED STARTER BUTTON (21) - TRANSMISSION

1

R31299

TOWER - transmission control levers

1шт.

1a

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

2a

195-33

WASHER,1/2"

- flat () 1/2"

2шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

R31307

LEVER

- control, R.H. track (1/2" - 20 NF threads)

1шт.

6

R26338

BUSHING

- control lever

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

R31306

LEVER ASSY.

LEVER - control, L.H. track (1/2" - 20 NF threads)

1шт.

9

R26338

BUSHING

- control lever

1шт.

10

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

11

D34880

SLEEVE

- control lever

1шт.

12

D50240

LEVER

- control, forward and reverse (1/2" - 20 NF thread)

1шт.

13

R26338

BUSHING

- control lever

1шт.

14

D34898

SHAFT

- control levers

2шт.

15

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

16

R17963

ROD - control (R.H. and L.H. rear)

2шт.

17

R24415

ROD - control (Center)

1шт.

18

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (5/16" - 24 NF)

3шт.

20

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

6шт.

21

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

22

R31303

COVER

SAFETY LOCK

1шт.

23

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

24

R24418

LEVER - control, two speed

1шт.

25

R26338

BUSHING

- control lever

1шт.

26

70213

KNOB

1шт.

27

195-41

WASHER,5/8"

1шт.

28

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

29

R24426

LINK - two speed control, Serial Range: lever-transmission

2шт.

30

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

32

R31304

BRACKET

- mounting, starter switch

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

36

R31454

LOCK

- neutral lock

1шт.

37

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

38

D49996

KNOB

3шт.
