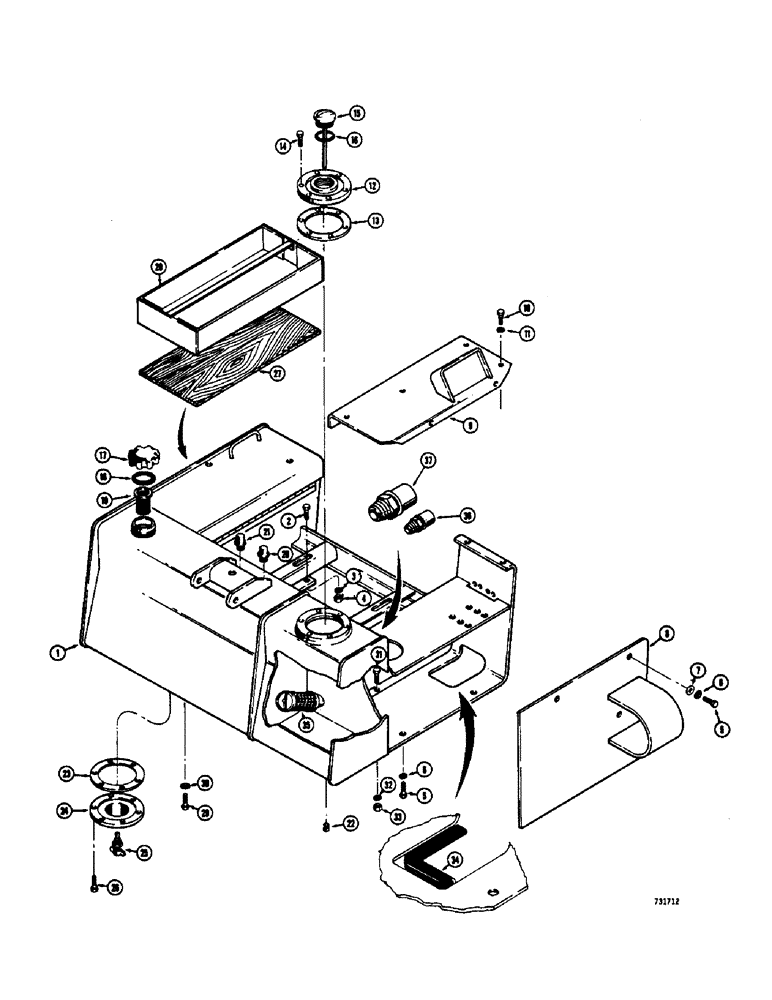

Запчасти Case 475 (120) - FUEL AND HYDRAULIC TANK ASSEMBLY (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R24308
TANK - fuel and hydraulic oil, 3 spool valve models
1шт.
1
R31443
FRAME
TANK - fuel and hydraulic oil, 4 spool valve models
1шт.
2
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
7шт.
3
92-8
LOCK WASHER,1/2"
7шт.
4
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 NC
7шт.
5
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
6
92-8
LOCK WASHER,1/2"
4шт.
7
195-33
WASHER,1/2"
- plain, 1/2"
4шт.
8
R24734
COVER
- side, R.H.
1шт.
9
R24304
COVER - top, R.H. (R24308 tank)
1шт.
9
R31522
COVER - top, R.H. (R31443 tank)
1шт.
10
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
3шт.
11
92-8
LOCK WASHER,1/2"
3шт.
12
D34977
CAP
- hydraulic tank
1шт.
13
D50547
GASKET,1.52mm Thk
- hydraulic tank
1шт.
14
D50550
BOLT
- special
6шт.
15
D34945
DIPSTICK
- hydraulic
1шт.
16
A7552
O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
17
D31747
COVER
CAP - fuel tank
1шт.
18
D34975
GASKET
SEAL - "O" ring, cap
1шт.
19
D36346
STRAINER ELEMENT
STRAINER - fuel
1шт.
20
D33028
VALVE
- relief, fuel tank
1шт.
21
D33027
BREATHER
VALVE - air inlet, fuel tank
1шт.
22
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, sq. head (1/2" NPT)
2шт.
23
D50547
GASKET,1.52mm Thk
- water trap
1шт.
24
D34979
COVER
TRAP - water
1шт.
25
217-81
VALVE
DRAINCOCK - fuel tank
1шт.
26
D50550
BOLT
- special
6шт.
27
D35022
GUARD
SHIELD - battery
1шт.
28
D50765
TOOL
BOX - tool
1шт.
29
13-814
BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd
Hex 1/2"-13 x 7/8", G5, Full Thd
1шт.
30
92-8
LOCK WASHER,1/2"
1шт.
31
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
2шт.
32
92-8
LOCK WASHER,1/2"
2шт.
33
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 NC
1шт.
34
D35424
LINING
TRIM - quickedge
1шт.
35
D33557
FILTER, ELEMENT
FILTER - suction line, hydraulic reservoir
1шт.
36
R15536
VALVE
- relief, hydraulic tank (If used)
1шт.
37
R15538
VALVE
- air inlet, hydraulic tank (If used)
1шт.
Выбрано товаров: 39
