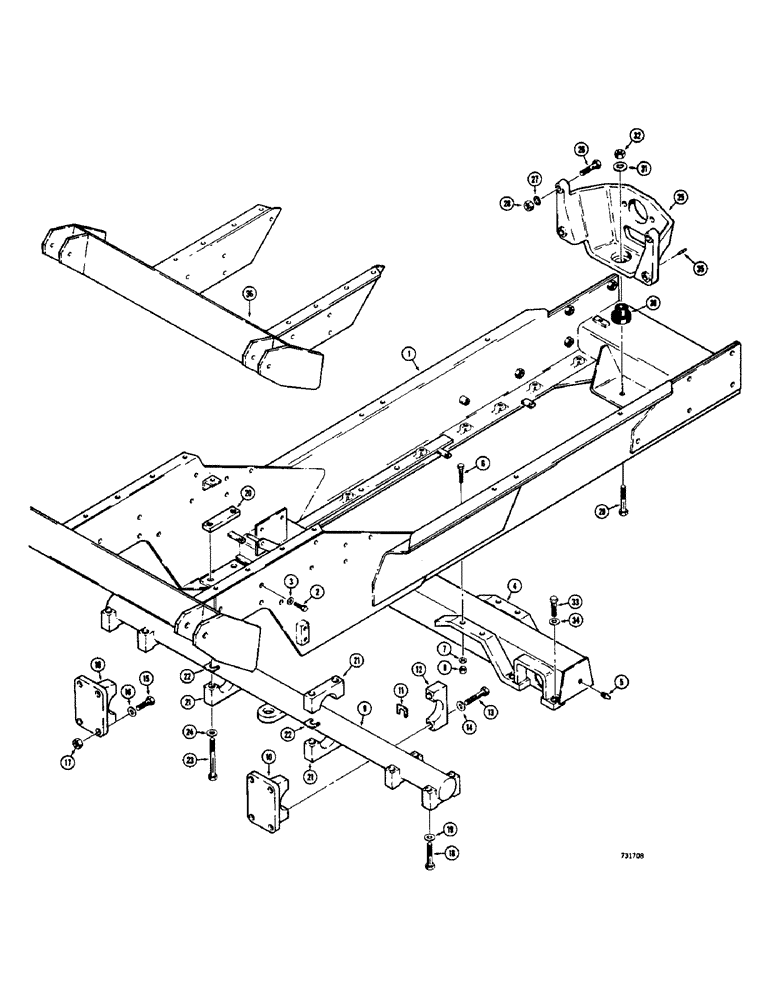

Запчасти Case 475 (112) - ENGINE FRAME AND RELATED PARTS (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R24776
FRAME - engine, transmission and ROPS
1шт.
1
R31152
FRAME - engine only
1шт.
2
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
4шт.
3
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
4шт.
4
D50527
CROSSMEMBER - front
1шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
6
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
7
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
8шт.
8
25-1012
NUT,3/4"-10, G5
4шт.
9
D50529
BAR
CROSSBAR - rear
1шт.
10
D35177
CLAMP
- final drive to crossbar (Rear)
2шт.
11
D33982
BUSHING
SPACER - clamp
2шт.
12
D34663
CLAMP
- final drive to crossbar (Front)
2шт.
13
13-1464
BOLT,Hex, 7/8" - 9 x 4", Gr 5
HHCS - 7/8" - 9 NC x 4"
4шт.
14
D34667
WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk
- special
4шт.
15
13-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
8шт.
16
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
8шт.
17
131-148
NUT
- hex., heavy (3/4" - 10 NC)
8шт.
18
13-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
8шт.
19
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
8шт.
20
D34722
BLOCK
- tapped
2шт.
21
D34663
CLAMP
- rear crossbar to engine frame
4шт.
22
D33982
BUSHING
SPACER - clamp
2шт.
23
13-14120
BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5
HHCS - 7/8" - 9 NC x 7-1/2"
4шт.
24
D34667
WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk
- special
4шт.
25
L46461
BRACKET
SUPPORT - engine, front
1шт.
26
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
27
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
28
25-1012
NUT,3/4"-10, G5
4шт.
29
13-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
1шт.
30
A19066
MOUNTING PARTS
MOUNT - rubber, engine
1шт.
31
195-48
WASHER,3/4" x 2 7/8" x .165"
- flat (3")
1шт.
32
131-16
LOCK NUT,3/4"-10, GB
LOCKNUT, 3/4"-10, GB
1шт.
34
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
8шт.
35
139-64
PIN,1/8" x 1 1/2", Tapered
- taper #5
2шт.
36
F93315
FRAME - ROPS and transmission
1шт.
Выбрано товаров: 37
