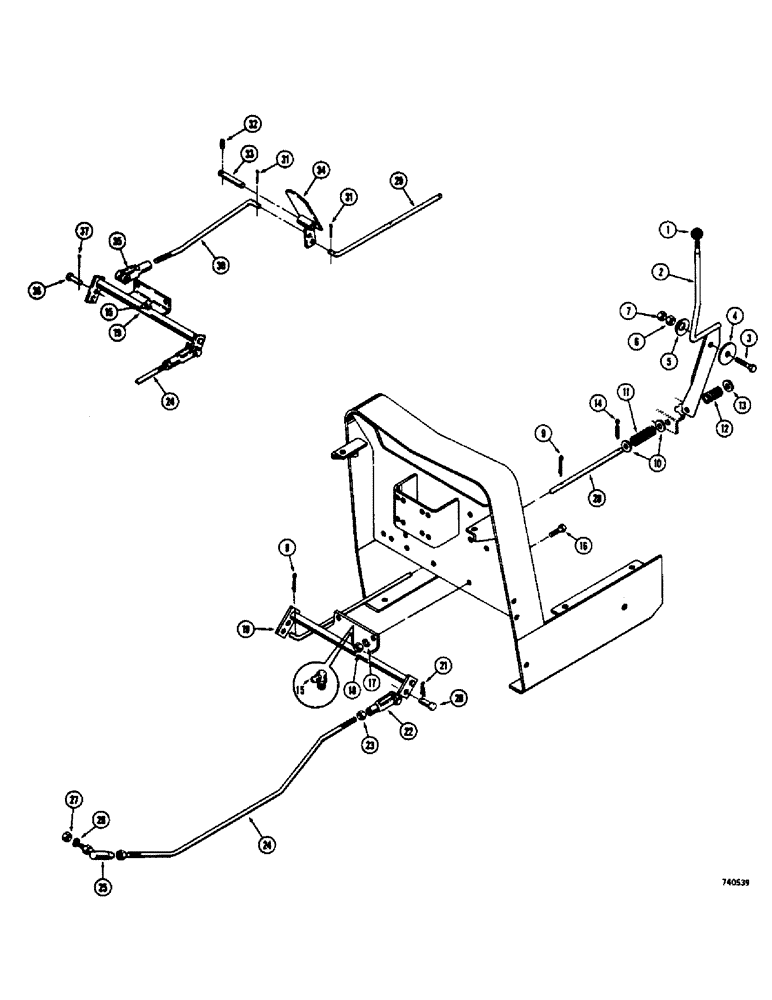

Запчасти Case 475 (062) - THROTTLE CONTROL LINKAGE, USED ON ALL MODELS (10) - ENGINE

1

D49996

KNOB

- D50237 throttle (1/2" - 20 NF)

1шт.

2

D50237

LEVER

THROTTLE - hand (1/2" - 20 NF threads)

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

1шт.

4

R15071

DISC

- friction

1шт.

5

R14771

WASHER

- Belleville

1шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

1шт.

8

RESERVED

1шт.

9

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- plain

2шт.

11

A8767

SPRING

- pedal return

1шт.

12

A7827

SPRING

- control rod

1шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain

1шт.

14

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

15

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

FITTING - grease, 67-1/2 degree (5/16" drive)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

19

D35402

LEVER

SHAFT - pivot, foot throttle

1шт.

20

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

1шт.

21

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

22

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

ROD END - throttle rod

1шт.

23

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

24

R24756

ROD

- throttle

1шт.

25

A10329

BALL JOINT,1/4" - 28 x 1"

- adjustable

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

1шт.

28

R24359

ROD

- control, used on models with hand throttle only

1шт.

29

R32167

ROD

- control, rear, used on models with hand and foot throttle

1шт.

30

R32169

ROD - control, front, used on models with hand and foot throttle

1шт.

31

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Used on models with hand and foot throttle 3/32" x 1/2"

2шт.

32

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, , Used on models with hand and foot throttle 5/32" x 1", Type E

1шт.

33

R17364

SHAFT

- throttle pedal, used on models with hand and foot

1шт.

34

R32171

PEDAL

- throttle control, used on models with hand and foot

1шт.

35

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod, used on models with hand and foot throttle

1шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Used on models with hand and foot throttle 5/16" x .940"

1шт.

37

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Used on models with hand and foot throttle 3/32" x 1/2"

1шт.
