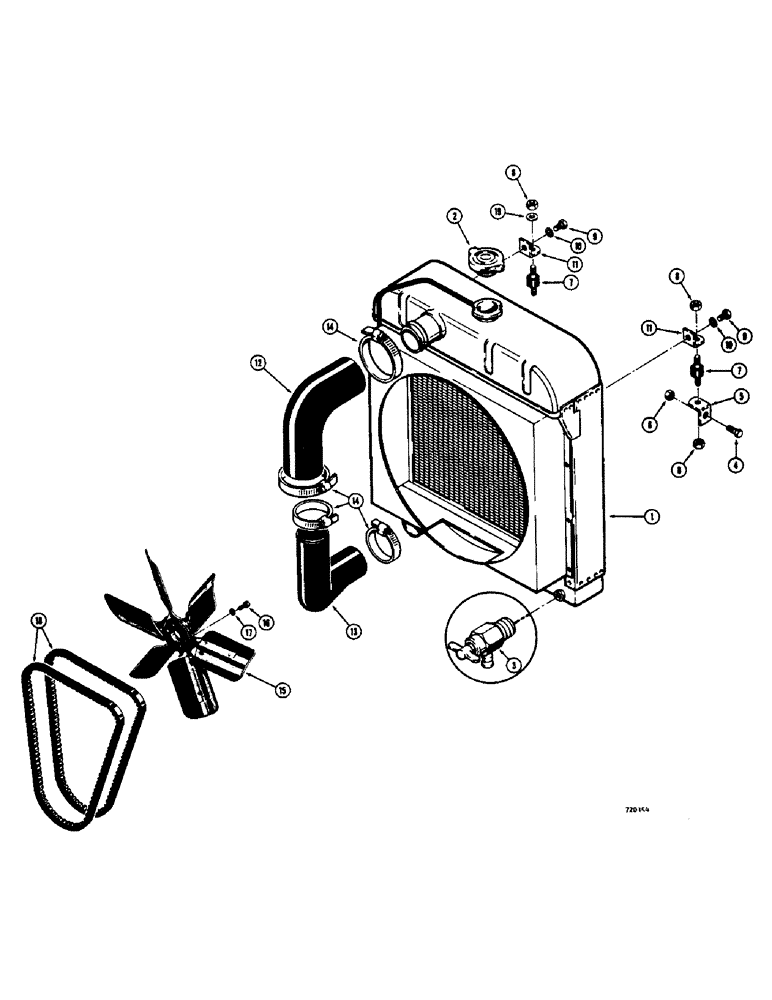

Запчасти Case 475 (060) - RADIATOR, FAN AND BELTS (10) - ENGINE

1

R24765

RADIATOR

ASSEMBLY - cooling

1шт.

2

D25826

CAP

- radiator, 7 P.S.I.

1шт.

3

217-92

COCK

VALVE - drain

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

5

R24753

ANGLE BAR

BRACKET - radiator mounting

6шт.

6

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

6шт.

7

L11236

BOLT

BOLT - special, flex

6шт.

8

131-145

NUT,J, #10

- hex., jam (5/16" - 18 NC)

24шт.

9

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

10

92-5

LOCK WASHER,5/16"

6шт.

11

R24752

ANGLE BAR

BRACKET - radiator mounting

6шт.

12

R25124

RADIATOR HOSE,2.50" ID x 9.00", SAE 20R4 Class D-1 or SAE 20R4 Class SC

HOSE - radiator, upper

1шт.

13

L45810

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Lower 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.

14

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, screw type

4шт.

15

L13551

FAN

- suction

1шт.

15

L52024

FAN

- pusher - not shown

1шт.

16

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

L49006

SET OF BELTS,0.50" W x 57.00" L

Fan and alternator (Set of 2) 0.50" W x 57.00" L

1шт.

19

195-21

WASHER,5/16"

- plain () 5/16"

1шт.
