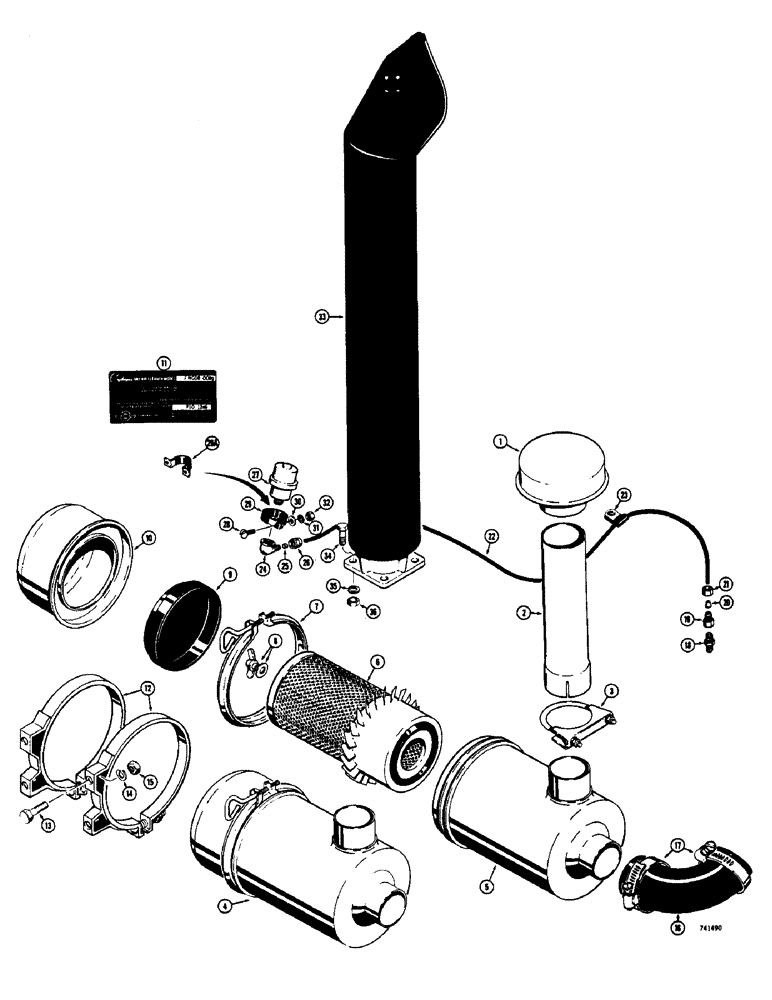

Запчасти Case 475 (048) - AIR CLEANER AND EXHAUST SYSTEM, VERTICAL STYLE AIR INTAKE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A61277
CAP
- screen, air cleaner
1шт.
2
D34631
TUBE
STACK - air cleaner
1шт.
3
L14222
CLAMP,79.25mm ID
ASSEMBLY - stack
1шт.
D36261
CLEANER
AIR CLEANER - dry type, complete
1шт.
5
NSS
NOT SOLD SEPARAT
BODY - air cleaner
1шт.
6
D37975
FILTER
ELEMENT - air cleaner
1шт.
7
R15731
CLAMP
- air cleaner
1шт.
8
F91761
WING NUT
AND WASHER ASSEMBLY - winged
1шт.
9
D37979
BAFFLE
- air cleaner
1шт.
10
A40951
CUP
- air cleaner
1шт.
11
321-1731
DECAL
- service instructions
1шт.
12
R24049
BAND
- air cleaner mounting
2шт.
13
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
14
92-5
LOCK WASHER,5/16"
4шт.
15
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
4шт.
16
R24740
HOSE ASSY.
HOSE - air, Serial Range: cleaner-manifold
1шт.
17
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
CLAMP - hose, screw type
2шт.
18
D36264
FITTING
CONNECTOR - special, filter type
1шт.
D35091
PIPE FITTING
CONNECTOR ASSEMBLY - female
1шт.
19
NSS
NOT SOLD SEPARAT
CONNECTOR - female
1шт.
20
D37176
SLEEVE
- connector
1шт.
21
S37362
NUT - connector
1шт.
22
D36944
TUBE
-, Serial Range: indicator-manifold
1шт.
23
D43839
CLAMP
- tube
1шт.
D45588
FITTING
ELBOW ASSEMBLY - special, 90 degrees
1шт.
24
NSS
NOT SOLD SEPARAT
ELBOW - 90 degrees
1шт.
25
D37176
SLEEVE
- elbow
1шт.
26
D37362
TUBE NUT
- connector
1шт.
27
D47217
INDICATOR
FILTER INDICATOR - air cleaner
1шт.
28
173-202
SCREW,Rnd Hd, 1/4" - 20 x 3/4"
RHMS - 1/4" - 20 NC x 3/4" (Zinc plated)
1-2шт.
29
D45064
CLAMP,1 3/8", Insul, 1/4" Bolt
- indicator ("P" style)
1шт.
29a
R33808
CLAMP
- indicator ("U" style)
1шт.
30
195-18
WASHER,1/4"
- plain () D45064 clamp 1/4"
1шт.
31
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1-2шт.
32
25-104
NUT,1/4"-20, G5
1-2шт.
33
D47767
MUFFLER
- exhaust
1шт.
34
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
35
92-8
LOCK WASHER,1/2"
4шт.
36
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
4шт.
Выбрано товаров: 39
