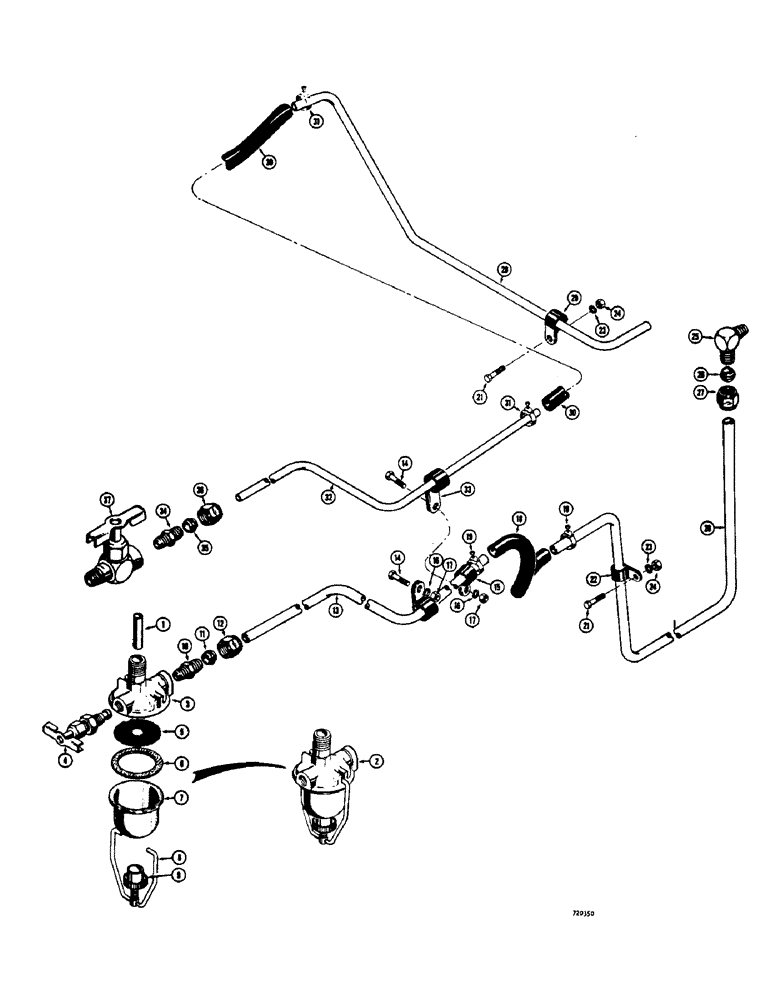

Запчасти Case 475 (046) - FUEL SYSTEM (10) - ENGINE
№
Артикул
Название
Примечание
Количество
33487
STRAINER ELEMENT
FUEL STRAINER ASSEMBLY - complete
1шт.
1
NLS
NO LONGER SERVICED
TUBE - inlet
1шт.
4
A11200
COCK
VALVE - shutoff
1шт.
5
A11211
FILTER SCREEN
SCREEN - strainer
1шт.
6
A11208
GASKET
- bowl
1шт.
7
86982913
BOWL
1шт.
8
A11212
BAIL
- bowl
1шт.
9
A11210
ADJUSTER
NUT - cab, bail
1шт.
222-24
FITTING,9/16"-24 x 1/8" NPTF
CONNECTOR ASSEMBLY - flex. male
1шт.
10
NSS
NOT SOLD SEPARAT
CONNECTOR - flex
1шт.
11
222-103
SLEEVE,5/16" Tube
- Connector 5/16" Tube
1шт.
12
222-113
TUBE NUT,9/16"-24
NUT - connector
1шт.
13
R24355
TUBE
- flex supply, at strainer
1шт.
14
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
15
49832
CLAMP
- fuel line
2шт.
16
92-8
LOCK WASHER,1/2"
2шт.
17
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
18
D34989
FUEL HOSE,0.31" ID x 9.00", SAE 30R1
Low Pressure 0.31" ID x 9.00", SAE 30R1
1шт.
19
214-300
CLAMP
- hose, screw
2шт.
20
R24728
TUBE
- fuel supply, at fuel filter
1шт.
21
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
2шт.
22
49832
CLAMP
- fuel tube
1шт.
23
92-8
LOCK WASHER,1/2"
2шт.
24
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSEMBLY - flex, male
1шт.
25
NSS
NOT SOLD SEPARAT
ELBOW - flex
1шт.
26
222-103
SLEEVE,5/16" Tube
1шт.
27
222-113
TUBE NUT,9/16"-24
NUT - tube
1шт.
28
R24729
TUBE
- fuel return, at injector
1шт.
29
51200321
CLAMP
- tube
1шт.
30
D51735
FUEL HOSE
HOSE - fuel return (1/4" I.D. x 9" long)
1шт.
31
214-300
CLAMP
- hose, screw
2шт.
32
R24356
TUBE - fuel return, at fuel tank
1шт.
33
D34033
CLAMP
- tube
1шт.
222-23
FITTING,1/2"-24 x 1/4" NPTF w/Nut
CONNECTOR ASSEMBLY - flex, male
1шт.
34
NSS
NOT SOLD SEPARAT
CONNECTOR - flex
1шт.
35
222-102
SLEEVE,1/4" Tube
Connector 1/4" Tube
1шт.
36
87017024
TUBE NUT,1/2"-24
NUT - connector
1шт.
37
217-94
SHUT-OFF VALVE
SHUTOFF - fuel
1шт.
Выбрано товаров: 41
