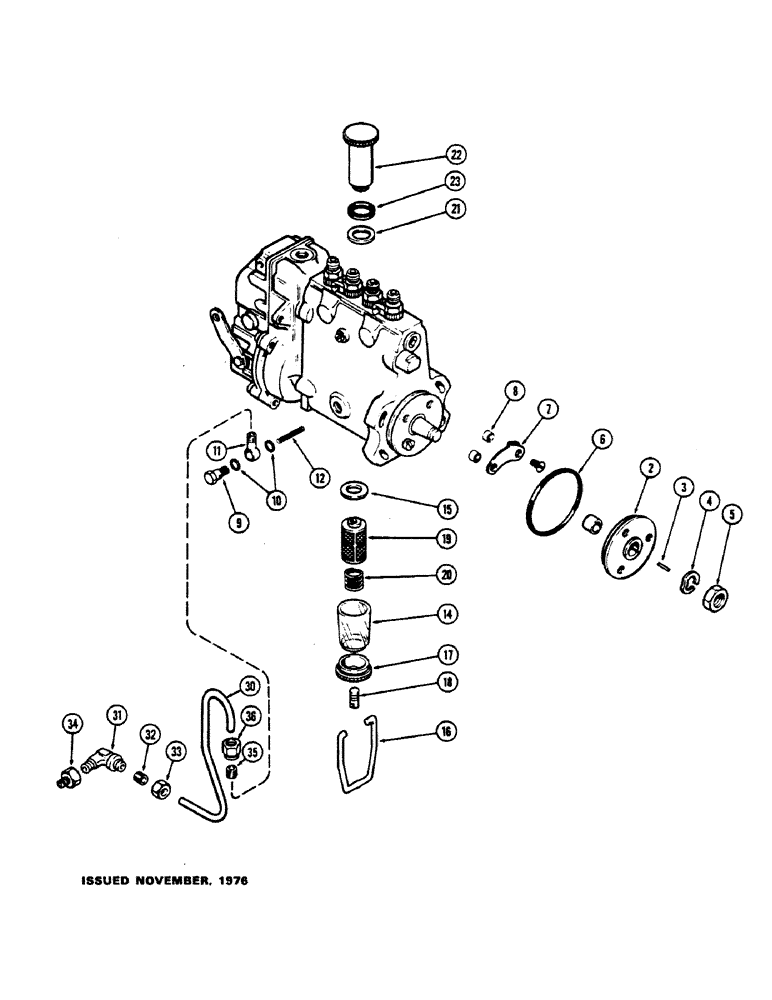

Запчасти Case 475 (037C) - A64993 INJECTION PUMP, (301B) DIESEL ENGINE, W/LUBE TUBE ON ENGINE SIDE OF PUMP (10) - ENGINE

A64993

PUMP

ASSY. - fuel injection (2200 R.P.M.) (Bosch pump #PES4A85D420LS2263) (Bosch governor #EP/RSV375-1100A2B)

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A20933

KEY

-, Serial Range: hub-shaft

1шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mtg. (2-15/16 x 3-3/16 x 1/8")

1шт.

7

A41854

INDICATOR

POINTER - hub

1шт.

8

A41855

BUSHING

SPACER - pointer

2шт.

9

A25192

BANJO BOLT

BOLT - oil line banjo fitting

1шт.

10

A22381

WASHER

- banjo fitting (Copper)

2шт.

11

A25191

FITTING

- banjo type

1шт.

12

A25190

SPRING

- oil port

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut & bail

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element tension

1шт.

21

A43351

SEAL

- gasket (Copper)

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand

1шт.

23

A45342

GASKET

- hand primer (Rubber)

1шт.

30

A59226

TUBE

- heat exchanger to inj. pump

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - (At block)

1шт.

32

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

SLEEVE - for 1/4" tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

34

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, (3/8 to 1/4")

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
