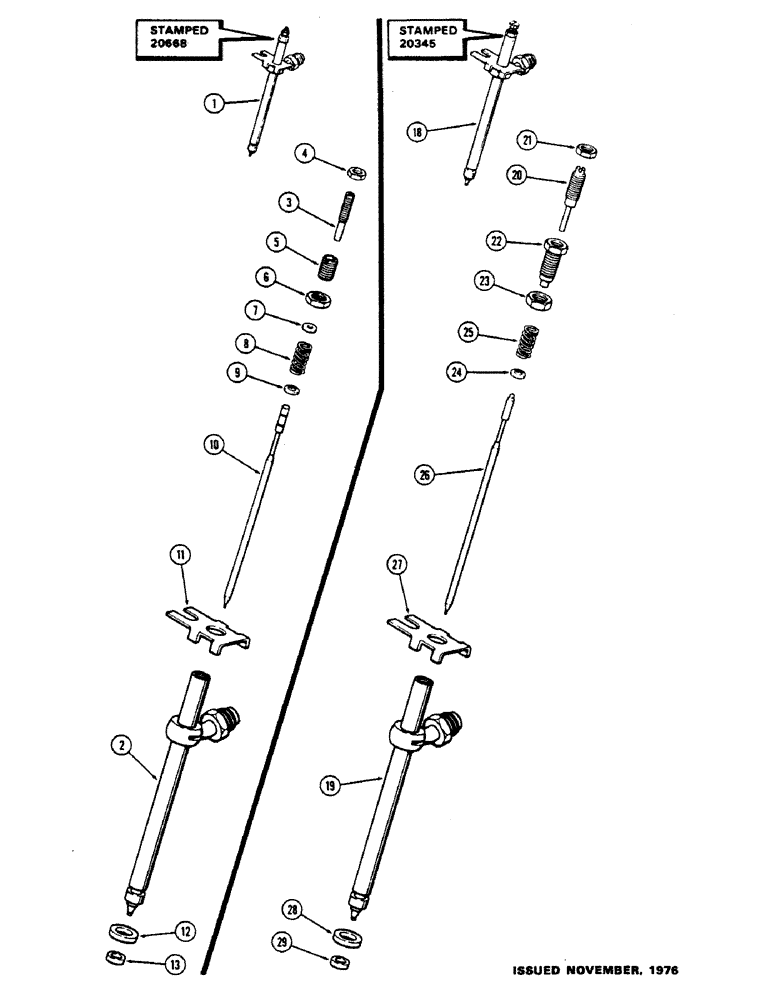

Запчасти Case 475 (036) - A138322 INJECTION NOZZLE, (301B) DIESEL ENGINE, 1ST USED ENG. S/N 2577647 (10) - ENGINE

1

A138322

NOZZLE CAP

NOZZLE ASSY. - injector (See Note) (Stamped 20668 on body) (Red color code)

4шт.

A138322R

REMAN-INJECT NOZZLE

475 W/301B ENGINE (PRIOR TO S/N 3058169), 1ST USED ENG. S/N 2577647

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45632

SHIM

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- 11/16" free length w/green color code

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- 3/8 x 9/16 x 1/8" nylon

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, 5/16 x 13/16 x 1/8" teflon

1шт.

18

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injector (See note) (Stamped 20345 on body) (Red color code) (Order A138322), A62809, used prior to engine, Start Serial: 2577647

4шт.

A138322R

REMAN-INJECT NOZZLE

475 CABLE LAYER W/301B ENGINE (PRIOR TO S/N 3058169), 1ST USED ENG. S/N 2577647 REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - nozzle, A62809 injection, used prior to engine, Start Serial: 2577647

1шт.

20

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

21

A43602

NUT

- lock, lift adj. screw, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

22

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

23

A42424

LOCK NUT

- lock, pressure adj. screw, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

24

A44369

SEAT

- spring, lower, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

25

A43601

SPRING

- (1/2" free length w/brown stripe), A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

26

NSS

NOT SOLD SEPARAT

VAVLE - nozzle, A62809 injection, used prior to engine, Start Serial: 2577647

1шт.

27

A41768

PLATE

- nozzle locating, A62809 injection, used prior to engine, Start Serial: 2577647

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- 3/8 x 9/16 x 1/8" nylon, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, 5/16 x 13/16 x 1/8" teflon, A62809 injection nozzle, used prior to engine, Start Serial: 2577647

1шт.
