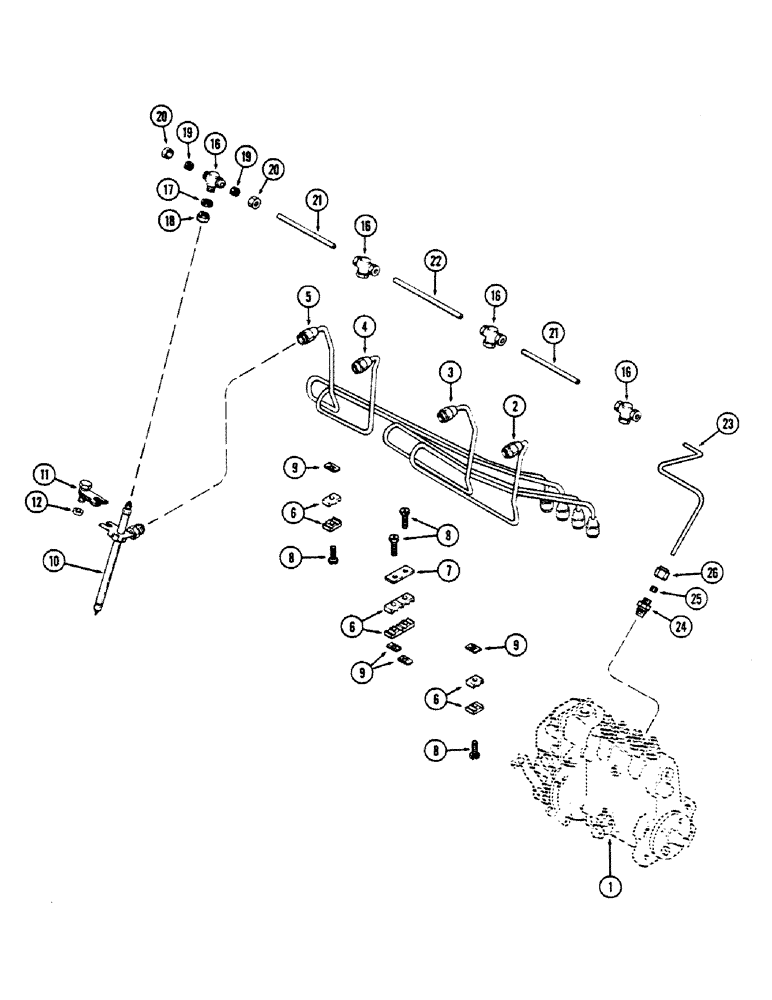

Запчасти Case 475 (032) - FUEL INJECTION SYSTEM, (301B) DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figs 37A & 37C)

1шт.

2

A58702

TUBE

ASSY - fuel injection, no. 1 cylinder

1шт.

3

A58703

TUBE

ASSY - fuel injection, no. 2 cylinder

1шт.

4

A58704

TUBE

ASSY - fuel injection, no. 3 cylinder

1шт.

5

A58705

TUBE

ASSY - fuel injection, no. 4 cylinder

1шт.

6

A58709

BRACKET

Clamp, injection tubes

8шт.

7

A58710

PLATE

Bracket

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

Bracket

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

4шт.

10

REF

INSTRUCTION

NOZZLE ASSY - fuel injector (See Fig. 36)

4шт.

11

A58695

CLAMP

ASSY - nozzle

4шт.

12

A58696

SPACER

SPACER - nozzle clamp

4шт.

16

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSY - nozzle leak-off

4шт.

17

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

, Serial Range: Tee-nozzle

4шт.

18

A58961

NUT

, Serial Range: Tee-nozzle

4шт.

19

222-102

SLEEVE,1/4" Tube

8шт.

20

87017024

TUBE NUT,1/2"-24

For 1/4" tube

8шт.

21

A58965

TUBE

Leak off (4-5/8" long)

2шт.

22

A58964

TUBE

Leak off (5-5/8" long)

1шт.

23

A58963

TUBE

Leak off, No. 1, Serial Range: nozzle-valve

1шт.

24

A29098

VALVE ASSY - check (One way valve)

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

For 1/4" tube

1шт.
