Запчасти Case 475 (030) - TIMING GEAR COVER, (301B) DIESEL ENGINE (10) - ENGINE

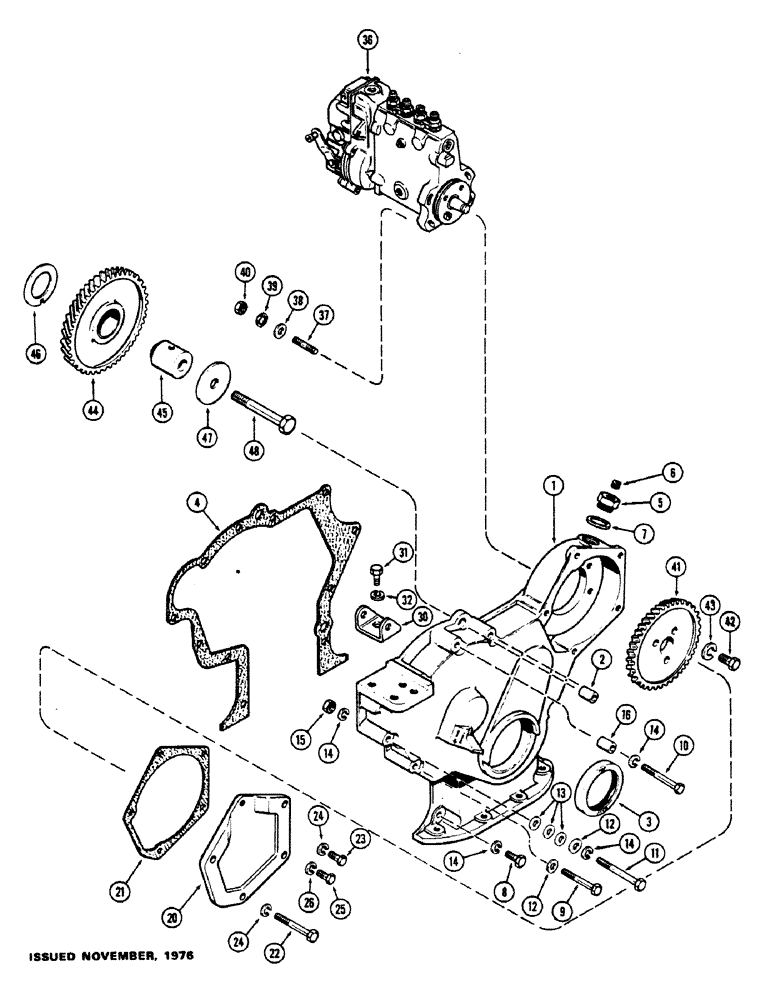

Схема запчастей Case 475 - (030) - TIMING GEAR COVER, (301B) DIESEL ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

A58609

COVER

ASSY. - timing gear

1шт.

2

A58611

PIN

- cover locating

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A18550

PLUG

- timing window

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., hex. sckt. hd.)

1шт.

7

A58613

SEALING WASHER

GASKET - plug (1 x 1-1/4 x 1/16" nylon)

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

2шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.)

1шт.

11

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Cover Hex, 3/8"-16 x 4", G5

2шт.

12

195-25

WASHER,3/8"

- cover bolts (13/32 x 13/16 x 1/16") (Used w/13-664 bolts)

2шт.

13

95-6

WASHER,3/8"

- spacer (7/16 x 1 x 5/64") (3 per bolt)

6шт.

14

92-6

LOCK WASHER,3/8"

used w/13-664 bolt 3/8"

9шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

16

A19774

BUSHING

SPACER - alternator pry point

1шт.

20

A61053

COVER

- fuel pump

1шт.

21

A58615

GASKET

- cover

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.)

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

30

A38492

BRACKET

- alternator mounting

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Mounting bracket Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

36

A64993

PUMP

ASSY. - fuel injection (See Fig. 37C)

1шт.

37

A58689

STUD

- pump (3/8" N.C. x 1-7/8"), fuel injection drive

4шт.

38

A57470

WASHER

- stud (13/32 x 11/16 x 16 ga.), fuel injection pump drive

4шт.

39

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Fuel injection pump drive Int Tooth, 3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., fuel injection pump drive

4шт.

41

A58793

GEAR - injection pump, fuel drive

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to pump hub, fuel injection drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

fuel injection pump drive 3/8"

3шт.

44

A62542

GEAR

ASSY. - idler, w/bushing, fuel injection pump drive

1шт.

45

A58690

SHAFT

- idler gear, fuel injection pump drive

1шт.

46

A58691

WASHER

- thrust, idler shaft, fuel injection pump drive

1шт.

47

A58692

PLATE

- thrust, idler shaft, fuel injection pump drive

1шт.

48

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler gear, fuel injection pump drive Hex, 1/2"-13 x 4 1/4", G5

1шт.

Выбрано товаров: 39
