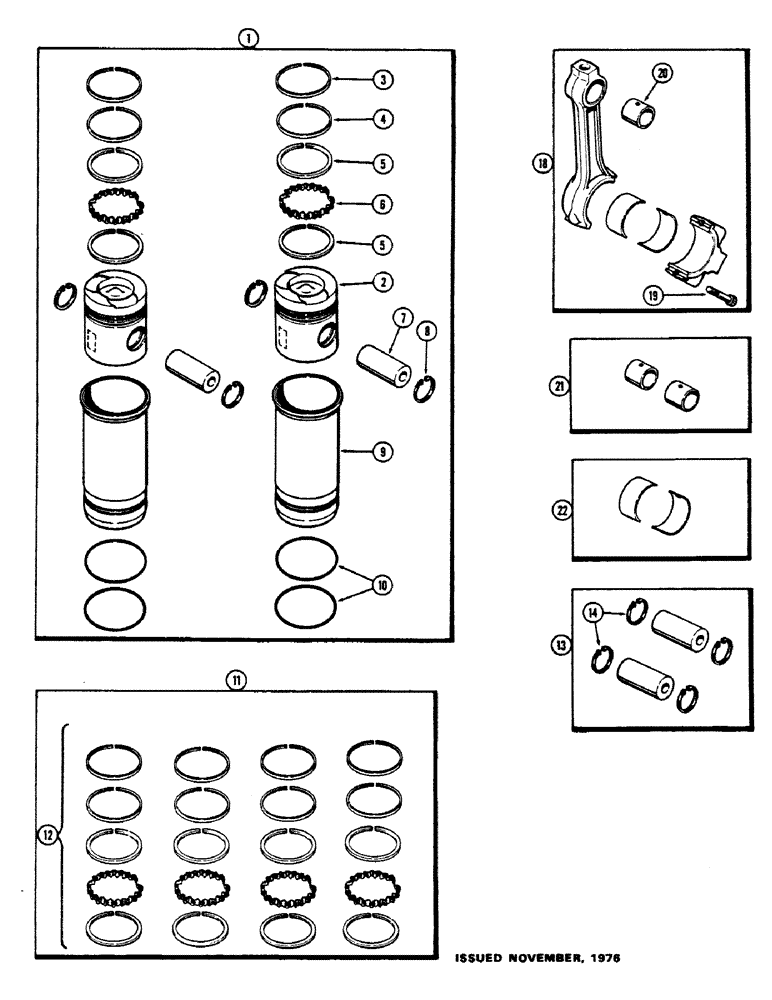

Запчасти Case 475 (022) - PISTON ASSEMBLY, (301B) DIESEL ENGINE (10) - ENGINE

1

A46022

SET

PISTON KIT - (Set of 2) (Replaces A43714)

2шт.

2

A64766

PISTON

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11 or 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression 2nd groove (Order ref. 11 or 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 11 or 12)

4шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - oil control, 3rd groove (Order ref. 11 or 12)

2шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

2шт.

8

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

9

A142367

SLEEVE

- cylinder (4-3/8" bore) (Replaces A59093)

2шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve (4-1/2 x 4-3/4 x 1/8")

4шт.

11

A43031

KIT

RING KIT - piston re-ring (Set of 4)

1шт.

12

A43028

RING, SET

RING KIT - piston re-ring (Set of 1)

4шт.

13

A43713

PIN

KIT - piston (Set of 2)

2шт.

14

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

18

A62952

ROD

ASSY - connecting

4шт.

19

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod cap (Replaces A62184)

2шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 21), connecting rods

1шт.

21

A21722

BUSHING

KIT - piston pin (Set of 2), connecting rods

2шт.

22

A43173

BEARING LINER

LINER SET - conn. rod brg. (Std) (Set of 2) (Replaces A42493)

4шт.

22

A43174

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2) (Replaces A42478)

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINER SET - conn. rod brg. (-.010") (Set of 2) (Replaces A42479)

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINER SET - conn. rod brg. (-.020") (Set of 2) (Replaces A42480)

4шт.

22

A43177

BEARING LINER

LINER SET - conn. rod brg. (-.030") (Set of 2) (Replaces A42481)

4шт.
