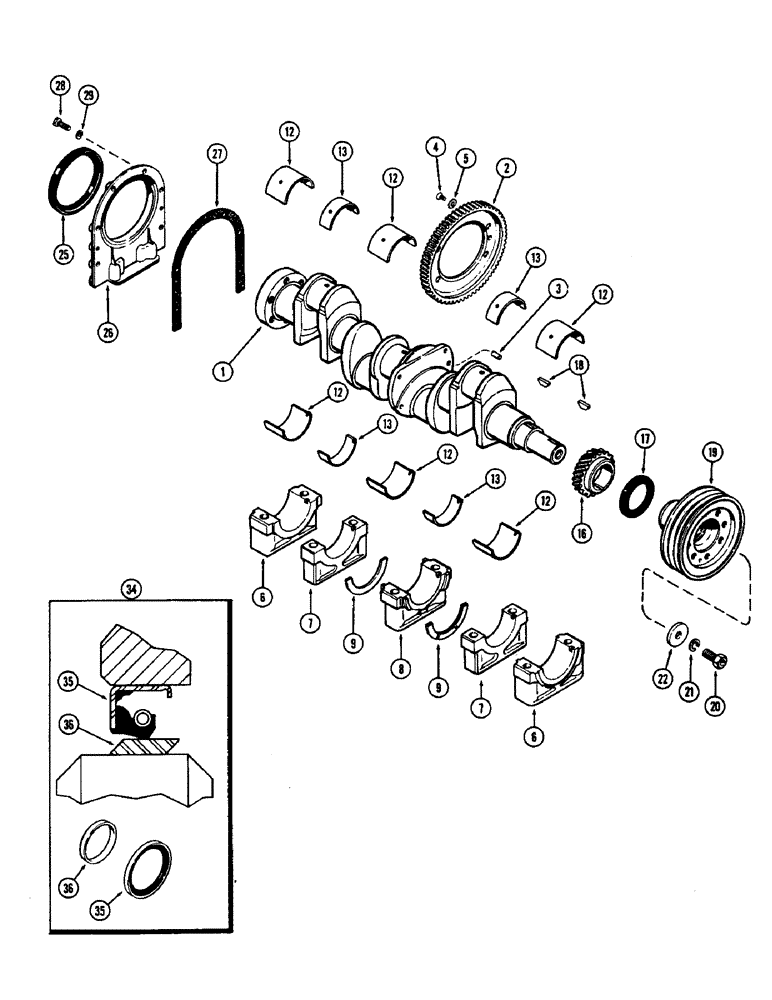

Запчасти Case 475 (020) - CRANKSHAFT AND MAIN BEARINGS, (301B) DIESEL ENGINE (10) - ENGINE

1

A58889

CRANKSHAFT

1шт.

2

A62450

GEAR

- balance drive

1шт.

3

A8134

PIN

- balancer drive gear locating (3/8 x 3/4")

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - drive gear (3/8 x 3/4" N.F., flat sckt. hd.)

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A58783

BEARING CAP

CAP - main bearing, front & rear (Wide)

2шт.

7

A58784

BEARING CAP

CAP - main bearing, intermediate (Narrow)

2шт.

8

A58785

BEARING CAP

CAP - main bearing, center, thrust (Wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing (Standard) (0.185")

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing (Oversize) (0.191")

2шт.

12

A43163

BEARING LINER

LINER SET - main brg., wide (Std.) (Replaces A42490)

3шт.

12

A42486

LINING

LINER SET - main bearing, wide (-.002")

3шт.

12

A42487

LINER

SET - main bearing, wide (-.010")

3шт.

12

A42488

LINER

SET - main bearing, wide (-.020")

3шт.

12

A42489

BEARING

LINER SET - main bearing, wide (-.030")

3шт.

13

A43158

BEARING LINER

LINER SET - main brg., narrow (Std.) (Replaces A42492)

2шт.

13

A42482

LINING

LINER SET - main bearing, narrow (-.002")

2шт.

13

A42483

LINING

LINER SET - main bearing, narrow (-.010")

2шт.

13

A42484

KIT

LINER SET - main bearing, narrow (-.020")

2шт.

13

A24285

LINER SET - main bearing, narrow (-.030")

2шт.

16

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

17

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A60012

PULLEY

- crankshaft

1шт.

20

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex, sckt, hd.)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

25

A62050

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2") (See wear seal kit, ref. 34)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil retainer

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

29

92-6

LOCK WASHER,3/8"

6шт.

34

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), seal kit

1шт.
