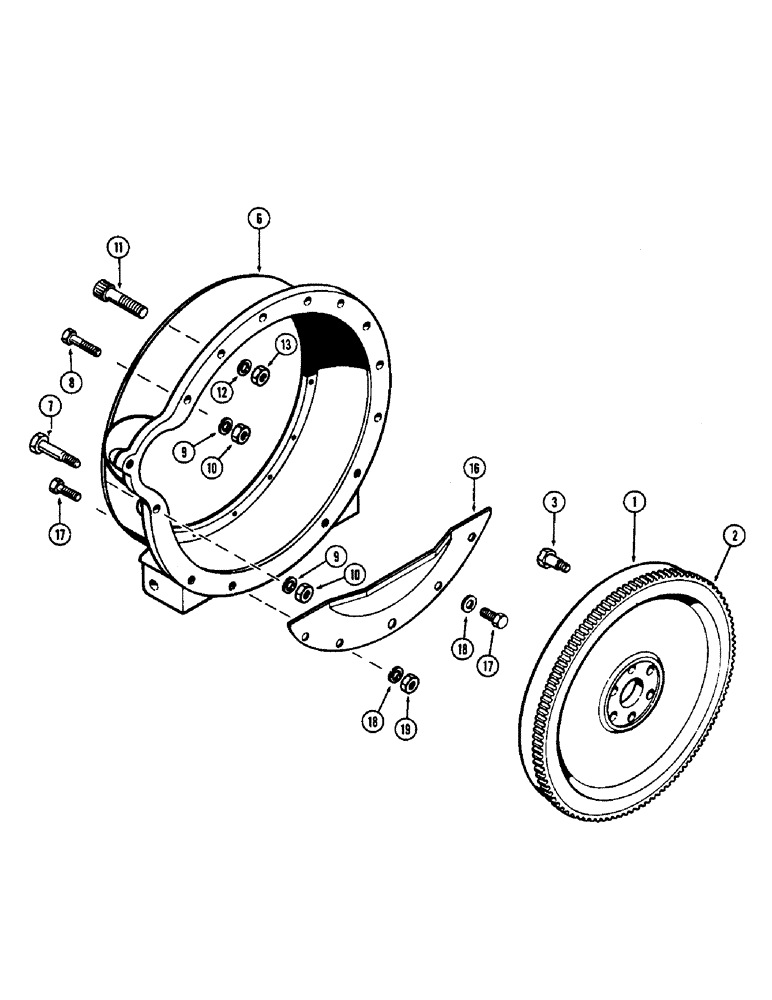

Запчасти Case 475 (018) - FLYWHEEL AND HOUSING, (301B) DIESEL ENGINE (10) - ENGINE

1

A62834

FLYWHEEL

ASSY.

1шт.

2

A58778

GEAR

- starter ring

1шт.

3

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.F. hex.)

6шт.

6

A9397

HOUSING

- flywheel

1шт.

7

A61040

STEP BOLT

BOLT - shoulder (1/2 x 3" N.C. hex.)

1шт.

7

A61041

STEP BOLT

BOLT - shoulder (1/2 x 2-7/16" N.C. hex.)

1шт.

8

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Housing Hex, 1/2"-13 x 1 5/8", G5

3шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- housing (1/2 x 2-1/4" N.C. hex.)

3шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

11

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - housing (3/4 x 3" NC, 12 pt. hd)

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

25-1012

NUT,3/4"-10, G5

2шт.

16

A58931

GUARD

SHIELD - dust, flywheel

1шт.

17

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- shield (1/2 x 3/4" N.C. hex.)

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.
