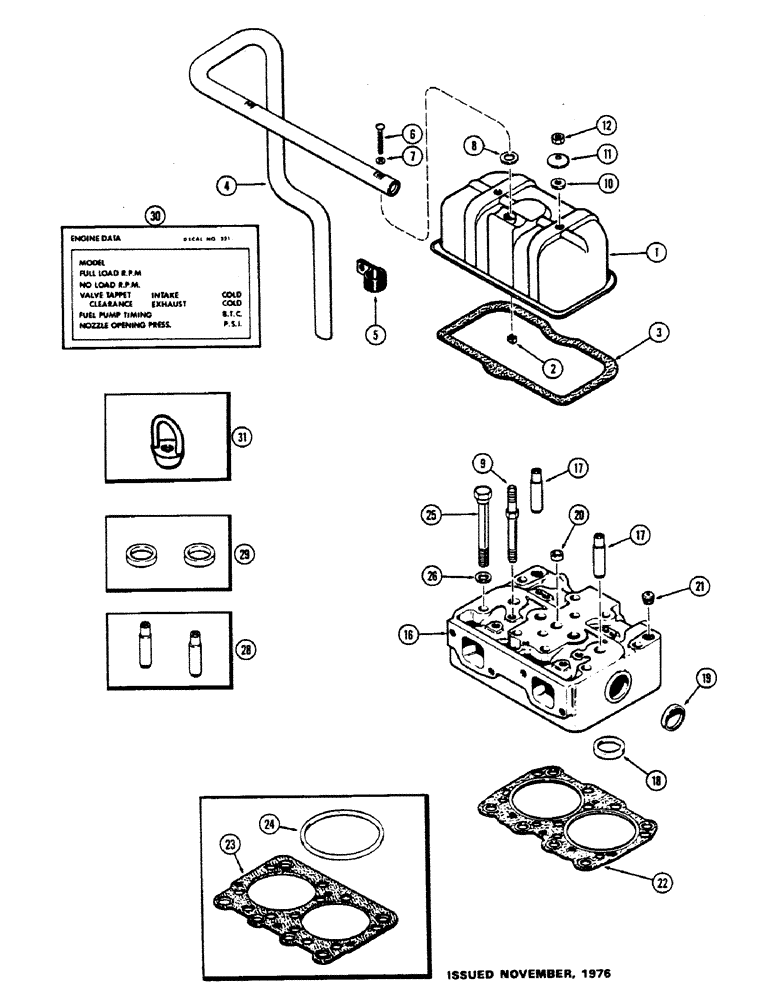

Запчасти Case 475 (012) - CYLINDER HEAD AND COVER, (301B DIESEL ENGINE) (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
ASSY. - cylinder head
2шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - 1/4" NC Tinnerman
1шт.
3
A65734
CYLINDER HEAD GASKET
- cover to head (Replaces A58928)
2шт.
4
A64994
TUBE
- breather
1шт.
5
D34033
CLAMP
- breather tube (To flywheel housing)
1шт.
6
75-440
SCREW
- breather tube (1/4 x 2-1/2" N.C., rd. hd.)
2шт.
7
A34133
GASKET
- tube, upper (9/32 x 1/2 x 3/64" fiber)
2шт.
8
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
- tube, lower (11/16 x 1-1/4 x 1/4")
2шт.
9
A67121
STUD
- cover & head (Replaces A60885)
4шт.
10
A23684
GASKET
GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)
4шт.
11
A23683
WASHER
- cover stud (Dished)
4шт.
12
25-107
NUT,7/16"-14, G5
- cover stud (7/16" N.C. hex.)
4шт.
16
A66441
HEAD
ASSY - cylinder (Replaces A58867)
2шт.
17
NSS
NOT SOLD SEPARAT
GUIDE - valves (Order ref. 28)
4шт.
18
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order ref. 29)
2шт.
19
A34124
PLUG,Cup, 1 5/8", Stainless
- (1-5/8" cup type)
2шт.
20
A58620
PLUG,Cup, 3/4", Stainless
- (3/4" cup type)
3шт.
22
A138121
GASKET
- cyl. head, w/fire ring (Replaces A64105, A62216 & A59094) (1st used eng. ser. no. 2553872)
1шт.
23
A62216
GASKET
- cylinder head (Order A138121) (Req. fire rings) (Used prior to eng. ser. no. 2553872)
2шт.
24
A59095
GASKET
RING - fire (Std.) (1/16") (Used w/A62216 gasket)
4шт.
24
A42595
GASKET
RING - fire (Oversize) (5/64" thick w/blue stripe) (Used w/A62216 gasket)
4шт.
25
A62732
STEP BOLT
BOLT - cyl. head to block (5/8 x 5-5/8" N.C. hex.)
20шт.
26
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - cyl. head bolt (21/32 x 1 x 3/16")
20шт.
28
A41781
GUIDE
KIT - valve (Set of 2)
4шт.
29
A44010
INSERT
KIT - exhaust valve seat (Set of 2) (Rpl. A57485)
2шт.
30
321-2314
DECAL - engine data (On cover)
1шт.
31
A60567
EYE
- engine lifting
2шт.
Выбрано товаров: 28
