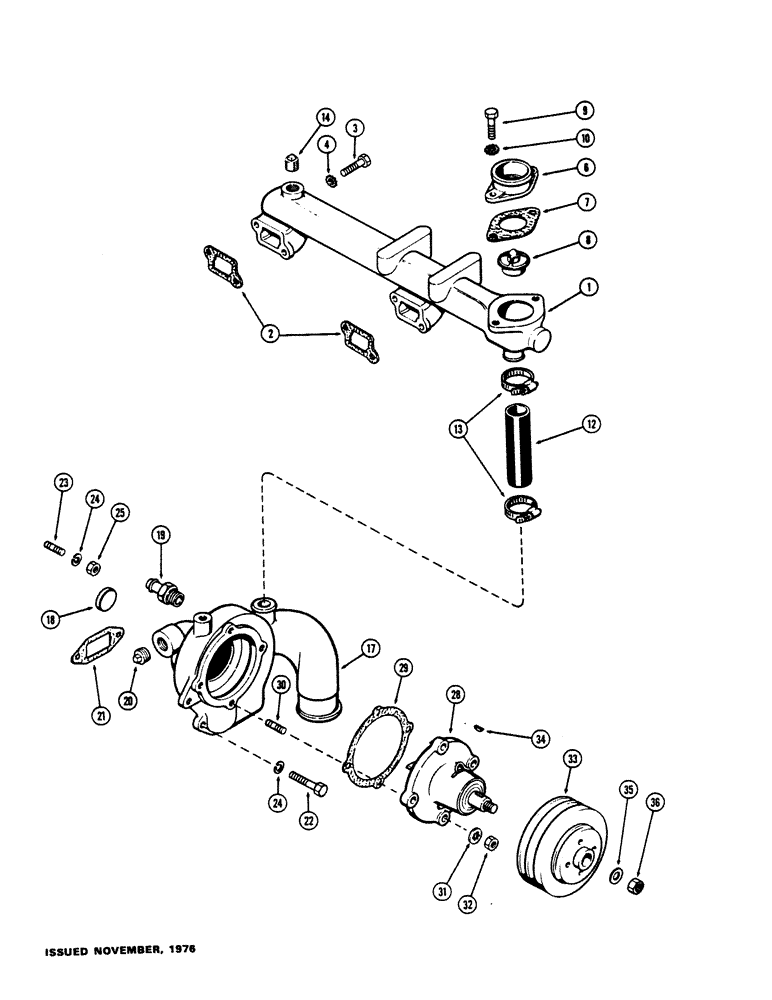

Запчасти Case 475 (008) - WATER MANIFOLD AND THERMOSTAT, (301B) DIESEL ENGINE (10) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

A58637

MANIFOLD GASKET

- water manifold

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- manifold (3/8 x 1-1/2" N.C. hex.)

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

6

A58736

HOUSING

- thermostat

1шт.

7

G46907

GASKET

- thermostat housing

1шт.

8

A57641

THERMOSTAT

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

12

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to pump (1-1/4" I.D. x 5")

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

14

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - manifold (1/2" P.T., sq. hd.)

1шт.

17

A138498

HOUSING

BODY ASSY. - water pump (For 1/2" P.T. connector) (See ref. 19)

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type, water pump

1шт.

17

A59220

BODY

ASSY - water pump for (3/4" P.T. connector) (See ref. 19)

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type, water pump

1шт.

19

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 1/2" P.T. (Used w/A138498 body), water pump

1шт.

19

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - hose, 3/4" P.T. (Used w/A59220 body), water pump

1шт.

20

221-1005

PLUG - (3/4" P.T., sq. hd.), water pump

1шт.

21

A58649

GASKET

- body to block, water pump

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- body (3/8 x 1-1/4" N.C. hex.), water pump

2шт.

23

G11204

STUD

- body (3/8" N.C. x 1-7/16"), water pump

2шт.

24

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., water pump

2шт.

28

A61266

PUMP

ASSY. - water

1шт.

29

A58646

GASKET

- pump to body, water

1шт.

30

A62234

STUD

- pump (3/8" N.C. x 1-5/16"), water

4шт.

31

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

32

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam, water pump

4шт.

33

A60690

PULLEY

- fan drive, water pump

1шт.

34

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley, water pump #9, 3/16" x 3/4", HT

1шт.

35

A58651

WASHER

- (17/32 x 1-1/16 x 3/32"), water pump

1шт.

36

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley, water pump 1/2"-20, GB

1шт.
