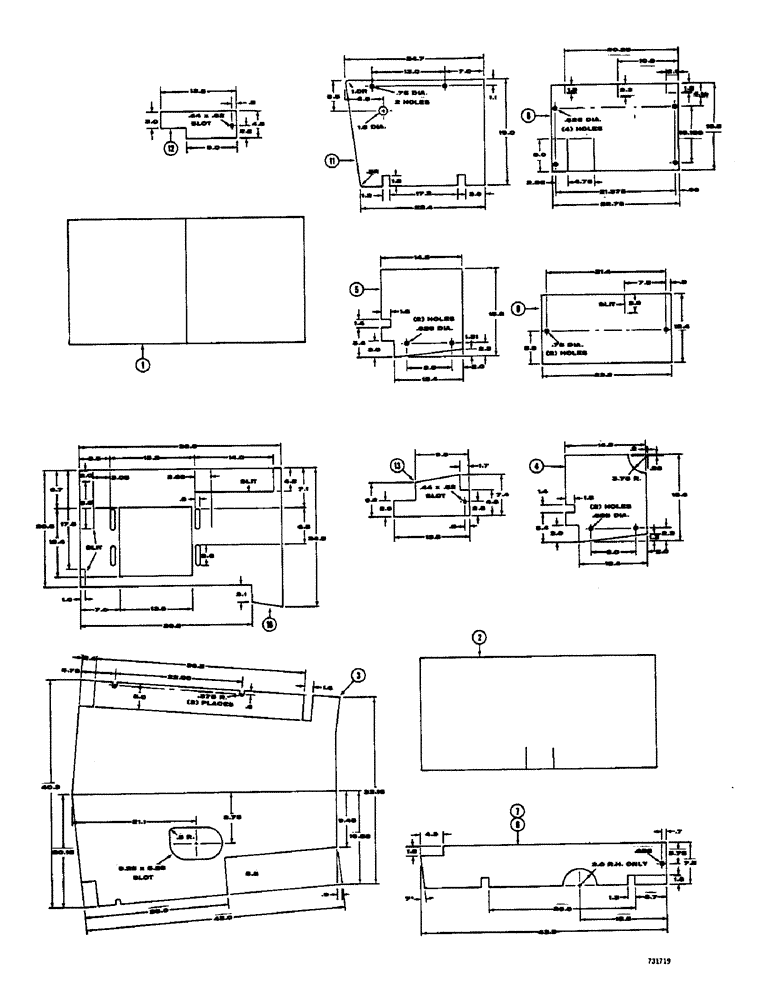

Запчасти Case 475 (123C) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

R5541

KIT - noise reduction (Machinery item)

1шт.

1

R26143

SPARE PART ROPS, roof, front

1шт.

2

R31545

SPARE PART ROPS, rear

1шт.

3

REF

INSTRUCTION

PAD - hood (Cut from R30870)

1шт.

4

REF

INSTRUCTION

PAD - screen, RH (Cut from R30870)

1шт.

5

REF

INSTRUCTION

PAD - screen, LH (Cut from R30870)

1шт.

6

REF

INSTRUCTION

PAD - side panel, RH (Cut from R30870)

1шт.

7

REF

INSTRUCTION

PAD - side panel, LH (Cut from R30870)

1шт.

8

REF

INSTRUCTION

PAD - floor plate, front (Cut from R30870)

1шт.

9

REF

INSTRUCTION

PAD - floor plate, rear (Cut from R30870)

1шт.

10

REF

INSTRUCTION

PAD - plate, under seat (Cut from R30870)

1шт.

11

REF

INSTRUCTION

PAD - cover, RH (Cut from R30870)

1шт.

12

REF

INSTRUCTION

PAD - heel plate, LH (Cut from R30870)

1шт.

13

REF

INSTRUCTION

PAD - heel plate, RH (Cut from R30870)

1шт.

R31314

KIT - pad service

1шт.

14

R30870

PAD

Noise reduction (54" x 72" x 1") Not shown

1шт.

15

345-44

ADHESIVE

Aerosol can (Not shown)

1шт.

16

D59186

SOLVENT - 1 qt. (Not shown)

1шт.
