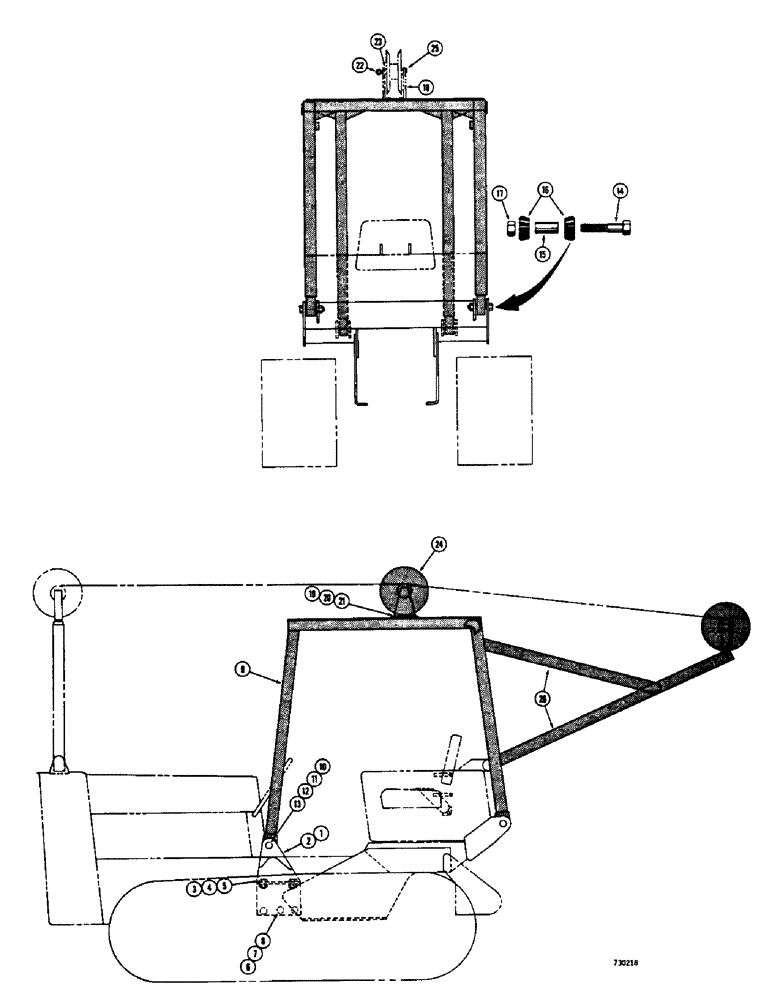

Запчасти Case 475 (123A) - ROLL OVER PROTECTION STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93351

BRACKET - mounting, R.H.

1шт.

2

F93350

BRACKET - mounting, L.H.

1шт.

3

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

5

25-104

NUT,1/4"-20, G5

- hex. (3/4" - 10 NC)

4шт.

6

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

6шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

6шт.

8

25-1010

NUT,5/8"-11, G5

6шт.

9

F93348

ROLL-OVER PROTECTION STRUCTURE - machinery item

1шт.

10

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

HHCS - 3/4" - 10 NC x 5

1шт.

11

F42339

BUSHING

- insert

2шт.

12

F42340

INSERT

- rubber (Vibration dampener)

4шт.

13

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

14

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

HHCS - 3/4" - 10 NC x 5"

2шт.

15

F42339

BUSHING

- insert

2шт.

16

F42340

INSERT

- rubber (Vibration dampener)

4шт.

17

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

18

F93349

BRACKET - sheave mounting

2шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

22

REF

INSTRUCTION

SHEAVE - cable (Parts list Fig. 146)

1шт.
