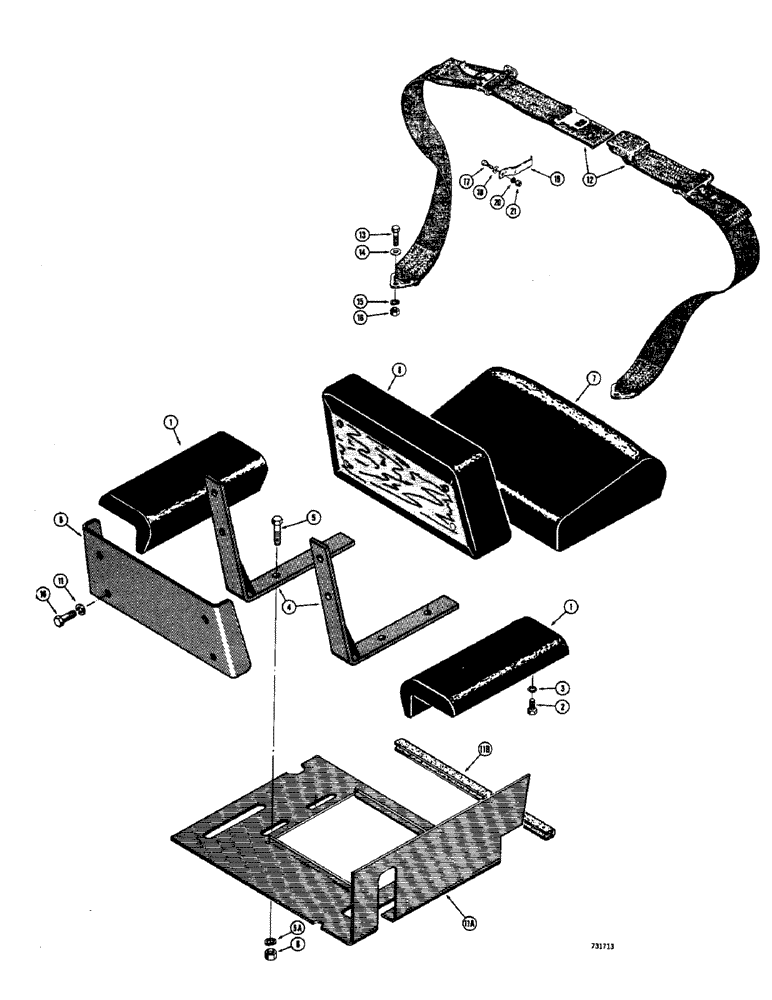

Запчасти Case 475 (122) - SEAT FRAME AND CUSHIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D35227

ARM

CUSHION - arm and hip

2шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

D35198

MOUNTING PARTS

BRACKET - seat mounting

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5a

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

7

D35226

SEAT

CUSHION - seat

1шт.

8

D44169

CUSHION

- backrest

1шт.

9

D35225

GUARD

SHIELD - backrest (If used)

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

11a

R26140

PANEL

PLATE - under seat

1шт.

11b

D35424

LINING

TRIM - quick edge

2шт.

12

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

13

F42236

STEP BOLT

BOLT - special, seat belts

2шт.

14

195-259

WASHER - standard wrot. (7/16") Plated, seat belts

2шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belts 7/16"

2шт.

16

425-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF) Plated, seat belts

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Seat belts Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

18

195-21

WASHER,5/16"

- flat, , Seat belts 5/16"

2шт.

19

R24720

HOOK

- seat belt retaining

2шт.

20

92-5

LOCK WASHER,5/16"

seat belts 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC, seat belts

2шт.
