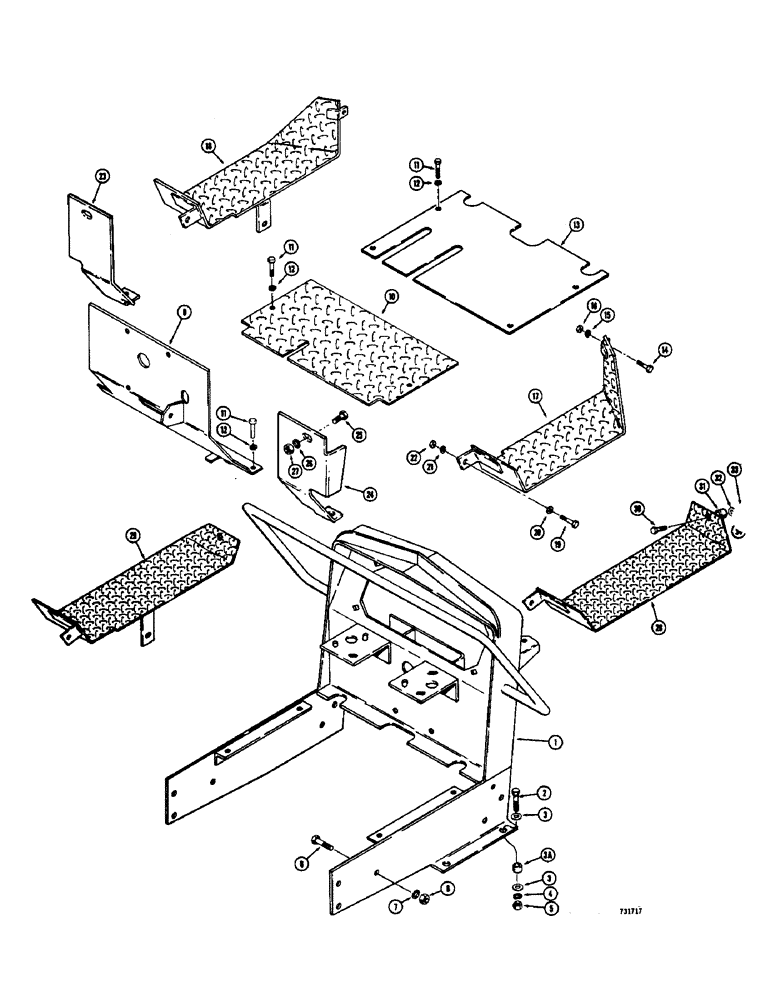

Запчасти Case 475 (118) - COWL, FLOOR PLATES AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R24399

COWL - crawler

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

3a

VB1055

SPACER - frame (Before tractor SN. 3049830 except ROPS models)

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

9

D35169

PLATE - heel

1шт.

10

D35167

PLATE

- floor, rear

1шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

R24398

PLATE

- floor, front (Models with hand throttle only)

1шт.

13

R32172

PLATE

- floor, front (Models with hand and foot throttle) Not shown

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

17

R24395

PLATE - step. R.H. (Before tractor SN. 3049830 except ROPS models)

1шт.

18

R24394

PLATE - step, L.H. (Before tractor SN. 3049830 except ROPS models)

1шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

20

915-33

WASHER - plain, 1/2"

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

23

R26121

PLATE - heel, L.H. (If used)

1шт.

24

R26125

PLATE - heel, R.H. (If used)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

28

F93353

PLATE - step, R.H., used tractor and after or previous rops models, Start Serial: 3049830

1шт.

29

F93352

PLATE - step, L.H., used tractor and after or previous rops models, Start Serial: 3049830

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" x 16 NC x 1-1/2", used tractor and after or previous rops models, Start Serial: 3049830

2шт.

31

F10140

SPACER, used tractor and after or previous rops models, Start Serial: 3049830

2шт.

32

195-25

WASHER,3/8"

- plain (), used tractor and afteror previous rops models 3/8", Start Serial: 3049830

2шт.

33

92-6

LOCK WASHER,3/8"

used tractor and after or previous rops models 3/8", Start Serial: 3049830

2шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), used tractor and after or previous rops models, Start Serial: 3049830

2шт.
