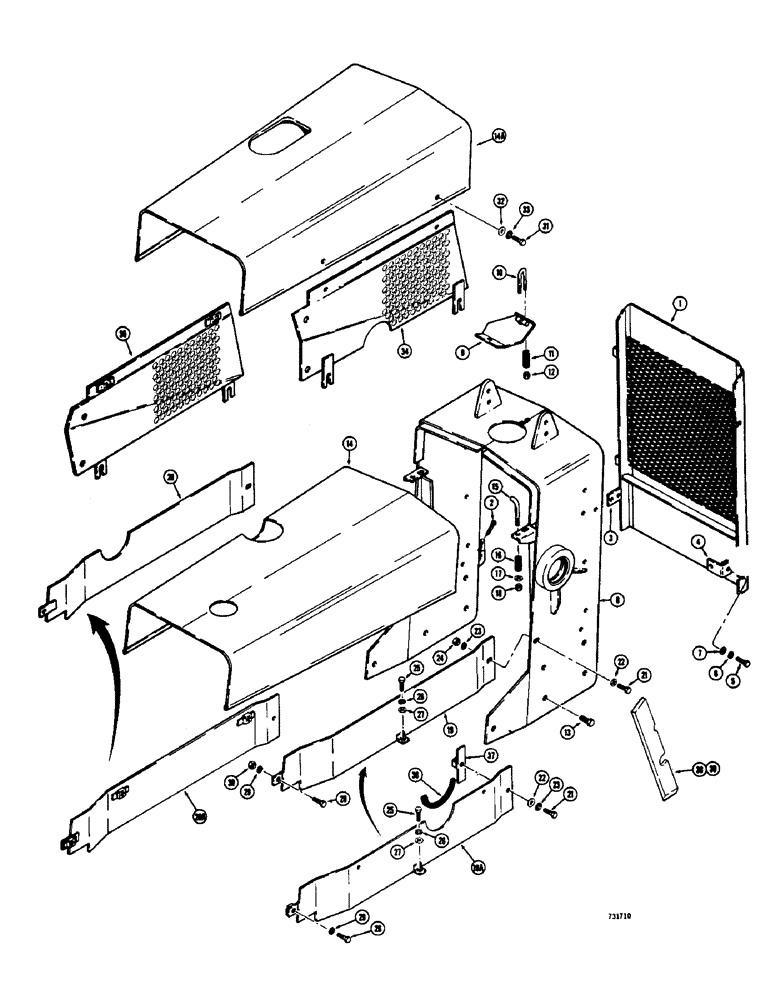

Запчасти Case 475 (116) - HOOD, SHROUD, GRILLE AND SCREENS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R25772

GRILLE - radiator (Models without dozer blade)

1шт.

1

R31285

GRILLE - radiator (Models with dozer blade)

1шт.

2

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3

R25762

BRACKET - grille mount, upper

1шт.

4

D35324

BRACKET - grille mount, lower

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1-1/4"

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

R24718

WASHER

- special

2шт.

8

R24460

SHROUD - radiator guard (Models without dozer blade)

1шт.

8

R31286

SHROUD - radiator guard (Models with dozer blade)

1шт.

9

D30074

LID

- radiator

1шт.

10

D35723

BOLT

- "U"

1шт.

11

23098

SPRING

- radiator lid

2шт.

12

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

13

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

10шт.

14

R24745

HOOD

- vertical air intake models

1шт.

14a

R31550

HOOD - horizontal air intake models

1шт.

15

D33958

BOLT

- special, holddown

4шт.

16

A34492

SPRING

- holddown

4шт.

17

195-25

WASHER,3/8"

- plain, 3/8"

4шт.

18

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

4шт.

19

R24763

PANEL

- side, R.H. (Early production)

1шт.

19a

R31534

PANEL - side, R.H. (Late production)

1шт.

20

R24764

PANEL

- side, L.H. (Early production)

1шт.

20a

R31535

PANEL

- side, L.H. (Late production)

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

R24718

WASHER

- special

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

R24718

WASHER

- special

2шт.

28

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

31

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

32

195-33

WASHER,1/2"

- flat () 1/2"

8шт.

33

92-8

LOCK WASHER,1/2"

8шт.

34

R31528

SHIELD

SCREEN - R.H.

1шт.

35

R31527

SHIELD

SCREEN - L.H.

1шт.

36

D35424

LINING

TRIM - quickedge, Serial Range: (Cut-length)

1шт.

37

R31540

STRAP - panel

2шт.

R31450

KIT

- rub plate, models with dozer blade

1шт.

38

R31078

LARGE PLATE

PLATE - rub, R.H.

1шт.

39

R31077

LARGE PLATE

PLATE - rub, L.H.

1шт.
