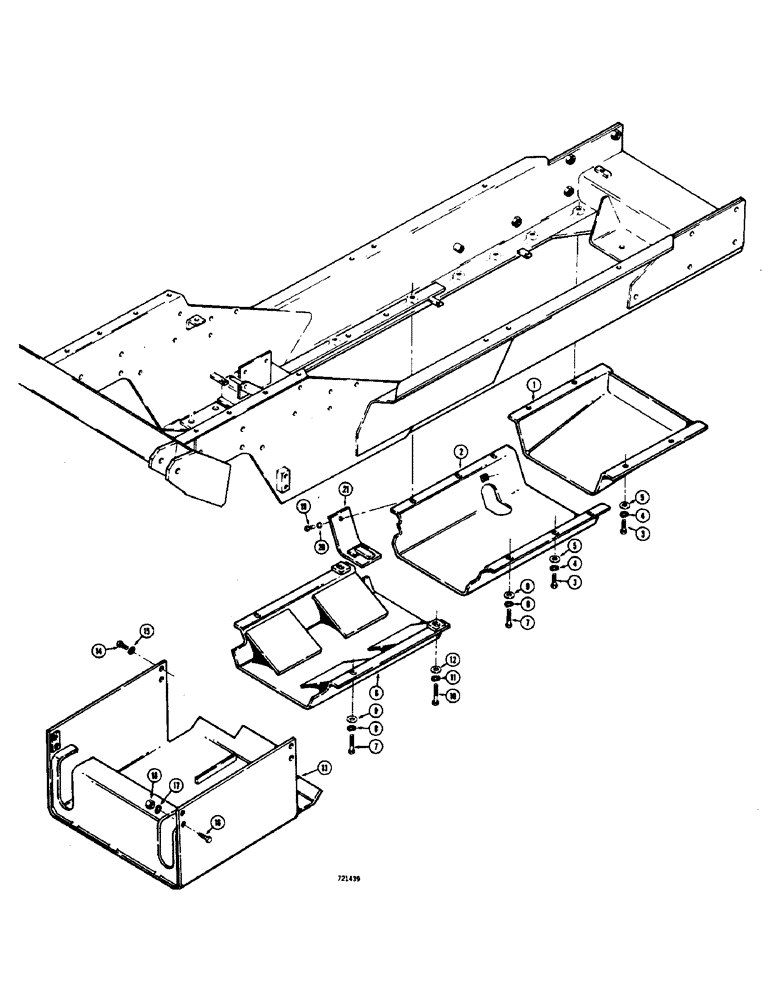

Запчасти Case 475 (114) - GUARDS, TRANSMISSION, CRANKCASE AND LIFT CYLINDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R25541

GUARD - engine, front

1шт.

2

R26100

GUARD

- crankcase

1шт.

3

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

NLS

NO LONGER SERVICED

- special

8шт.

6

D35162

GUARD

- transmission

1шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

D43266

WASHER

- special

4шт.

10

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

NLS

NO LONGER SERVICED

- special

2шт.

13

R24337

GUARD - lift cylinder

1шт.

14

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

25-1010

NUT,5/8"-11, G5

4шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

R26101

COVER - drain

1шт.
