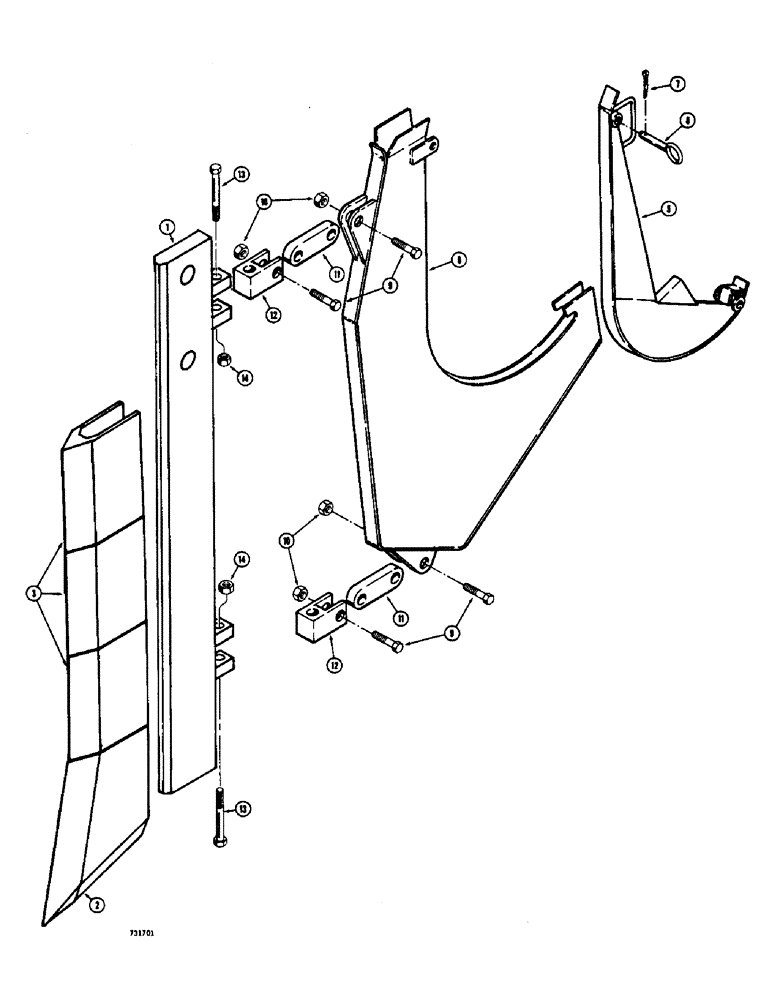

Запчасти Case 475 (181A) - CHUTES & BLADES, TRAC. SN. 3049850 & AFTER, SINGLE DEPTH STYLE BLADES, 2-1/2" WIDE X 24" COVER DEPTH (89) - TOOLS

H596767

BLADE

ASSY - Complete

1шт.

1

H596742

SHANK

Blade

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593756 kit for service)

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service)

3шт.

4

RESERVED

1шт.

H597369

SPARE PART AND GATE ASSY - Complete

1шт.

5

H597187

SPARE PART Chute

1шт.

6

H597294

SPARE PART Drop

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

1шт.

8

H590034

AXLE PIN

Gate retaining

1шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8

4шт.

10

131-1112

NUT,Jam, 3/4"-10

Hex

4шт.

11

H234146

DRAG LINK

, Serial Range: Chute-blade

2шт.

12

H234153

HINGE

Swivel block

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex

2шт.

H596809

HALF BLADE

ASSY - Complete, 2 1/2 inch wide x 30 inch cover depth

1шт.

1

H596783

SPARE PART Blade, 2 1/2 inch wide x 30 inch cover depth

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593756 kit for service), 2 1/2 inch wide x 30 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service), 2 1/2 inch wide x 30 inch cover depth

4шт.

4

RESERVED, 2 1/2 inch wide x 30 inch cover depth

1шт.

H597377

SPARE PART AND GATE ASSY - Complete, 2 1/2 inch wide x 30 inch cover depth

1шт.

5

H597195

SPARE PART Chute, 2 1/2 inch wide x 30 inch cover depth

1шт.

6

H597237

SPARE PART Drop, 2 1/2 inch wide x 30 inch cover depth

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

2 1/2 inch wide x 30 inch cover depth

1шт.

8

H590034

AXLE PIN

Gate retaining, 2 1/2 inch wide x 30 inch cover depth

1шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, 2 1/2 inch wide x 30 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

Hex, 2 1/2 inch wide x 30 inch cover depth

4шт.

11

H234146

DRAG LINK

Chute to blade, 2 1/2 inch wide x 30 inch cover depth

2шт.

12

H234153

HINGE

Swivel block, 2 1/2 inch wide x 30 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2 1/2 inch wide x 30 inch cover depth

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex, 2 1/2 inch wide x 30 inch cover depth

2шт.

H596841

BLADE

ASSY - Complete, 2 1/2 inch wide x 36 inch cover depth

1шт.

1

H596825

SHANK

Blade, 2 1/2 inch wide x 36 inch cover depth

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593756 kit for service), 2 1/2 inch wide x 36 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service), 2 1/2 inch wide x 36 inch cover depth

5шт.

4

RESERVED, 2 1/2 inch wide x 36 inch cover depth

1шт.

H597385

CHUTE ASSY.

AND GATE - Complete, 2 1/2 inch wide x 36 inch cover depth

1шт.

5

H597203

DOOR SEAL

GATE - chute, 2 1/2 inch wide x 36 inch cover depth

1шт.

6

H597260

CHUTE ASSY.

Drop, 2 1/2 inch wide x 36 inch cover depth

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

2 1/2 inch wide x 36 inch cover depth

1шт.

8

H590034

AXLE PIN

Gate retaining, 2 1/2 inch wide x 36 inch cover depth

1шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, 2 1/2 inch wide x 36 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

Hex, 2 1/2 inch wide x 36 inch cover depth

4шт.

11

H234146

DRAG LINK

Chute to blade, 2 1/2 inch wide x 36 inch cover depth

2шт.

12

H234153

HINGE

Swivel block, 2 1/2 inch wide x 36 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2 1/2 inch wide x 36 inch cover depth

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex, 2 1/2 inch wide x 36 inch cover depth

2шт.
