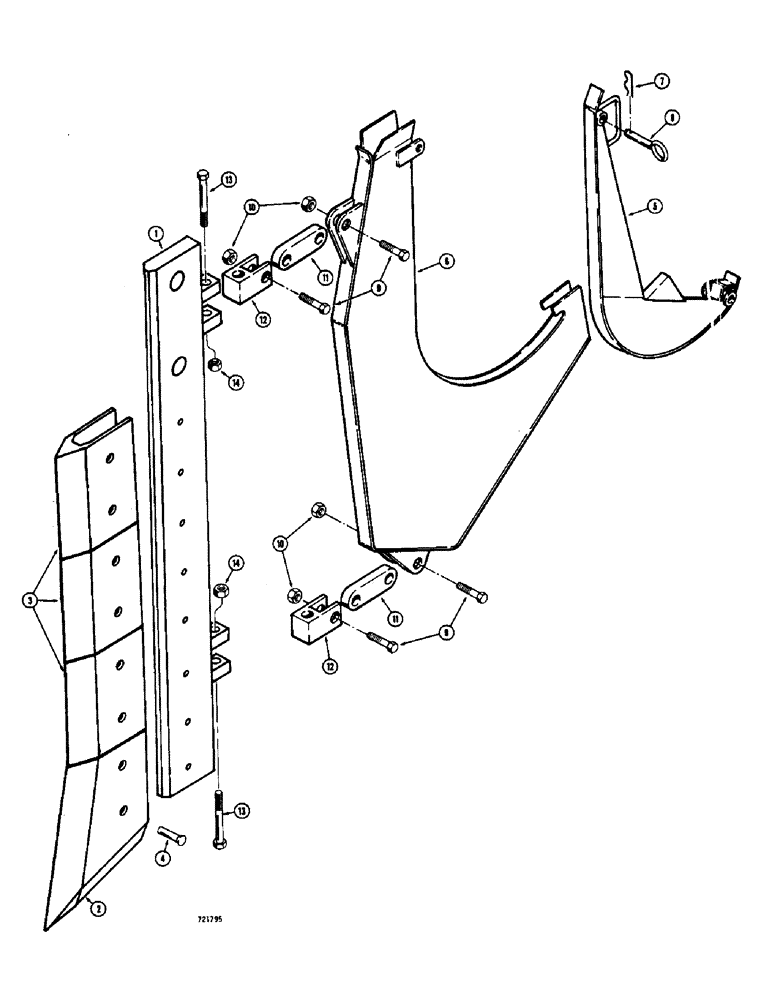

Запчасти Case 475 (180) - CHUTES AND BLADES, BEFORE TRACTOR SN. 3049850, 2-1/2" WIDE X 24" COVER DEPTH (89) - TOOLS

H581306

BLADE

ASSEMBLY - H596767 blade may be used

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

1

H590919

SHANK

- blade, H596742 shank may be used

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593756 kit for service)

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service)

4шт.

4

46-646

RIVET - countersunk (3/8" x 2-7/8")

10шт.

H594150

CHUTE AND GATE ASSEMBLY - complete

1шт.

5

H594135

GATE - chute

1шт.

6

H594143

CHUTE - drop

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin)

1шт.

8

H590034

AXLE PIN

PIN - gate retaining

1шт.

8a

H234252

RIVET

- link to chute (If used)

4шт.

9

H269407

BOLT

BOLT - special (3/4" - 10 NC x 1-3/4") Grade 8, if used

4шт.

10

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC) If used

4шт.

11

H234146

DRAG LINK

LINK -, Serial Range: chute-blade

2шт.

12

H234153

HINGE

- swivel block

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2" (Grade 8)

2шт.

14

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC)

2шт.

H581330

BLADE

ASSEMBLY - H596809 blade may be used, 2 1/2 inch wide x 30 inch cover depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

1

H590927

SHANK

- blade, H596783 shank may be used, 2 1/2 inch wide x 30 inch cover depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H493756 kit for service), 2 1/2 inch wide x 30 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service), 2 1/2 inch wide x 30 inch cover depth

5шт.

4

46-646

RIVET - countersunk (3/8" x 2-7/8"), 2 1/2 inch wide x 30 inch cover depth

12шт.

H594192

CHUTE AND GATE ASSEMBLY - complete, 2 1/2 inch wide x 30 inch cover depth

1шт.

5

H594184

GATE - chute, 2 1/2 inch wide x 30 inch cover depth

1шт.

6

H594176

CHUTE - drop, 2 1/2 inch wide x 30 inch cover depth

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin), 2 1/2 inch wide x 30 inch cover depth

1шт.

8

H590034

AXLE PIN

PIN - gate retaining, 2 1/2 inch wide x 30 inch cover depth

1шт.

8a

H234252

RIVET

- link to chute (If used), 2 1/2 inch wide x 30 inch cover depth

4шт.

9

H269407

BOLT

BOLT - special (3/4" - 10 NC x 1-3/4") Grade 8, if used, 2 1/2 inch wide x 30 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC) If used, 2 1/2 inch wide x 30 inch cover depth

4шт.

11

H234146

DRAG LINK

LINK - chute to blade, 2 1/2 inch wide x 30 inch cover depth

2шт.

12

H234153

HINGE

- swivel block, 2 1/2 inch wide x 30 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2" (Grade 8), 2 1/2 inch wide x 30 inch cover depth

2шт.

14

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC), 2 1/2 inch wide x 30 inch cover depth

2шт.

H589762

BLADE

ASSEMBLY - H596841 blade may be used, 2 1/2 inch wide x 36 inch cover depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

1

H590935

SHANK

- blade, H596825 shank may be used, 2 1/2 inch wide x 36 inch cover depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593756 kit for service), 2 1/2 inch wide x 36 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600858 kit for service), 2 1/2 inch wide x 36 inch cover depth

6шт.

4

46-646

RIVET - countersunk (3/8" x 2-7/8"), 2 1/2 inch wide x 36 inch cover depth

14шт.

H593699

CHUTE ASSY.

CHUTE AND GATE ASSEMBLY - complete, 2 1/2 inch wide x 36 inch cover depth

1шт.

5

H593897

GATE - chute, 2 1/2 inch wide x 36 inch cover depth

1шт.

6

H593913

CHUTE ASSY.

CHUTE - drop, 2 1/2 inch wide x 36 inch cover depth

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin), 2 1/2 inch wide x 36 inch cover depth

1шт.

8

H590034

AXLE PIN

PIN - gate retaining, 2 1/2 inch wide x 36 inch cover depth

1шт.

8a

H234252

RIVET

- link to chute (If used), 2 1/2 inch wide x 36 inch cover depth

4шт.

9

H269407

BOLT

BOLT - special (3/4" - 10 NC x 1-3/4") Grade 8, if used, 2 1/2 inch wide x 36 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC) If used, 2 1/2 inch wide x 36 inch cover depth

4шт.

11

H234146

DRAG LINK

LINK - chute to blade, 2 1/2 inch wide x 36 inch cover depth

2шт.

12

H234146

DRAG LINK

HINGE - swivel block, 2 1/2 inch wide x 36 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2" (Grade 8), 2 1/2 inch wide x 36 inch cover depth

2шт.

14

113-1146

NUT - hex., lock (3/4" - 10 NC), 2 1/2 inch wide x 36 inch cover depth

2шт.
