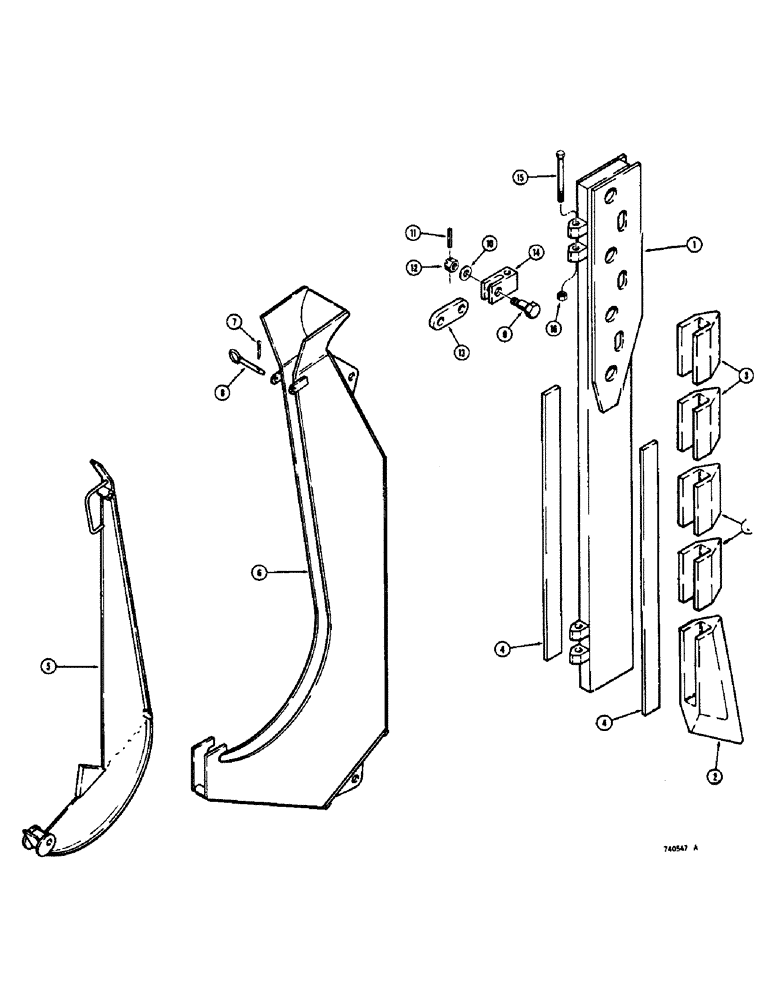

Запчасти Case 475 (179C) - CHUTE AND BLADE, TRACTOR SN 3049850 AND AFTER, MULTI-DEPTH STYLE BLADES (89) - TOOLS

H605899

BLADE AND CHUTE ASSEMBLY - machinery item

1шт.

H605931

BLADE

ASSEMBLY - complete

1шт.

1

H605949

SHANK

- blade

1шт.

2

H292193

TIP

BLADE TIP

1шт.

3

H292177

VALVE BLOCK

BLADE CAP SECTIONS

4шт.

4

H304857

BAR

- blade tips

2шт.

H600197

PLATE

CHUTE AND GATE ASSEMBLY - complete

1шт.

5

H597179

DOOR SEAL

GATE - chute

1шт.

6

H600189

EXTENSION

CHUTE - drop

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

8

H590026

AXLE PIN

PIN - gate retaining

1шт.

9

H290866

STEP BOLT

BOLT - shoulder (1" - 3/4" - 16NF x 2-1/2") Grade 8

4шт.

10

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat (3/4")

4шт.

11

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, 5/32" x 1 1/2", Slotted

4шт.

12

86632554

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF)

4шт.

13

H279323

LINK

-, Serial Range: chute-blade

2шт.

14

H279331

BLOCK

HINGE - swivel block

2шт.

15

28-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

HHCS - 3/4" - 16 NF x 5-1/2" (Grade 8)

2шт.

16

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex., lock (3/4" - 16 NF)

2шт.
