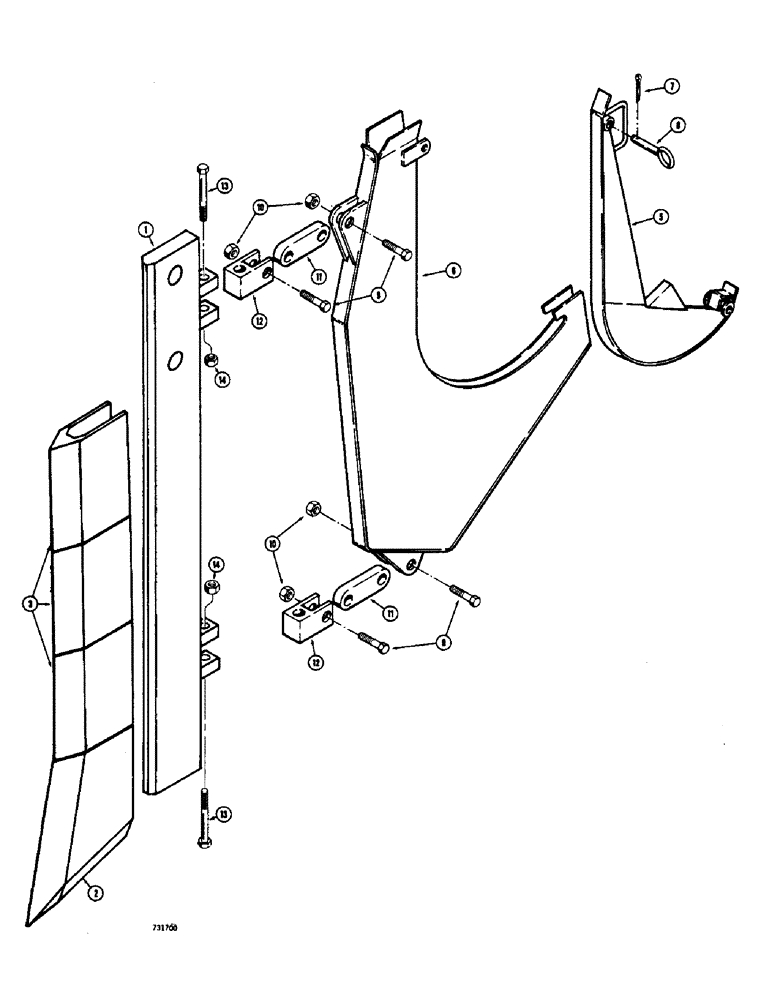

Запчасти Case 475 (179A) - CHUTES AND BLADES, TRACTOR SN. 3049850 AND AFTER, SINGLE (89) - TOOLS
№
Артикул
Название
Примечание
Количество
H596759
BLADE
ASSY - Complete
1шт.
1
H596742
SHANK
Blade
1шт.
2
REF
INSTRUCTION
POINT - blade (Use H593772 kit for service)
1шт.
3
REF
INSTRUCTION
CAP - blade (Use H600866 kit for service)
3шт.
4
RESERVED
1шт.
H597336
SPARE PART AND GATE ASSY - Complete
1шт.
5
H597153
SPARE PART Chute
1шт.
6
H597286
CHUTE ASSY.
Drop
1шт.
7
132-335
COTTER PIN,1/8" x 1 1/4"
1шт.
8
H590026
AXLE PIN
Gate retaining
1шт.
9
H269407
BOLT
Special (3/4"-10 NC x 1-3/4") Grade 8
4шт.
10
131-1112
NUT,Jam, 3/4"-10
Hex
4шт.
11
H234146
DRAG LINK
, Serial Range: Chute-blade
2шт.
12
H234153
HINGE
Swivel block
2шт.
13
113-785
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
2шт.
14
131-1112
NUT,Jam, 3/4"-10
Hex
2шт.
H596791
HALF BLADE
ASSY - complete, 2 inch wide x 30 inch cover depth
1шт.
1
H596783
SPARE PART Blade, 2 inch wide x 30 inch cover depth
1шт.
2
REF
INSTRUCTION
POINT - blade (Use H593772 kit for service), 2 inch wide x 30 inch cover depth
1шт.
3
REF
INSTRUCTION
CAP - blade (Use H600866 kit for service), 2 inch wide x 30 inch cover depth
4шт.
4
RESERVED, 2 inch wide x 30 inch cover depth
1шт.
H597344
CHUTE ASSY.
AND GATE - Complete, 2 inch wide x 30 inch cover depth
1шт.
5
H597161
SPARE PART Chute, 2 inch wide x 30 inch cover depth
1шт.
6
H597229
CHUTE ASSY.
Drop, 2 inch wide x 30 inch cover depth
1шт.
7
132-335
COTTER PIN,1/8" x 1 1/4"
2 inch wide x 30 inch cover depth
1шт.
8
H590026
AXLE PIN
Gate retaining, 2 inch wide x 30 inch cover depth
1шт.
9
H269407
BOLT
Special (3/4"-10 NC x 1-3/4") Grade 8, 2 inch wide x 30 inch cover depth
4шт.
10
131-1112
NUT,Jam, 3/4"-10
Hex, 2 inch wide x 30 inch cover depth
4шт.
11
H234146
DRAG LINK
Chute to blade, 2 inch wide x 30 inch cover depth
2шт.
12
H234153
HINGE
Swivel block, 2 inch wide x 30 inch cover depth
2шт.
13
113-785
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
2 inch wide x 30 inch cover depth
2шт.
14
131-1112
NUT,Jam, 3/4"-10
2 inch wide x 30 inch cover depth
2шт.
H596833
BLADE
ASSY - Complete, 2 inch wide x 36 inch cover depth
1шт.
1
H596825
SHANK
Blade, 2 inch wide x 36 inch cover depth
1шт.
2
REF
INSTRUCTION
POINT - blade (Use H593772 kit for service), 2 inch wide x 36 inch cover depth
1шт.
3
REF
INSTRUCTION
CAP - blade (Use H600866 kit for service), 2 inch wide x 36 inch cover depth
5шт.
4
RESERVED, 2 inch wide x 36 inch cover depth
1шт.
H597351
SPARE PART AND GATE ASSY - Complete, 2 inch wide x 36 inch cover depth
1шт.
5
H597179
DOOR SEAL
SPARE PART GATE - chute, 2 inch wide x 36 inch cover depth
1шт.
6
H597252
CHUTE ASSY.
Drop, 2 inch wide x 36 inch cover depth
1шт.
7
132-335
COTTER PIN,1/8" x 1 1/4"
2 inch wide x 36 inch cover depth
1шт.
8
132-335
COTTER PIN,1/8" x 1 1/4"
Gate retaining, 2 inch wide x 36 inch cover depth
1шт.
9
H269407
BOLT
Special (3/4"-10 NC x 1-3/4") Grade 8, 2 inch wide x 36 inch cover depth
4шт.
10
131-1112
NUT,Jam, 3/4"-10
Hex, 2 inch wide x 36 inch cover depth
4шт.
11
H234146
DRAG LINK
Chute to blade, 2 inch wide x 36 inch cover depth
2шт.
12
H234153
HINGE
Swivel block, 2 inch wide x 36 inch cover depth
2шт.
13
113-785
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
2 inch wide x 36 inch cover depth
2шт.
14
131-1112
NUT,Jam, 3/4"-10
Hex, 2 inch wide x 36 inch cover depth
2шт.
Выбрано товаров: 48
