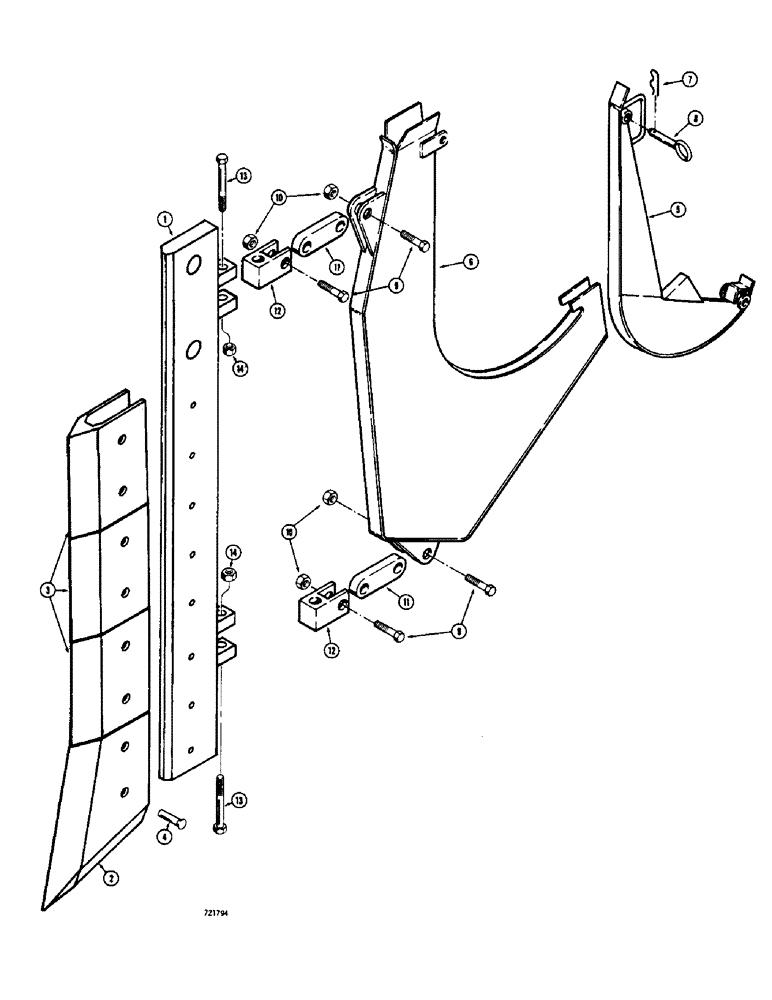

Запчасти Case 475 (178) - CHUTES AND BLADES, BEFORE TRACTOR SN. 3049850, 2" WIDE X 24" COVER DEPTH (89) - TOOLS

H581298

BLADE

ASSY - H596759 blade may be used

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

1

H590919

SHANK

Blade, H596742 shank may be used

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593772 kit for service)

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600866 kit for service)

4шт.

4

46-638

SPARE PART Countersunk (3/8" x 2-3/8")

10шт.

H594101

SPARE PART AND GATE ASSY - complete

1шт.

5

H594119

SPARE PART Chute

1шт.

6

H594093

CHUTE ASSY.

Drop

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin)

1шт.

8

H590026

AXLE PIN

Gate retaining

1шт.

8a

H234252

RIVET

Link to chute (If used)

4шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, if used

4шт.

10

131-1112

NUT,Jam, 3/4"-10

If used

4шт.

11

H234146

DRAG LINK

, Serial Range: Chute-blade

2шт.

12

H234153

HINGE

Swivel block

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex

2шт.

H581322

BLADE

ASSY - H596791 blade may be used

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

1

H590927

SHANK

Blade, H596783 shank may be used, 2 inch wide x 30 inch cover depth

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593772 kit for service), 2 inch wide x 30 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600866 kit for service), 2 inch wide x 30 inch cover depth

5шт.

4

46-638

SPARE PART Countersunk (3/8" x 2-3/8"), 2 inch wide x 30 inch cover depth

12шт.

H593988

CHUTE ASSY.

AND GATE - complete, 2 inch wide x 30 inch cover depth

1шт.

5

H593871

SPARE PART Chute, 2 inch wide x 30 inch cover depth

1шт.

6

H593863

CHUTE ASSY.

Drop, 2 inch wide x 30 inch cover depth

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin), 2 inch wide x 30 inch cover depth

1шт.

8

H590026

AXLE PIN

Gate retaining, 2 inch wide x 30 inch cover depth

1шт.

8a

H234252

RIVET

Chute to gate (If used), 2 inch wide x 30 inch cover depth

4шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, if used, 2 inch wide x 30 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

Hex, If used, 2 inch wide x 30 inch cover depth

4шт.

11

H234146

DRAG LINK

Chute to blade, 2 inch wide x 30 inch cover depth

2шт.

12

H234153

HINGE

Swivel block, 2 inch wide x 30 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2 inch wide x 30 inch cover depth

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex, 2 inch wide x 30 inch cover depth

2шт.

H588210

BLADE

ASSY - H596833 blade may be used, 2 inch wide x 36 inch cover depth

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

1

H590935

SHANK

Blade, H596825 shank may be used, 2 inch wide x 36 inch cover depth

1шт.

New shanks and blades use 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H26410 bushings.

1шт.

2

REF

INSTRUCTION

POINT - blade (Use H593772 kit for service), 2 inch wide x 36 inch cover depth

1шт.

3

REF

INSTRUCTION

CAP - blade (Use H600866 kit for service), 2 inch wide x 36 inch cover depth

6шт.

4

46-638

SPARE PART Countersunk (3/8" x 2-3/8"), 2 inch wide x 36 inch cover depth

14шт.

H593996

SPARE PART AND GATE ASSY - complete, 2 inch wide x 36 inch cover depth

1шт.

5

H593889

SPARE PART Chute, 2 inch wide x 36 inch cover depth

1шт.

6

H593905

CHUTE ASSY.

Drop, 2 inch wide x 36 inch cover depth

1шт.

7

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin), 2 inch wide x 36 inch cover depth

1шт.

8

H590026

AXLE PIN

Gate retaining, 2 inch wide x 36 inch cover depth

1шт.

8a

H234252

RIVET

Link to chute (If used), 2 inch wide x 36 inch cover depth

4шт.

9

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, if used, 2 inch wide x 36 inch cover depth

4шт.

10

131-1112

NUT,Jam, 3/4"-10

Hex, If used, 2 inch wide x 36 inch cover depth

4шт.

11

H234146

DRAG LINK

Chute to blade, 2 inch wide x 36 inch cover depth

2шт.

12

H234153

HINGE

Swivel block, 2 inch wide x 36 inch cover depth

2шт.

13

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2 inch wide x 36 inch cover depth

2шт.

14

131-1112

NUT,Jam, 3/4"-10

Hex, 2 inch wide x 36 inch cover depth

2шт.
