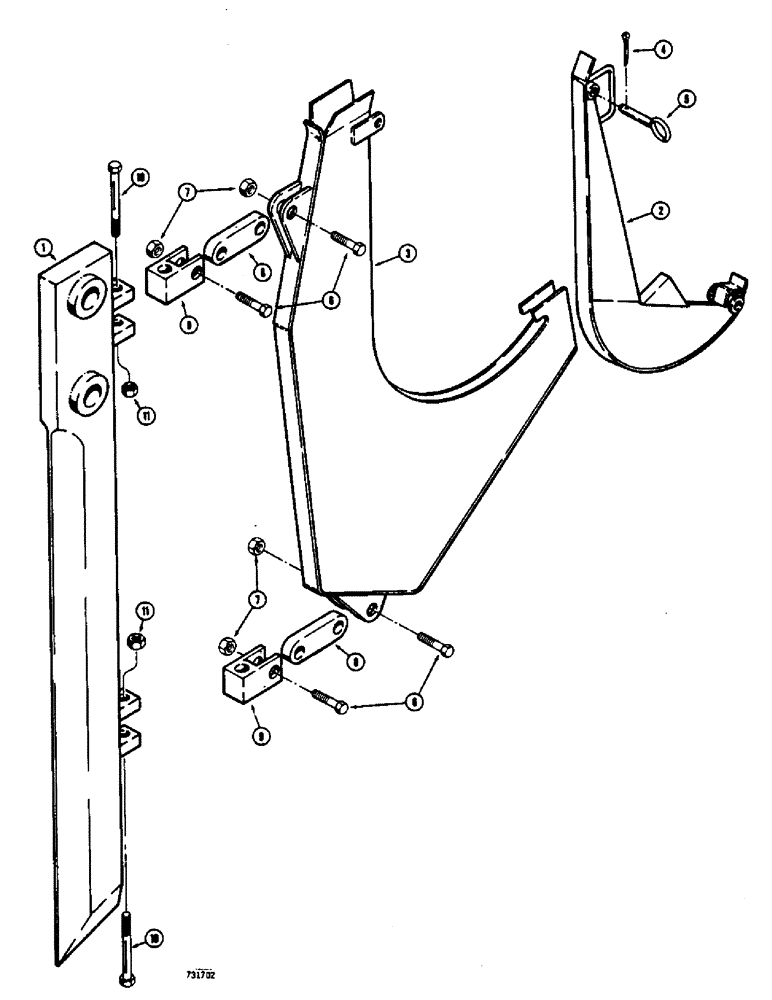

Запчасти Case 475 (177A) - CHUTES & BLADES, TRAC. SN. 3049850 & AFT., SINGLE DEPTH STYLE BLADES,1-1/2 " WIDE X 24" COVER DEPTH (89) - TOOLS

1

H597062

BLADE

- cutting

1шт.

H597302

CHUTE ASSY.

CHUTE AND GATE ASSEMBLY - complete

1шт.

2

H594333

GATE - chute

1шт.

3

H597278

CHUTE ASSY.

CHUTE - drop

1шт.

4

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

5

H590026

AXLE PIN

PIN - gate retaining

1шт.

6

H269407

BOLT

BOLT - 3/4" - 10 NC x 1-3/4" (Grade 8)

4шт.

7

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC)

4шт.

8

H234146

DRAG LINK

LINK -, Serial Range: chute-blade

2шт.

9

H234153

HINGE

- swivel block

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2" (Grade 8)

2шт.

11

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC)

2шт.

1

H597070

BLADE

- cutting, 1 1/2 inch wide x 30 cover depth

1шт.

H597310

GATE ASSY

CHUTE AND GATE ASSEMBLY - complete, 1 1/2 inch wide x 30 cover depth

1шт.

2

H594341

GATE - chute, 1 1/2 inch wide x 30 cover depth

1шт.

3

H597211

CHUTE - drop, 1 1/2 inch wide x 30 cover depth

1шт.

4

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", 1 1/2 inch wide x 30 cover depth

1шт.

5

H590026

AXLE PIN

PIN - gate retaining, 1 1/2 inch wide x 30 cover depth

1шт.

6

H269407

BOLT

BOLT - special (3/4" - 10 NC x 1-3/4") Grade 8, 1 1/2 inch wide x 30 cover depth

4шт.

7

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC), 1 1/2 inch wide x 30 cover depth

4шт.

8

H234146

DRAG LINK

LINK - chute to blade, 1 1/2 inch wide x 30 cover depth

2шт.

9

H234153

HINGE

- swivel block, 1 1/2 inch wide x 30 cover depth

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2", 1 1/2 inch wide x 30 cover depth

2шт.

11

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC), 1 1/2 inch wide x 30 cover depth

2шт.

1

H597088

BLADE

- cutting, 1 1/2 inch wide x 36 inch cover depth

1шт.

H597328

CHUTE ASSY.

CHUTE AND GATE ASSEMBLY - complete, 1 1/2 inch wide x 36 inch cover depth

1шт.

2

H594358

DOOR

GATE - chute, 1 1/2 inch wide x 36 inch cover depth

1шт.

3

G597245

CHUTE - drop, 1 1/2 inch wide x 36 inch cover depth

1шт.

4

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", 1 1/2 inch wide x 36 inch cover depth

1шт.

5

H590026

AXLE PIN

PIN - gate retaining, 1 1/2 inch wide x 36 inch cover depth

1шт.

6

H269407

BOLT

BOLT - special (3/4" - 10 NC x 1-3/4") Grade 8, 1 1/2 inch wide x 36 inch cover depth

4шт.

7

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC), 1 1/2 inch wide x 36 inch cover depth

4шт.

8

H234146

DRAG LINK

LINK - chute to blade, 1 1/2 inch wide x 36 inch cover depth

2шт.

9

H234153

HINGE

- swivel block, 1 1/2 inch wide x 36 inch cover depth

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2" (Grade 8), 1 1/2 inch wide x 36 inch cover depth

2шт.

11

131-1112

NUT,Jam, 3/4"-10

NUT - hex., lock (3/4" - 10 NC), 1 1/2 inch wide x 36 inch cover depth

2шт.
