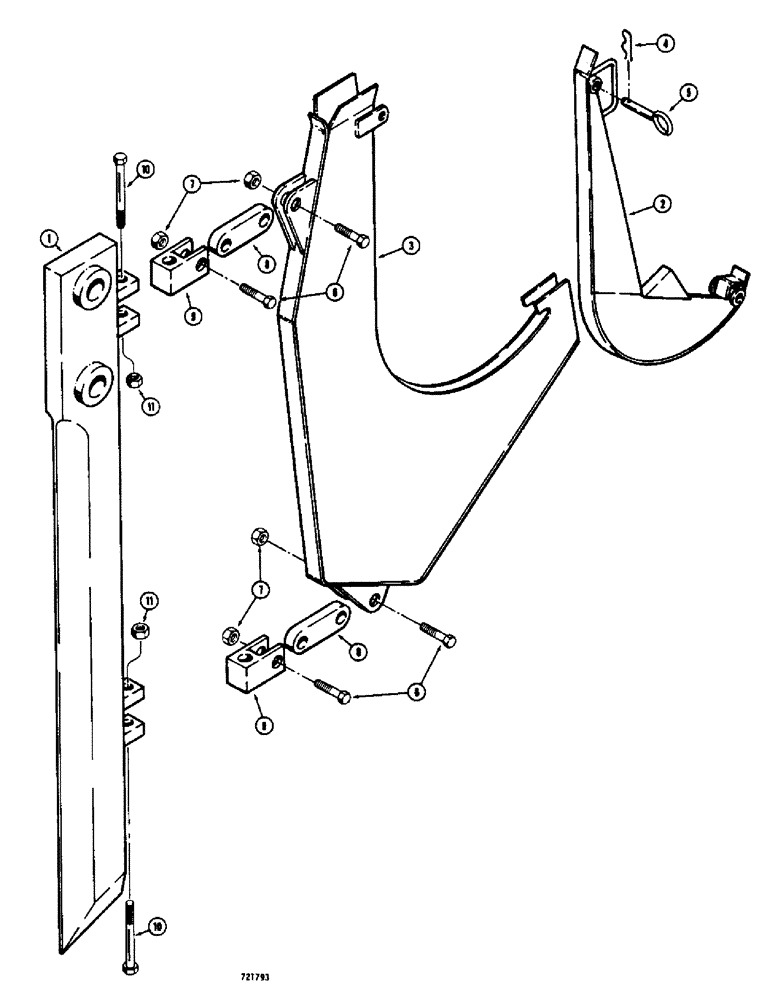

Запчасти Case 475 (176) - CHUTES AND BLADES, BEFORE TRACTOR SN. 3049850, 1-1/2" WIDE X 24" COVER DEPTH (89) - TOOLS

1

H594218

HALF BLADE

Cutting H597062 blade may be used for service

1шт.

New blades require 2" dia. pins, if 1-1/2" dia. pins are used, also order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

H594309

CHUTE ASSY.

AND GATE - complete

1шт.

2

H594333

SPARE PART Chute

1шт.

3

H594275

CHUTE ASSY.

Drop

1шт.

4

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin)

1шт.

5

H590026

AXLE PIN

Gate retaining

1шт.

5a

H234252

RIVET

Link to chute (If used)

4шт.

6

H269407

BOLT

3/4"-10 NC x 1-3/4" (Grade 8), If used

4шт.

7

131-1112

NUT,Jam, 3/4"-10

Hex, If used

4шт.

8

H234146

DRAG LINK

, Serial Range: Chute-blade

2шт.

9

H234153

HINGE

Swivel block

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

3/4"-10 NC x 4-1/4" (Grade 8)

2шт.

11

131-152

HARDWARE

NUT - hex., lock (3/4"-10 NC)

2шт.

1

H594226

BLADE

Cutting H597070 blade may be used for service, 1 1/2 inch wide x 30 inch depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

H594317

CHUTE ASSY.

AND GATE - complete, 1 1/2 inch wide x 30 inch depth

1шт.

2

H594341

SPARE PART Chute, 1 1/2 inch wide x 30 inch depth

1шт.

3

H594283

CHUTE ASSY.

Drop, 1 1/2 inch wide x 30 inch depth

1шт.

4

REF

INSTRUCTION

PIN - hair (Use 132-335 cotter pin), 1 1/2 inch wide x 30 inch depth

1шт.

5

H590026

AXLE PIN

Gate retaining, 1 1/2 inch wide x 30 inch depth

1шт.

5a

H234252

RIVET

Link to chute (If used), 1 1/2 inch wide x 30 inch depth

4шт.

6

H269307

BOLT - Special (3/4"-10 NC x 1-3/4") Grade 8, if used, 1 1/2 inch wide x 30 inch depth

4шт.

7

131-1112

NUT,Jam, 3/4"-10

Hex, If used, 1 1/2 inch wide x 30 inch depth

4шт.

8

H234146

DRAG LINK

Chute to blade, 1 1/2 inch wide x 30 inch depth

2шт.

9

H234153

HINGE

Swivel block, 1 1/2 inch wide x 30 inch depth

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

1 1/2 inch wide x 30 inch depth

2шт.

11

131-152

HARDWARE

NUT - hex., lock (3/4"-10 NC), 1 1/2 inch wide x 30 inch depth

2шт.

1

H594234

BLADE

Cutting H597088 blade may be used for service, 1 1/2 inch wide x 36 inch cover depth

1шт.

New blades use 2" dia. mount pins, if 1-1/2" dia. mount pins are being used, order H597393 kit. H597393 kit consist of (2) H276410 bushings.

1шт.

H594325

CHUTE ASSY.

AND GATE - complete, 1 1/2 inch wide x 36 inch cover depth

1шт.

2

H594358

DOOR

GATE - chute, 1 1/2 inch wide x 36 inch cover depth

1шт.

3

H594291

CHUTE ASSY.

Drop, 1 1/2 inch wide x 36 inch cover depth

1шт.

4

REF

INSTRUCTION

PIN - hair (Used 132-335 cotter pin), 1 1/2 inch wide x 36 inch cover depth

1шт.

5

H590026

AXLE PIN

Gate retaining, 1 1/2 inch wide x 36 inch cover depth

1шт.

5a

H234252

RIVET

Link to chute (If used), 1 1/2 inch wide x 36 inch cover depth

4шт.

6

H269407

BOLT

Special (3/4"-10 NC x 1-3/4") Grade 8, if used, 1 1/2 inch wide x 36 inch cover depth

4шт.

7

131-1112

NUT,Jam, 3/4"-10

Hex, If used, 1 1/2 inch wide x 36 inch cover depth

4шт.

8

H234146

DRAG LINK

Chute to blade, 1 1/2 inch wide x 36 inch cover depth

2шт.

9

H234153

HINGE

Swivel block, 1 1/2 inch wide x 36 inch cover depth

2шт.

10

113-785

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

1 1/2 inch wide x 36 inch cover depth

2шт.

11

131-152

HARDWARE

NUT - hex, lock (3/4"-10 NC), 1 1/2 inch wide x 36 inch cover depth

2шт.
