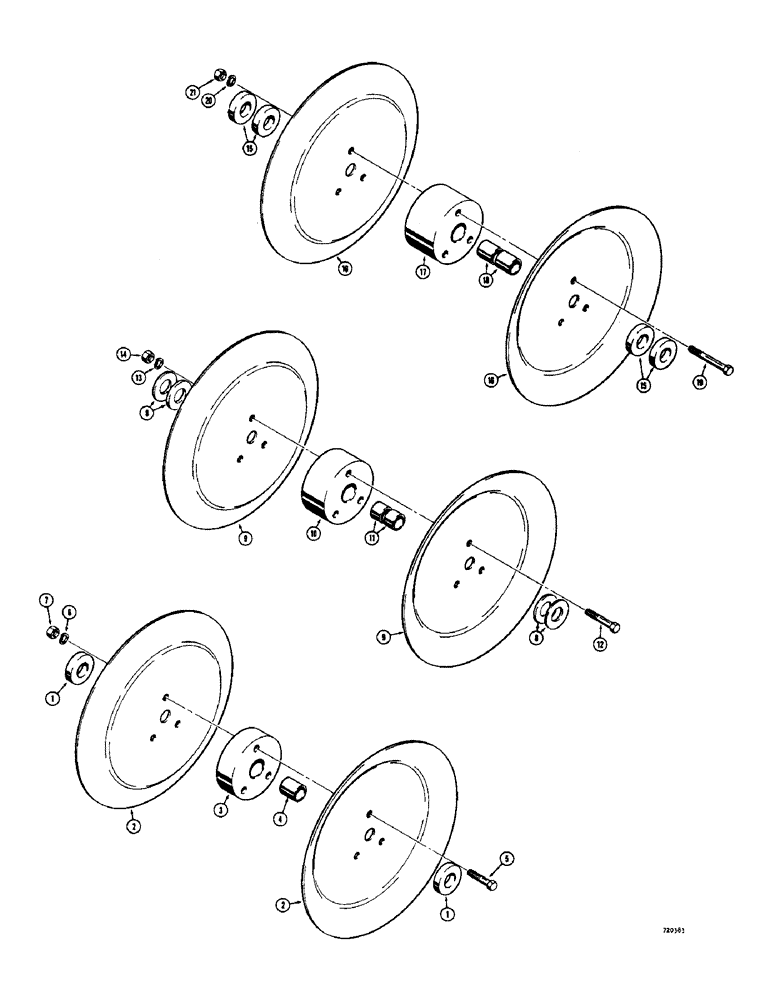

Запчасти Case 475 (146) - SHEAVES, 1" SHEAVE (89) - TOOLS

R5241

X

KIT -" sheave

2шт.

For 1 1/2 Sheave Kit number should read R5242.

1шт.

1

R26237

SPACER

- sheave

2шт.

R26220

SHEAVE

ASSEMBLY - complete

1шт.

2

R26231

SHEAVE

HALF

2шт.

R26223

SPACER ASSEMBLY - sheave

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - sheave

1шт.

4

R26240

BUSHING - sheave

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

R2542

KIT - 1 1/2 inch sheave

2шт.

8

195-45

WASHER,3/4"

1 1/2 inch sheave 3/4"

4шт.

R26221

SHEAVE

ASSEMBLY - complete, 1 1/2 inch

1шт.

9

R26231

SHEAVE

HALF, 1 1/2 inch

2шт.

R26224

SPACER ASSEMBLY - sheave, 1 1/2 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - sheave, 1 1/2 inch

1шт.

11

L15247

BUSHING

- sheave, 1 1/2 inch

2шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", 1 1/2 inch sheave

3шт.

13

92-6

LOCK WASHER,3/8"

1 1/2 inch sheave 3/8"

3шт.

14

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC, 1 1/2 inch sheave

3шт.

15

R26237

SPACER

- sheave, 2 inch

4шт.

R26222

SHEAVE

ASSEMBLY - complete, 2 inch

2шт.

16

R26231

SHEAVE

SHEALVE HALF, 2 inch

2шт.

R26225

SPACER ASSEMBLY - sheave, 2 inch

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - sheave, 2 inch

1шт.

18

R26240

BUSHING - sheave, 2 inch

2шт.

19

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4", 2 inch sheave

3шт.

20

92-6

LOCK WASHER,3/8"

2 inch sheave 3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC, 2 inch sheave

3шт.
