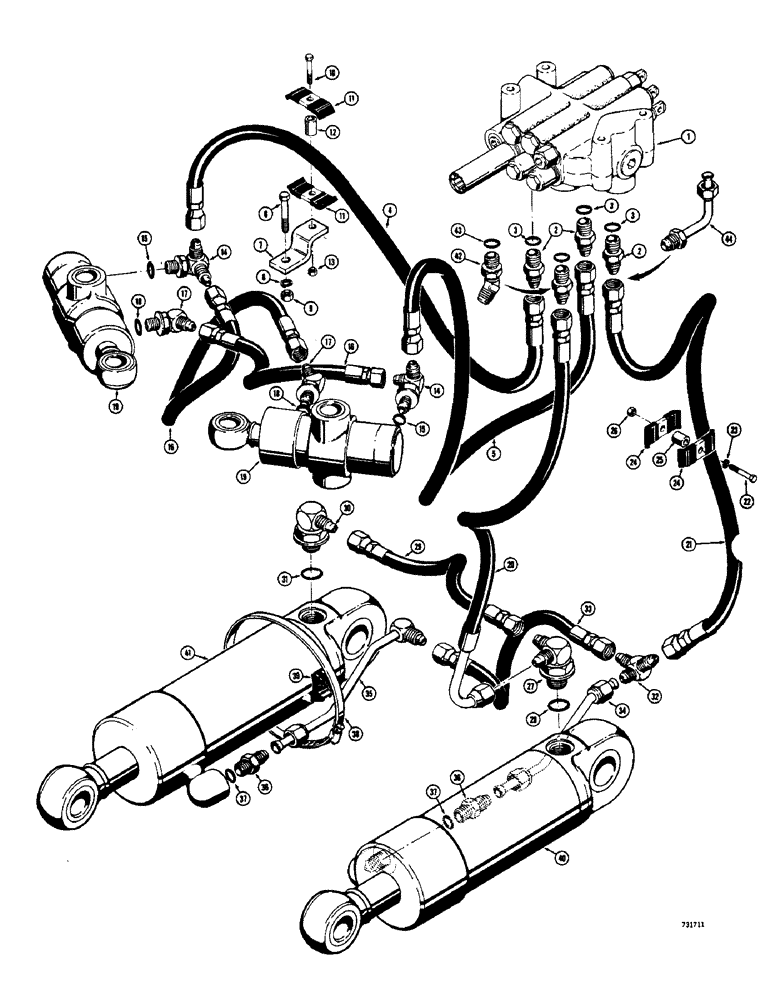

Запчасти Case 475 (142) - CABLE PLOW - SWING AND LIFT HYDRAULICS (89) - TOOLS

1

R24354

SPARE PART Hydraulic, 3 spool (Parts list Fig. 158)

1шт.

1

R31182

VALVE

Hydraulic, 4 spool (Parts list Fig. 158(1), Not shown

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, straight

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

NLS

NO LONGER SERVICED

Valve to LH swing cylinder (65" long)

1шт.

5

R24291

HOSE ASSY.

Valve to RH swing cylinder (57" long)

1шт.

6

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

1шт.

7

R24292

SPARE PART Clamp retaining

1шт.

8

92-10

LOCK WASHER,5/8"

1шт.

9

131-14

LOCK NUT,5/8"-11, GC

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

D40236

CLAMP

Hose

2шт.

12

D36524

BUSHING

SPACER - clamp

1шт.

13

131-6

LOCK NUT,3/8"-16, GC

1шт.

14

D53471

TEE

Special

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D28524

HOSE

Crossover (21" long)

2шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

CYLINDER - swing (See Figs. 170 and 171A for proper cylinders)

2шт.

20

R24296

HOSE

At valve, front port (32" long)

1шт.

21

37405

HOSE

At valve, rear port (36" long)

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

23

195-25

WASHER,3/8"

1шт.

24

D40236

CLAMP

Hose (If used)

2шт.

25

D36524

BUSHING

SPACER - hose (If used)

1шт.

26

131-6

LOCK NUT,3/8"-16, GC

1шт.

27

R24297

FITTING

TEE - special

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

29

D39081

HOSE ASSY.

Crossover, to closed end of cylinders (19-1/8" long)

1шт.

30

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adjustable

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

32

R24295

FITTING

TEE - special

1шт.

33

R25534

HOSE ASSY.

Crossover, to rod end of cylinders (12-1/2" long)

1шт.

34

R24300

TUBE,.625" OD

Rod end of cylinder, RH

1шт.

35

R24298

TUBE,0.625" OD

Rod end of cylinder, LH

1шт.

36

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Straight, male

2шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

38

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

Screw type

2шт.

39

D38648

BLOCK

SADDLE - rubber

2шт.

40

REF

INSTRUCTION

CYLINDER - lift, LH (See Figs. 168 and 169A for proper cylinders)

1шт.

41

REF

INSTRUCTION

CYLINDER - lift, RH (See Figs. 168 and 169A for proper cylinder)

1шт.

42

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, late production

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Late production

1шт.

44

R31261

SPARE PART Hydraulic, at valve, late production

1шт.
