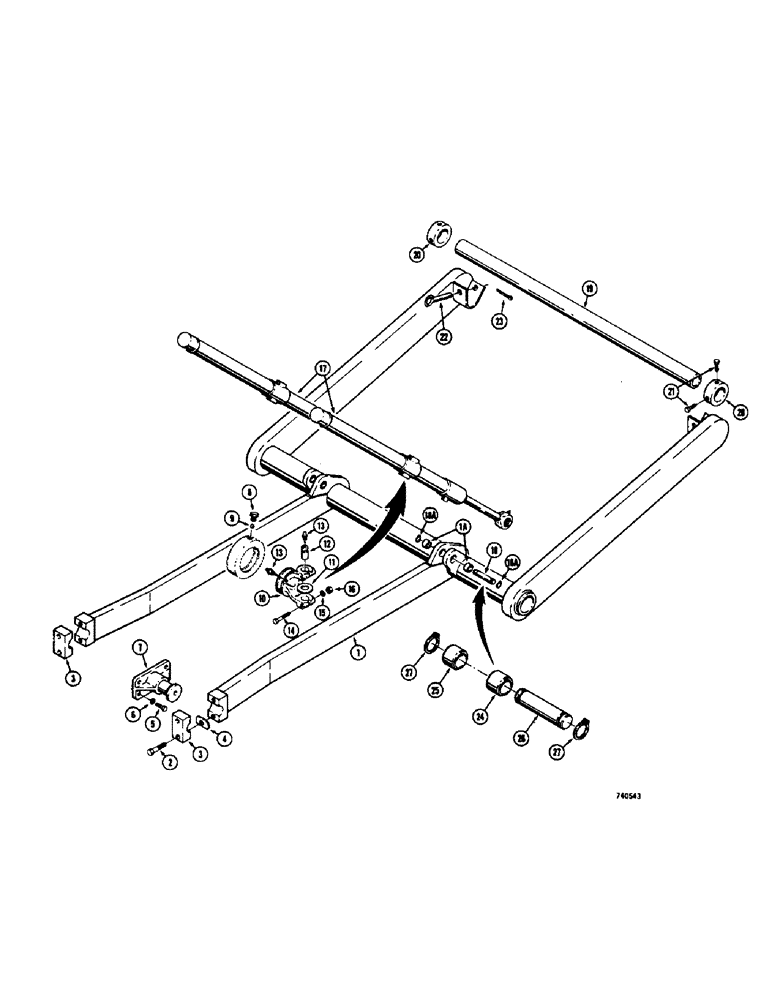

Запчасти Case 475 (137A) - REEL CARRIER - MECHANICAL (89) - TOOLS

1

R24377

SPARE PART "C" FRAME - carrier reel (No bushing in lift lugs) Service with R31428 kit

1шт.

1

R31160

CARRIER

"C" FRAME - carrier reel (Has bushings in lift lugs)

1шт.

1a

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

Cylinder mounting

4шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

3

D40376

CAP

"C" frame

2шт.

4

D34794

SHIM,1/32" Thk

1шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

6

92-10

LOCK WASHER,5/8"

8шт.

7

D50535

TRUNNION

Push, "C" frame

2шт.

8

D28481

PLUG

Special

2шт.

9

211-17

BALL,3/4" Dia

Steel

38шт.

10

D36155

TRUNNION

Inner race

3шт.

11

D24516

WASHER

Thrust

4шт.

12

D24508

PIN,31.74mm OD x 50.8mm L

, Serial Range: Trunnion-cylinder

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

6шт.

14

13-646

BOLT,Hex, 3/8" - 16 x 2-7/8", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

4шт.

17

REF

INSTRUCTION

CYLINDER - lift (See Figs. 166 and 167A for proper cylinders)

2шт.

18

D34797

PIN

Cylinder to R24377 frame

2шт.

18

D46467

PIN

Cylinder to R31160 frame

2шт.

18a

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

Snap, D34797 pin

4шт.

18a

D26918

SNAP RING,#125, Ext

D46467 pin

4шт.

19

R24392

BAR

SPARE PART Reel carrier

1шт.

20

R24390

STOP

Reel position

2шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

R26247

AXLE PIN

SPARE PART Bar retaining

2шт.

23

132-48

COTTER PIN,1/8" x 1"

2шт.

R31428

KIT

Carrier reel, R31428

1шт.

R31160

CARRIER

"C" frame - carrier reel (See item 1), R31428 kit

1шт.

24

A31082

BUSHING

Frame, R31428 carrier kit

2шт.

25

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

Frame, R31428 carrier kit

2шт.

26

R31347

AXLE PIN

Lift cylinder to frame, R31428 carrier kit

2шт.

27

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

Snap, R31428 carrier kit

4шт.
