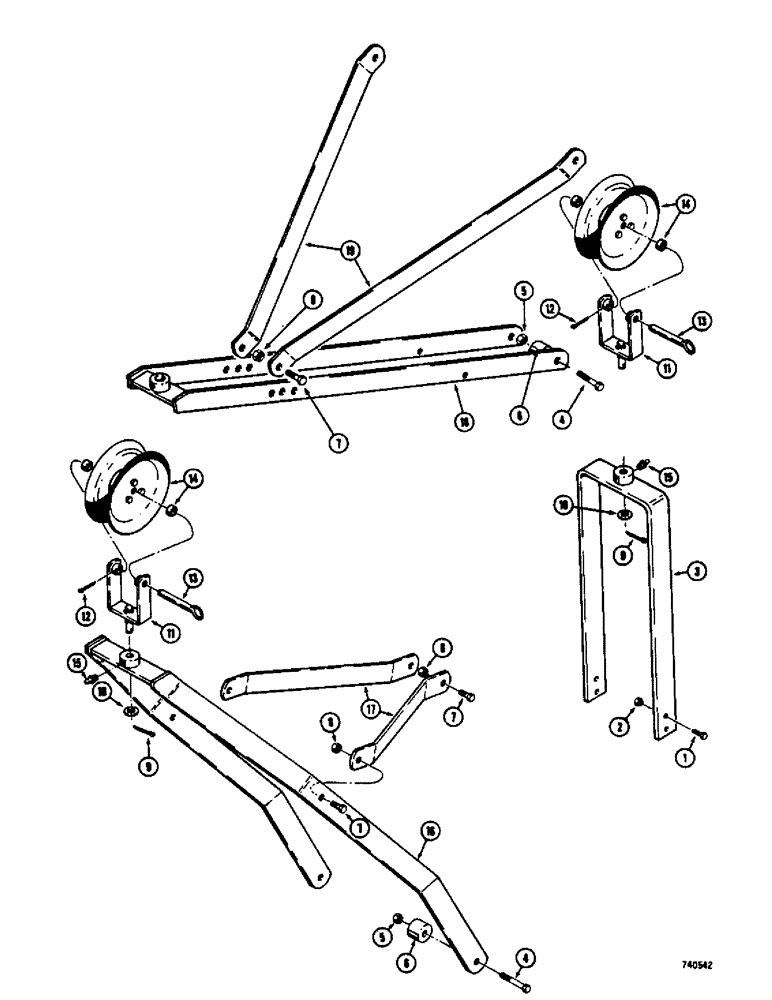

Запчасти Case 475 (136) - CABLE CARRIER (89) - TOOLS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

2

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8"-11 NC)

4шт.

3

R24360

SPARE PART Guide wheel mounting, front

1шт.

4

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

5

230-41112

LOCK NUT,3/4"-10, GA

2шт.

6

R24376

SPARE PART Mounting

2шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

8

230-41112

LOCK NUT,3/4"-10, GA

4шт.

9

132-95

COTTER PIN,3/16" x 1 1/2"

2шт.

10

D30196

WASHER

Special

2шт.

11

R26229

PIVOT

SWIVEL - guide wheel

2шт.

12

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

2шт.

13

R26236

SHAFT

Guide wheel

2шт.

14

REF

INSTRUCTION

WHEEL ASSEMBLY - guide, sheave (Parts list Fig. 146)

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

16

R24369

SPARE PART BRACKET - guide, wheel, used before tractor except ROPS models, Start Serial: 3049830

1шт.

17

R24375

SPARE PART Tension, used before tractor except ROPS models, Start Serial: 3049830

2шт.

18

R29616

SPARE PART BRACKET - guide wheel, used tractor and after and on all ROPS models, Start Serial: 3049830

1шт.

19

R29606

SPARE PART Tension, used tractor and after and on all ROPS models, Start Serial: 3049830

2шт.
