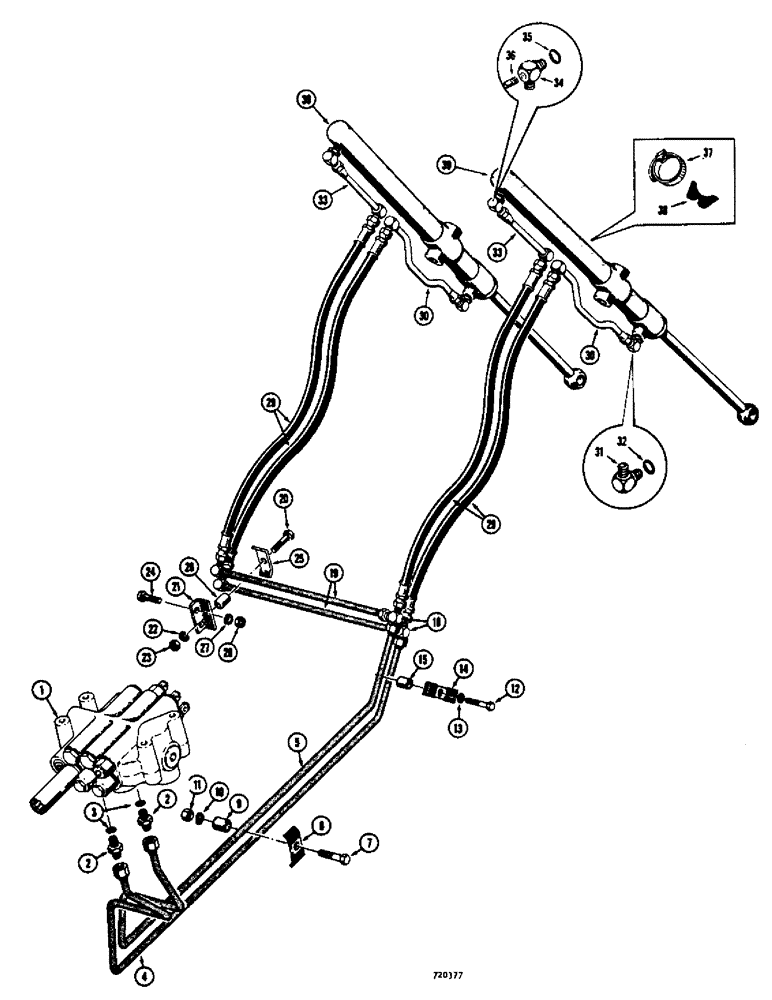

Запчасти Case 475 (138) - DOZER BLADE AND REEL CARRIER LIFT HYDRAULICS (86) - DOZER
№
Артикул
Название
Примечание
Количество
1
R24354
SPARE PART Hydraulic, 3 spool (Parts list Fig. 158)
1шт.
1
R31182
VALVE
Hydraulic, 4 spool (Parts list Fig. 158 (1) Not shown
1шт.
2
2185062
CONNECTOR - male, straight
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
4
R25539
TUBE ASSY.
SPARE PART At valve, rear port
1шт.
5
R25537
TUBE
SPARE PART At valve, front port
1шт.
6
RESERVED
1шт.
7
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
1шт.
8
D31782
FIXING BRACKET
CLAMP - tube
2шт.
9
D35228
SPACER
Clamp
1шт.
10
92-8
LOCK WASHER,1/2"
1шт.
11
25-108
NUT,1/2"-13, G5
1шт.
12
13-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
1шт.
13
92-5
LOCK WASHER,5/16"
1шт.
14
R17319
CLAMP
Tube
1шт.
15
D33552
BUSHING
SPACER - tube
1шт.
16
RESERVED
1шт.
17
RESERVED
1шт.
18
218-595
TEE,7/8"-14, 37 Degree
Tube, crossover
2шт.
19
R25535
SPARE PART Crossover
2шт.
20
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
21
D35164
BRACKET - clamp
1шт.
22
92-6
LOCK WASHER,3/8"
2шт.
23
25-106
NUT,3/8"-16, G5
2шт.
24
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
25
R16916
SPARE PART CLAMP - tube
1шт.
26
D33552
BUSHING
SPACER - clamp
1шт.
27
92-5
LOCK WASHER,5/16"
1шт.
28
9635082
NUT,5/16" - 18, Gr 5
1шт.
29
L46723
HOSE
Crossover to cylinders (42" long)
4шт.
30
D36138
HOSE ASSY.
TUBE - at cylinder, rod end
2шт.
31
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Adjustable
3шт.
32
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
33
D34747
TUBE
At cylinder, closed end
2шт.
34
R19576
FITTING
ELBOW - adjustable
1шт.
35
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
36
221-11
PLUG,Sq Hd, 1/8"-27
(1/8" NPT)
1шт.
37
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
Screw type
4шт.
38
D38648
BLOCK
SADDLE - tube, rubber
4шт.
39
REF
INSTRUCTION
CYLINDER - lift (See Figs. 166 and 167A for proper cylinders)
2шт.
Выбрано товаров: 40
