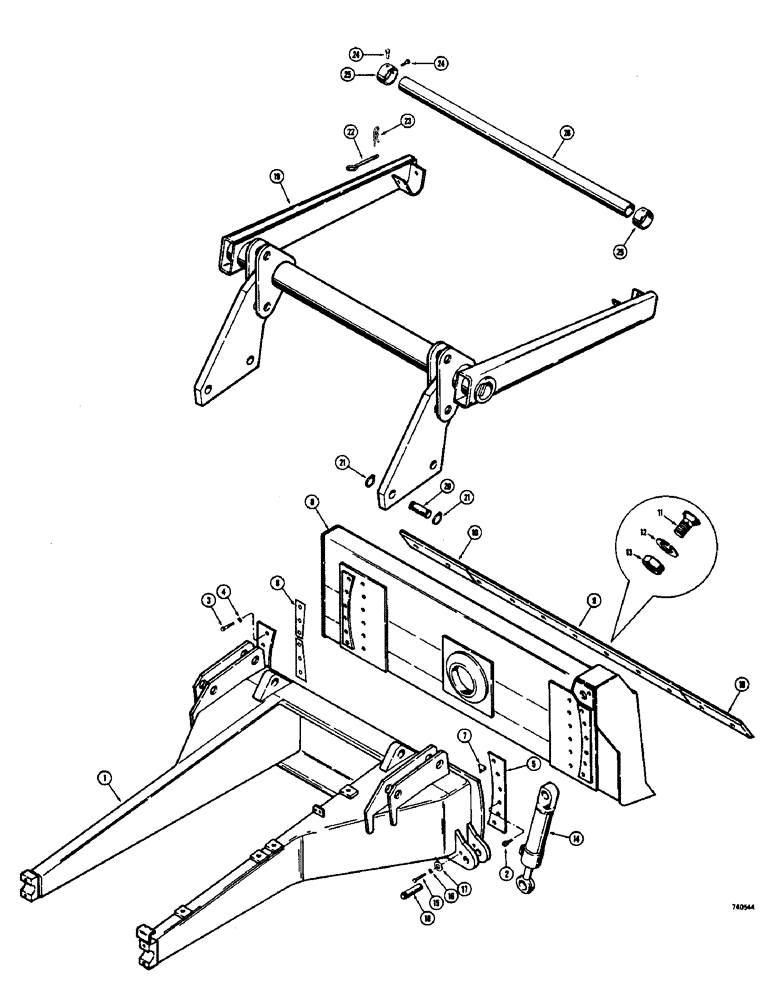

Запчасти Case 475 (137E) - DOZING BLADE AND REEL CARRIER PARTS (86) - DOZER

1

REF

INSTRUCTION

"C" FRAME - dozer (See Fig. 137C)

1шт.

2

164-82

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 1 3/4"

4шт.

3

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

4

92-10

LOCK WASHER,5/8"

8шт.

5

D47764

PLATE ASSY.

Guide

2шт.

6

D47911

SHIM,.0359" Thk

1шт.

7

D42402

GAUGE

Leveling

1шт.

8

31043

SPARE PART BLADE - dozer

1шт.

9

R31003

SPARE PART BLADE - cutting, center

1шт.

10

R29742

BLADE

Cutting, end

2шт.

11

19-828

BOLT,1/2"-13 x 1 3/4", G5

Plow (1/2"-13 NC x 1-3/4")

13шт.

12

92-8

LOCK WASHER,1/2"

13шт.

13

25-108

NUT,1/2"-13, G5

13шт.

14

G34345

HYDRAULIC CYLINDER

Tilt (Parts list Fig. 167C)

1шт.

15

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

16

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

17

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

RETAINER - pin

2шт.

18

D34796

PIN

Tilt cylinder mounting

2шт.

19

R33105

SPARE PART Reel

1шт.

20

D27668

PIN

Carrier mounting

4шт.

21

D25279

SNAP RING,M35, Int

8шт.

22

R26247

AXLE PIN

SPARE PART Bar retaining

2шт.

23

136-160

COTTER PIN,Int, 13/64" x .156"

2шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

R24390

STOP

Reel

2шт.

26

R24392

BAR

SPARE PART Reel carrier

1шт.
