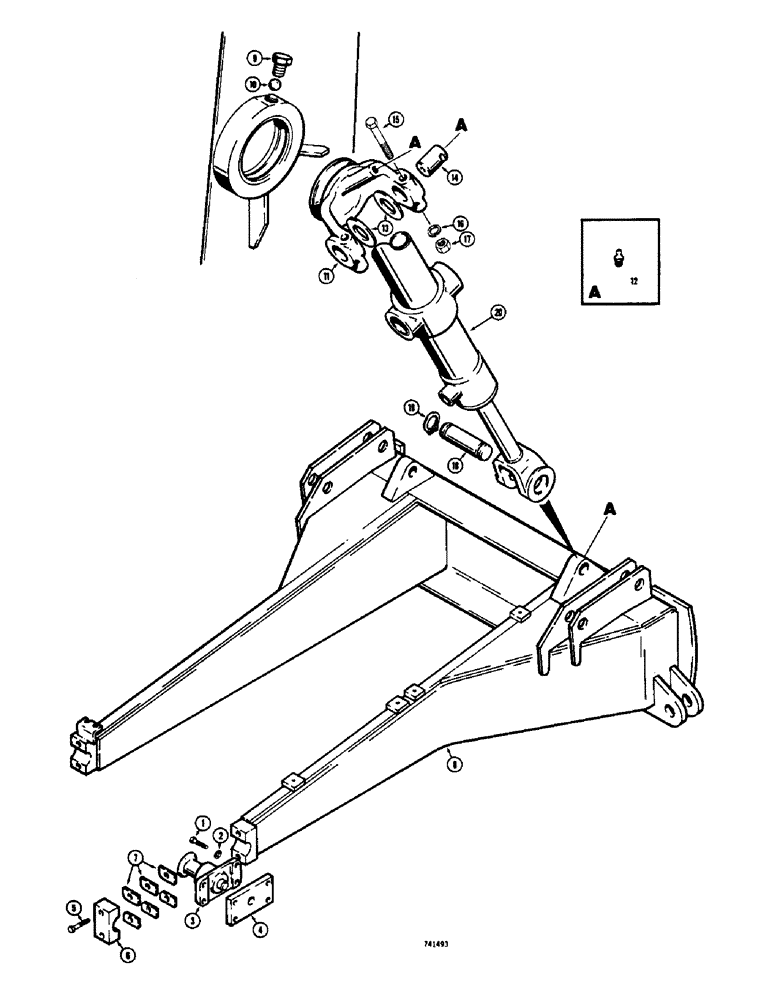

Запчасти Case 475 (137C) - DOZER "C" FRAME AND LIFT PARTS (86) - DOZER

1

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

8шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

D50535

TRUNNION

- push

2шт.

4

R31059

SPACER - trunnion

2шт.

5

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

6

D40376

CAP

- "C" frame

2шт.

7

D34794

SHIM,1/32" Thk

"C" frame mounting 1/32" Thk

1шт.

8

R33236

"C" FRAME - dozer

1шт.

9

D28481

PLUG

- special

2шт.

10

211-7

BALL,1/4" Dia

- steel (3/4" dia.)

38шт.

11

D36155

TRUNNION

- inner race

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

8шт.

13

D24516

WASHER

- thrust

4шт.

14

D24508

PIN,31.74mm OD x 50.8mm L

- trunnion

4шт.

15

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

18

D46467

PIN

- lift cylinder mounting

2шт.

19

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

20

G34344

CYLINDER

- lift (Parts list Fig. 167A)

2шт.
