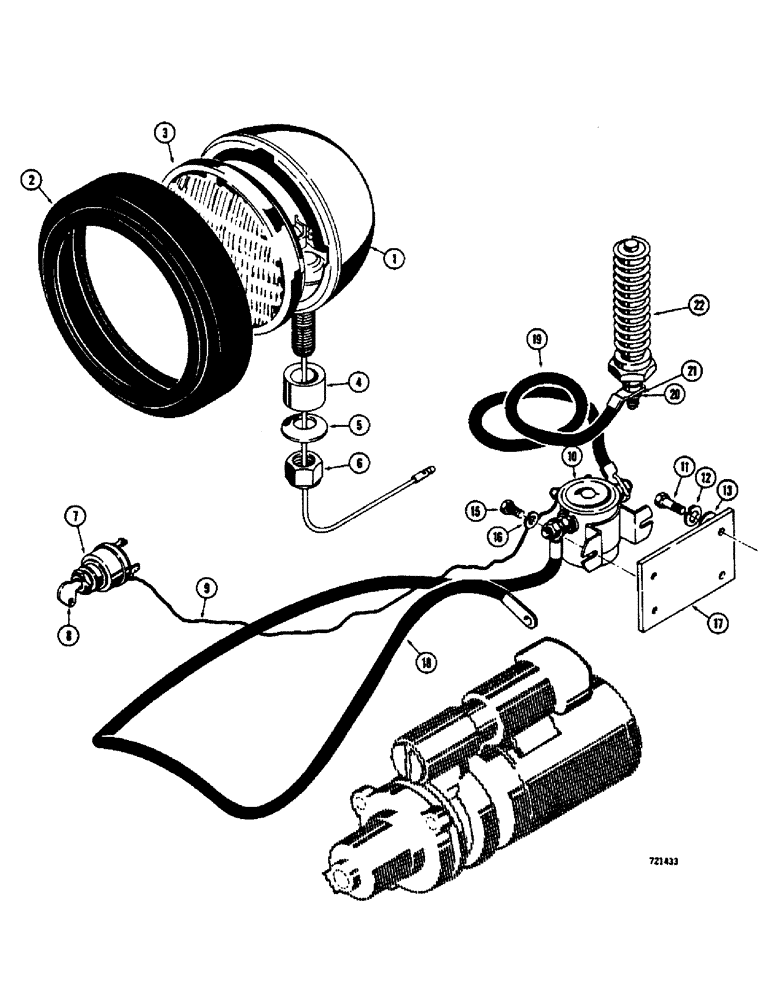

Запчасти Case 475 (058) - LIGHTS (55) - ELECTRICAL SYSTEMS

D34934

LAMP

HEADLIGHT AND TAILLIGHT ASSEMBLY - complete

3шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

2

A25213

RETAINER

- lamp, rubber

1шт.

3

A24572

LAMP

- sealed unit

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

D37049

WASHER

- special

1шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF)

1шт.

D35092

SWITCH

AND KEY - electrical, engine preheater

1шт.

7

NSS

NOT SOLD SEPARAT

SWITCH - electrical, engine preheater

1шт.

8

D36822

KEY

- switch, set of 2, engine preheater

1шт.

9

G13087

CABLE PULLING GRIP

WIRE - switch to solenoid, engine preheater

1шт.

10

A57069

SOLENOID

- switch, engine preheater

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Engine preheater Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

2шт.

13

95-4

WASHER,1/4"

- flat (), engine preheater 1/4"

2шт.

14

RESERVED, engine preheater

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Engine preheater Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

92-5

LOCK WASHER,5/16"

engine preheater 5/16"

2шт.

17

R29726

PLATE - solenoid mounting, engine preheater

1шт.

Ref. 17 another Plate used, not a sub, P/N D47796.

1шт.

18

R29755

CABLE PULLING GRIP

CABLE - solenoid to starter, engine preheater

1шт.

Ref. 18 another Cable used P/N D47797.

1шт.

19

R29755

CABLE PULLING GRIP

CABLE - solenoid to heater, engine preheater

1шт.

Ref. 19 another Cable used, not a sub, P/N A21483.

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Engine Pre-heater

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

1шт.

22

A37775

HEATER

- manifold, engine preheater

1шт.
